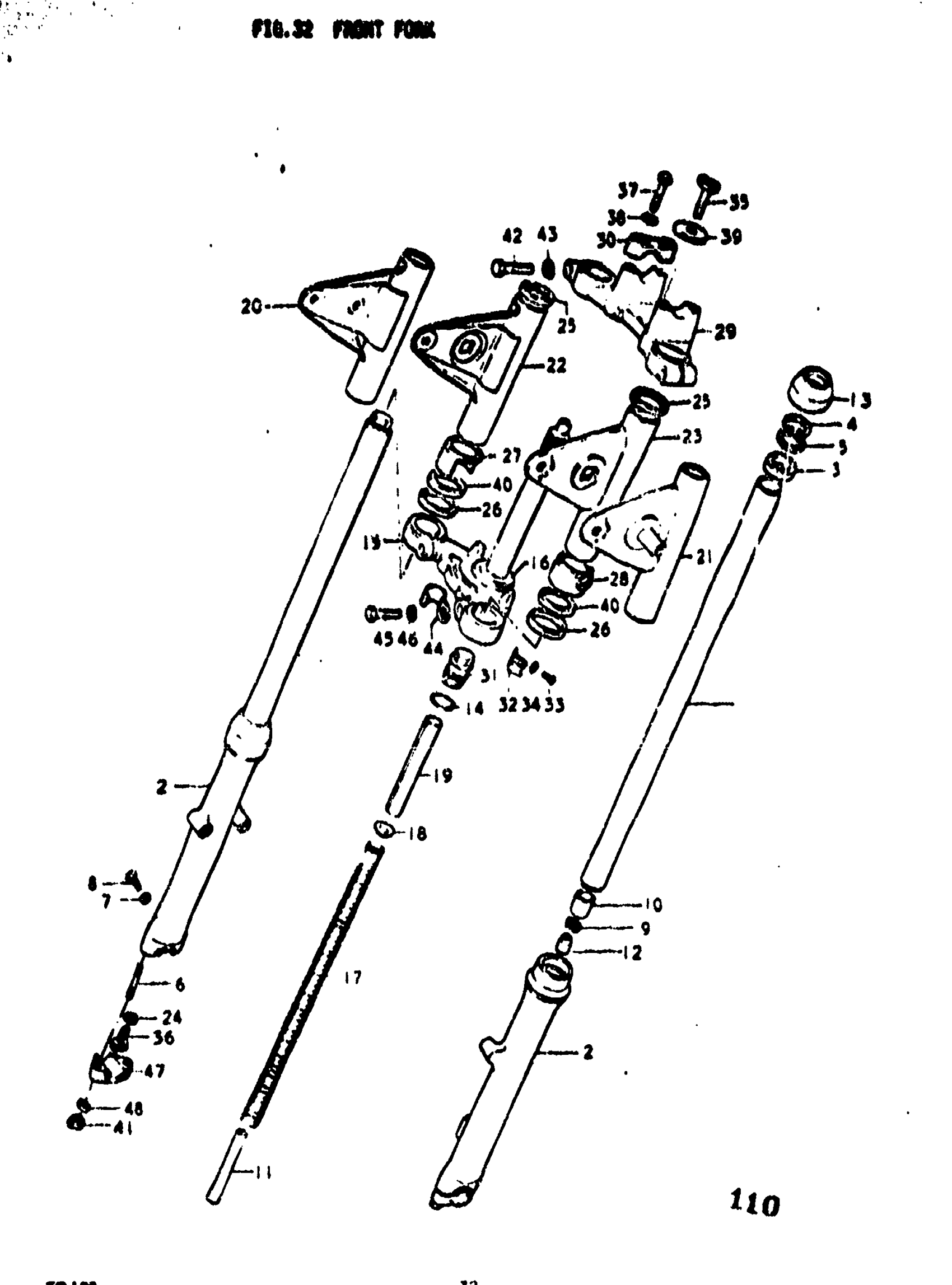

Suzuki TC100 (1977) FRONT FORK Diagram

#

Description
Price

FORK ASSY, FRONT | A

51100-25620-291

Unavailable

FORK ASSY, FRONT | B; Includes Item(s) 1 - 48

51100-25621-291

Unavailable

1

TUBE, INNER

51111-25510

Unavailable

2

TUBE, OUTER

51140-36011

Unavailable

3

OIL SEAL

51153-08011

Unavailable

4

SHAP RING

51156-36010

Unavailable

5

WASHER

51158-36010

Unavailable

6

STUD BOLT (L:30) This part replaces 01421-08308.

09108-08142

$3.18

7

GASKET, DRAIN PLUG

51183-03010

$2.07

8

SCREW This part replaces 02111-04087.

02112-04087

$1.49

9

SNAP RING | A

51118-20311

Unavailable

9

SNAP RING | B

51118-28312

Unavailable

10

PISTON

51112-28311

Unavailable

11

CYLINDER

51146-25620

Unavailable

12

PIECE, OIL LOCK

51195-28311

Unavailable

13

DUST SEAL

51173-25010

$7.19

14

O RING This part replaces 51181-25010.

51181-29401

$3.37

15

NO DESCRIPTION AVAILABLE This part replaces 51410-28013.

51410-36260

Unavailable

16

RACE, STEERING LOWER

51621-33001

$16.25

17

SPRING

51171-25311

Unavailable

18

GUIDE, SPRING

51172-25210

Unavailable

19

SPACER

51176-25511

Unavailable

20

NO DESCRIPTION AVAILABLE | A This part replaces 51530-29630-291.

51500-29820-126

Unavailable

21

NO DESCRIPTION AVAILABLE | A This part replaces 51540-29630-291.

51500-29820-126

Unavailable

22

COVER, FORK RH | B

51530-28620-291

Unavailable

23

COVER, FORK LH | B

51540-28620-291

Unavailable

24

O RING | A This part replaces 51148-34010.

51148-36011

$3.56

24

GASKET | B

51148-36011

$3.56

25

GUIDE, FORK COVER UPPER

51551-20210

Unavailable

26

GUIDE, FORK COVER LOWER

51558-28010

Unavailable

27

COVER, STEM RH

51554-28010

Unavailable

28

COVER, STEM LH

51557-28010

Unavailable

29

HEAD, STEERING STEM This part replaces 51311-28210-019.

51311-29320-291

Unavailable

30

CLAMP, HANDLEBAR UPPER This part replaces 56211-27210-019.

56211-29320-291

$15.51

31

CAP, INNER TUBE

51351-25011

$27.97

32

CLIP

51455-36010

Unavailable

33

SCREW This part replaces 02112-06108.

02112-06107

$1.49

34

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

35

BOLT | 10x33 This part replaces 51351-20010.

51351-29400

$31.22

36

BOLT, CYLINDER

51147-36010

Unavailable

37

BOLT This part replaces 01221-08357.

01204-08357

$2.09

38

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

39

WASHER, STEM HEAD

51356-22012

$6.80

40

CUSiON, FORK COVER LOWER

51553-25210

$4.68

41

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

42

BOLT This part replaces 51451-15113.

01104-10388

$2.72

43

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

44

CLIP

51453-30011

Unavailable

45

BOLT, INNER TUBE

51451-28012

Unavailable

46

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

47

AXLE HOLDER

51132-16511

Unavailable

48

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13
