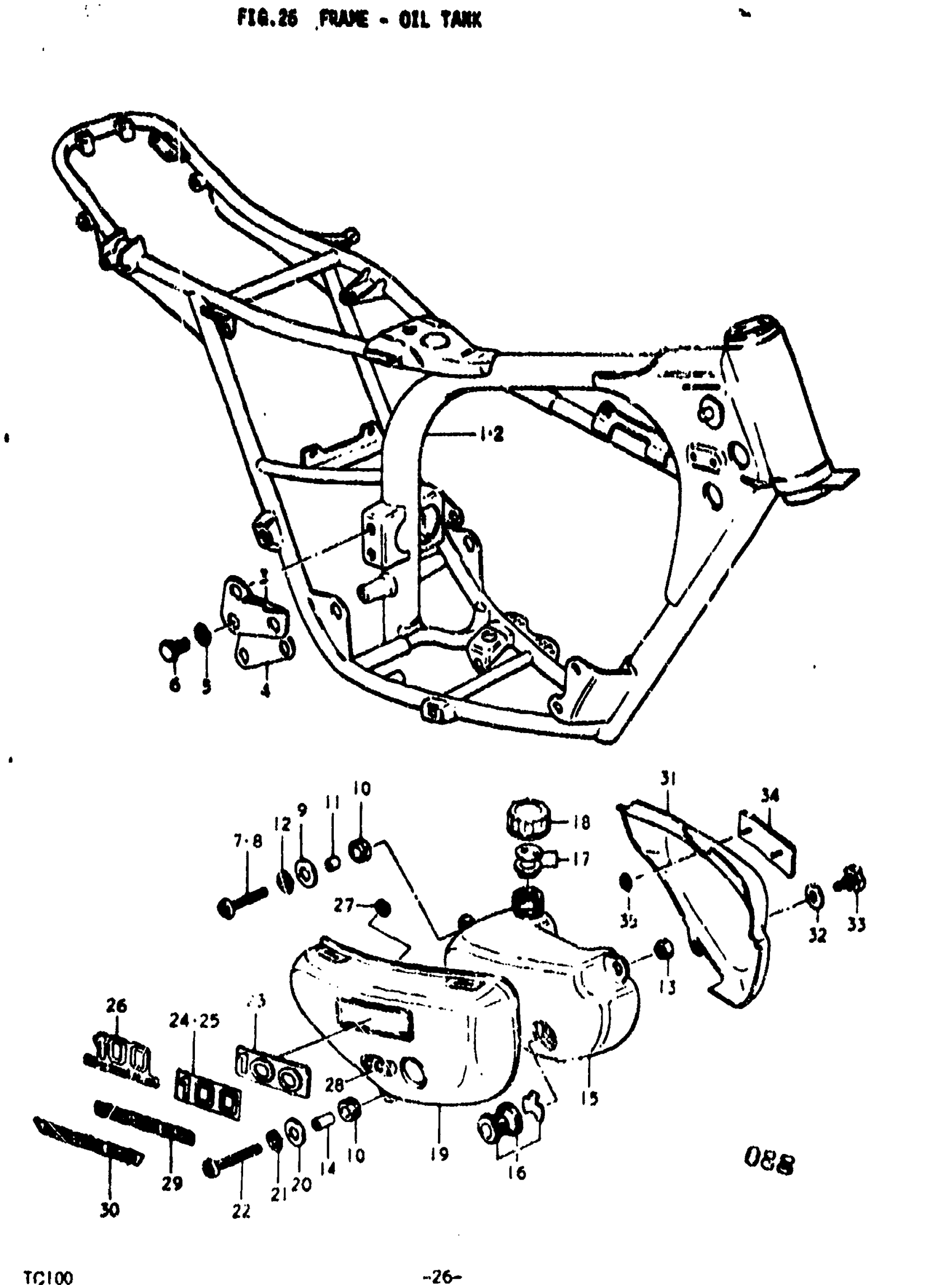

Suzuki TC100 (1977) FRAME - OIL TANK Diagram

#

Description
Price

1

FRAME | K,L,M,A

41100-25300-019

Unavailable

2

FRAME | A This part replaces 41100-25301-019.

41100-25710-019

Unavailable

2

FRAME | B

41100-25710-019

Unavailable

3

PLATE, ENGINE MOUNTING

41591-25300

Unavailable

4

PLATE,ENGINE MOUNTING | L,M,A,B

41591-25000

Unavailable

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

BOLT, CANISTER | K This part replaces 01122-06168.

01500-06167

$1.97

6

PLUG, DRAIN | L,M,A,B This part replaces 01122-08168.

01500-0816B

$2.50

7

SCREW | K,L,M,BA This part replaces 02112-06208.

02112-06207

$1.78

8

SCREW | A This part replaces 02112-06258.

02112-06257

$1.78

9

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

10

CUSHION This part replaces 09320-10008.

09320-10075

$1.93

11

SPACER (6.5X10X10) | 6.8x10x10 This part replaces 09180-06030.

09180-06310

$1.91

12

LOCK WASHER | K,L,M,A This part replaces 08321-21068.

08321-01067

$2.13

13

.NUT | A This part replaces 08311-31068.

08310-00067

$2.13

14

SPACER, IG COOL (6.4X10X18) | 6.8x10x18 This part replaces 09180-06026.

09180-06195

$3.68

15

TANK, OIL

44611-25300

Unavailable

16

OIL LEVEL INSPE | K; TO 44600-31830 This part replaces 44640-31807.

44600-31832

$11.07

16

OIL LEVEL INSPE | L,M,A,B This part replaces 44600-31830.

44600-31832

$11.07

17

GASKET SET | K,L; TO 44600-35820 This part replaces 44660-33808.

44600-30833

$5.42

17

GASKET SET | M,A;TO 44600-35821 This part replaces 44600-35820.

44600-30833

$5.42

17

GASKET SET | B This part replaces 44600-35821.

44600-30833

$5.42

18

CAP, OIL TANK | K,L This part replaces 44651-05000.

44651-05003

$5.05

18

CAP, OIL TANK | M,A,B This part replaces 44651-05001.

44651-05003

$5.05

19

NO DESCRIPTION AVAILABLE | L This part replaces 47111-25300-215.

47111-25300-019

Unavailable

19

NO DESCRIPTION AVAILABLE | K This part replaces 47111-25300-712.

47111-25300-019

Unavailable

19

NO DESCRIPTION AVAILABLE | M This part replaces 47111-25300-163.

47111-25300-019

Unavailable

19

COVER, FRAME RH | A

47111-25610-737

Unavailable

19

COVER, FRAME RH | B

47111-25610-00N

Unavailable

20

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

21

LOCK WASHER

03321-21068

Unavailable

22

SCREW

02112-06307

$1.97

23

EMBLEM, COVER RH | K

68141-25400

Unavailable

24

EMBLEM, 100 | L

68131-25600-763

Unavailable

24

EMBLEM, 100 | M

68131-25600-991

Unavailable

25

EMBLEM, 100 | A

68131-25620-60K

Unavailable

26

EMBLEM"100" | B This part replaces 68131-25640-538.

68131-25640

Unavailable

27

NUT | K This part replaces 09148-03004.

09148-03011

$1.96

28

EMBLEM, CCI

68171-26000

$3.59

29

CABLE, COMPANY NAME | L,M

68363-26200

Unavailable

30

CABLE, COMPANY NAME | A

68363-26300

Unavailable

31

NO DESCRIPTION AVAILABLE | L This part replaces 47211-25300-215.

47211-25300-019

Unavailable

31

COVER, FRAME LH | K

47211-25300-712

Unavailable

31

NO DESCRIPTION AVAILABLE | M This part replaces 47211-25300-163.

47211-25300-019

Unavailable

31

NO DESCRIPTION AVAILABLE | A This part replaces 47211-25610-737.

47211-25610-019

Unavailable

31

NO DESCRIPTION AVAILABLE | B This part replaces 47211-25610-00N.

47211-25610-019

Unavailable

32

STOP, FRAME COVER KNOB

09152-05101

Unavailable

33

KNOB, FRAME COVER LH | K,L,M,A

47130-04001

Unavailable

34

EMBLEM | K

68141-25400

Unavailable

35

NUT | K This part replaces 09148-03004.

09148-03011

$1.96
