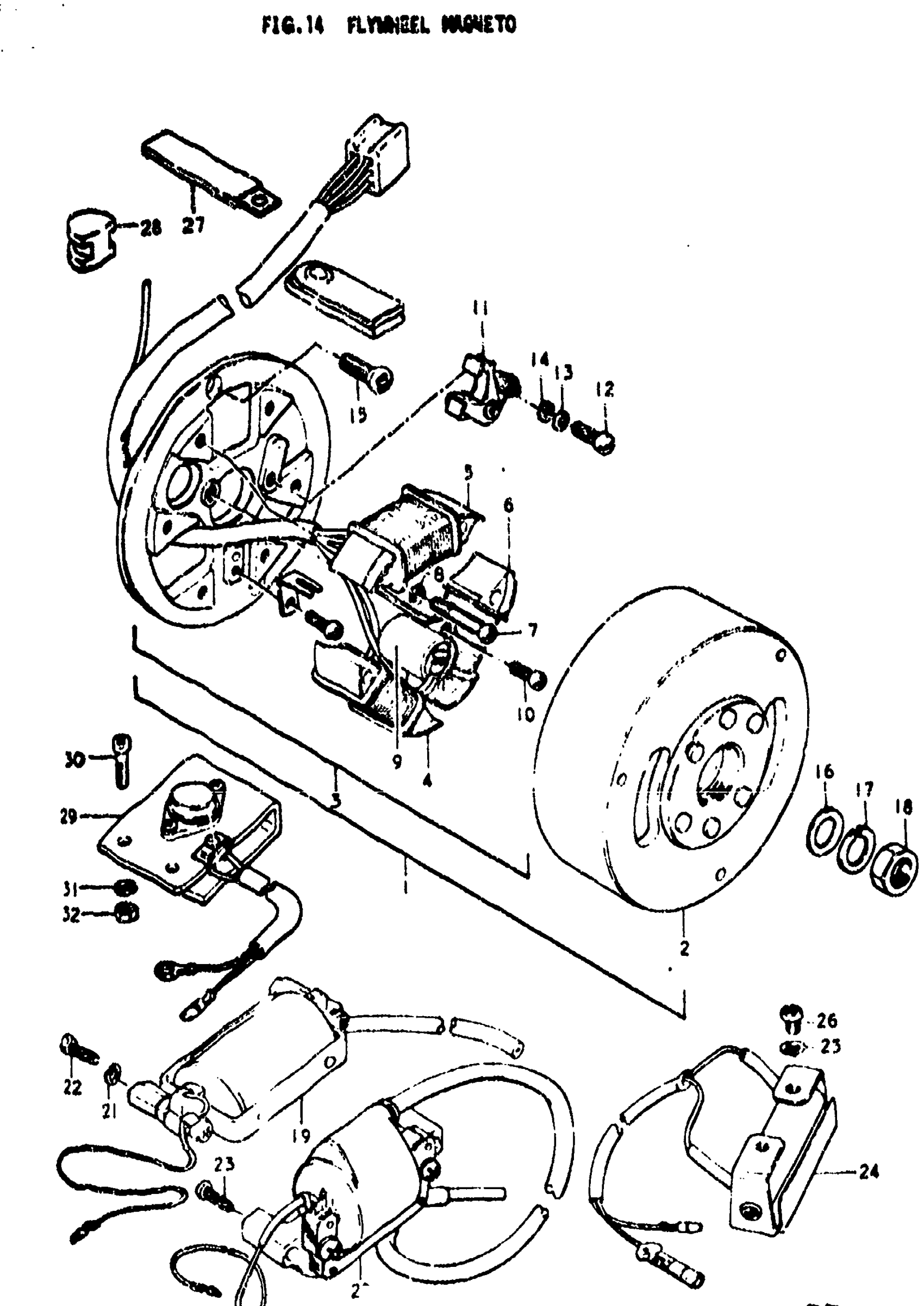

Suzuki TC100 (1977) FLYWHEEL MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | K,L,M This part replaces 32100-25691.

32101-25691

Unavailable

1

MAGNETO ASSY | A,B; Includes Item(s) 2 - 14

32100-25692

Unavailable

2

ROTOR | K,L,M

32102-25691

Unavailable

2

ROTOR | A,B

32102-25693

Unavailable

3

STATOR ASSY | K,L,M

32101-25691

Unavailable

3

STATOR ASSY | A,B

32101-25692

Unavailable

4

COIL, PRIMARY

32140-25691

Unavailable

5

COIL, LIGHTING A | K,L,M

32130-25691

Unavailable

5

COIL, LIGHTING A | A,B

32130-25692

Unavailable

6

COIL, LIGHTING B | K,L,M

32120-25691

Unavailable

6

COIL, LIGHTING B | A,B

32120-25692

Unavailable

7

SCREW (4X30) This part replaces 02111-04308.

09125-04023

$2.30

8

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

9

CONDENSER

32341-25690

Unavailable

10

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

11

POINT ASSY,CONT This part replaces 32240-12020.

32240-07610

Unavailable

12

SCREW

02311-04128

Unavailable

13

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

14

WASHER This part replaces 08322-21048.

08322-01047

$1.86

15

SCREW This part replaces 02122-06168.

02122-06167

$1.49

16

WASHER This part replaces 08322-11088.

08322-01087

$2.13

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

18

NUT This part replaces 09140-10003.

09140-10041

$2.38

19

COIL ASSY IGNIT | MADE BY NIPPON DENSO This part replaces 33410-27110.

33410-27111

Unavailable

20

IGNITION COIL A | B; MADE BY KOKUSAN This part replaces 33410-22220.

33410-22221

Unavailable

21

LOCK WASHER | K,L,M This part replaces 08321-21056.

08321-0105A

$1.84

22

BOLT, RUBBER STOP | K,L,M This part replaces 01111-05128.

01500-05127

$2.10

23

SCREW | A,B This part replaces 02111-05127.

02112-05127

$1.97

24

RESISTER ASSY, MAGNETO | K,L,M; OPT

36500-25690

Unavailable

25

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84

26

SCREW | K,L,M; OPT This part replaces 02111-05087.

02112-05087

$1.49

27

CLAMP | A This part replaces 09403-00069.

09404-06037

Unavailable

28

CAP | A; TO 09259-04001

09259-04002

Unavailable

28

CAP | B

09259-04001

Unavailable

29

REGULATOR, VOLTAGE | A,B This part replaces 32500-27600.

32500-25600

Unavailable

30

SCREW | A,B This part replaces 02112-06128.

02112-06127

$1.84

31

WASHER | A,B This part replaces 08322-21068.

08322-01067

$2.13

32

.NUT | A,B This part replaces 08311-11068.

08310-00067

$2.13
