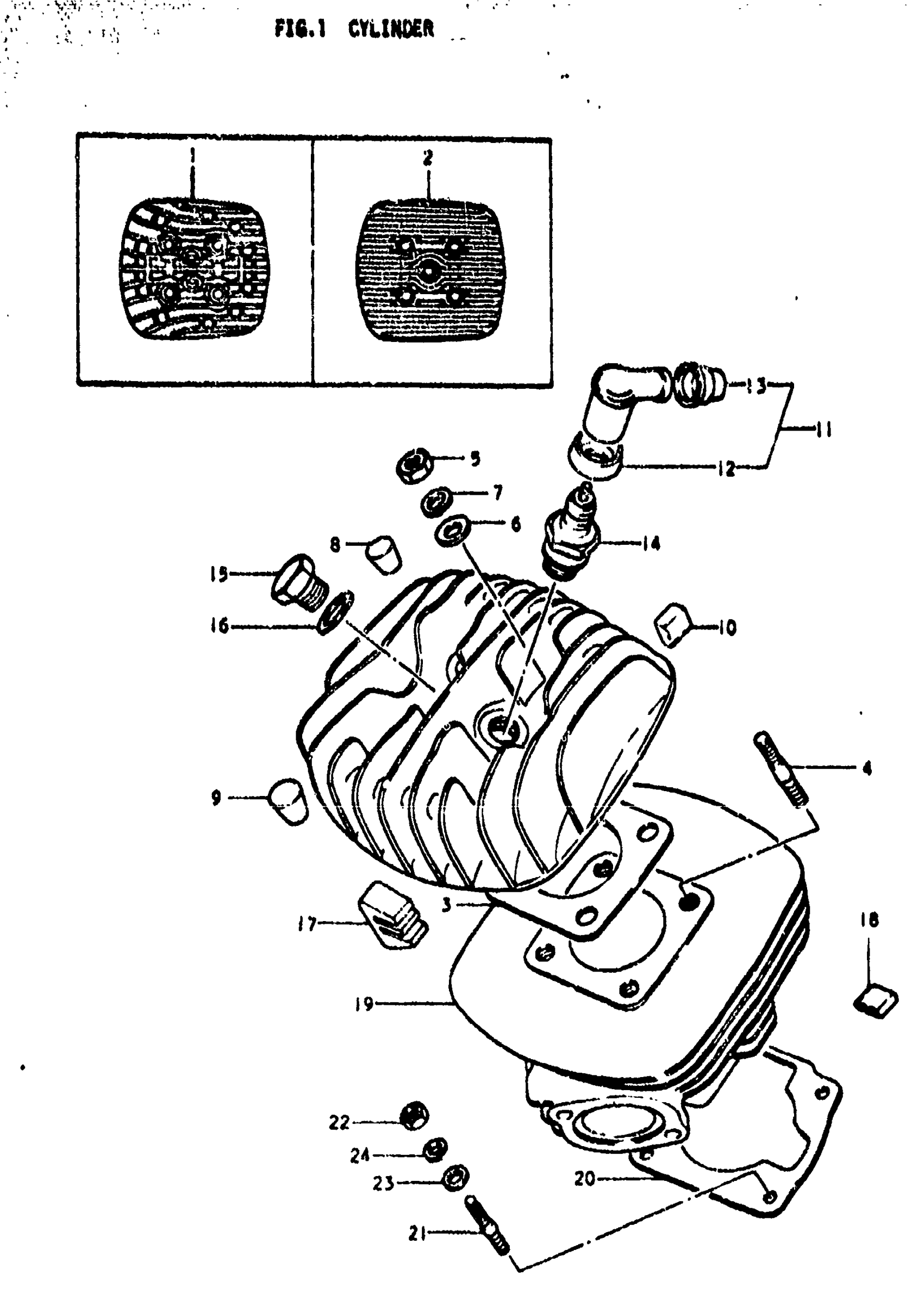

Suzuki TC100 (1977) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD | K,L,M

11111-25600

Unavailable

2

CYLINDER HEAD | A,B

11111-39610

Unavailable

3

GASKET,CYLINDER This part replaces 11141-36100.

11141-361V0

Unavailable

4

STUD BOLT This part replaces 01421-10458.

01421-10457

$3.91

5

NUT This part replaces 08312-12108.

08310-00107

$2.19

6

WASHER This part replaces 08322-11108.

08322-01107

$2.15

7

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

8

PAD, CYLINDER HEAD RUBBER | K,L; 15

11151-16400

Unavailable

8

PAD, CYLINDER HEAD | M,A; 13.5 This part replaces 11151-25000.

11252-25000

$4.52

9

PAD, CYLINDER HEAD RUBBER | K,L; 17M,A; 17

11151-32000

Unavailable

10

PAD, CYLINDER HEAD RUBBER | B

11252-25000

$4.52

11

CAP SET, SPARK PLUG | K,L; TO 33500-69810

33503-10801

Unavailable

11

CAP SET,SPARK P | M,A,B; Includes Item(s) 12 - 13 This part replaces 33500-69810.

33500-69811

$22.48

12

SEAL, CAP | K,L; TO 33541-69010

33541-22000

Unavailable

12

SEAL, CAP | M,A,B

33541-69010

$4.37

13

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

14

SPARK PLUG B8HS | NGK, B-BHS This part replaces 09482-00057.

09482-00198

$2.93

14

SPAKR PLUG | ND, W24FS

09482-00058

Unavailable

15

PLUG, DRAIN | K,L,M This part replaces 09247-14007.

09247-14025

$2.79

16

GASKET, CYLINDER HEAD PLUG | K,L,M; 15.7x19.5x2

09168-14004

$1.83

17

RUBBER PAD CYLI | K,L,M This part replaces 11251-28000.

11251-28001

$5.24

18

PAD, CYLINDER RUBBER | A,B

11252-25000

$4.52

19

CYLINDER | K; TO 11210-25600

11210-25990

Unavailable

19

CYLINDER | L,M

11210-25600

Unavailable

19

CYLINDER | A,B

11210-25610

Unavailable

20

GASKET,CYLINDER | K,L; TO 11241-25601 This part replaces 11241-25600.

11241-25602

Unavailable

20

GASKET,CYLINDER | M,A,B This part replaces 11241-25601.

11241-25602

Unavailable

21

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

22

NUT This part replaces 08312-12088.

08310-00087

$2.13

23

WASHER This part replaces 08322-11088.

08322-01087

$2.13

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13
