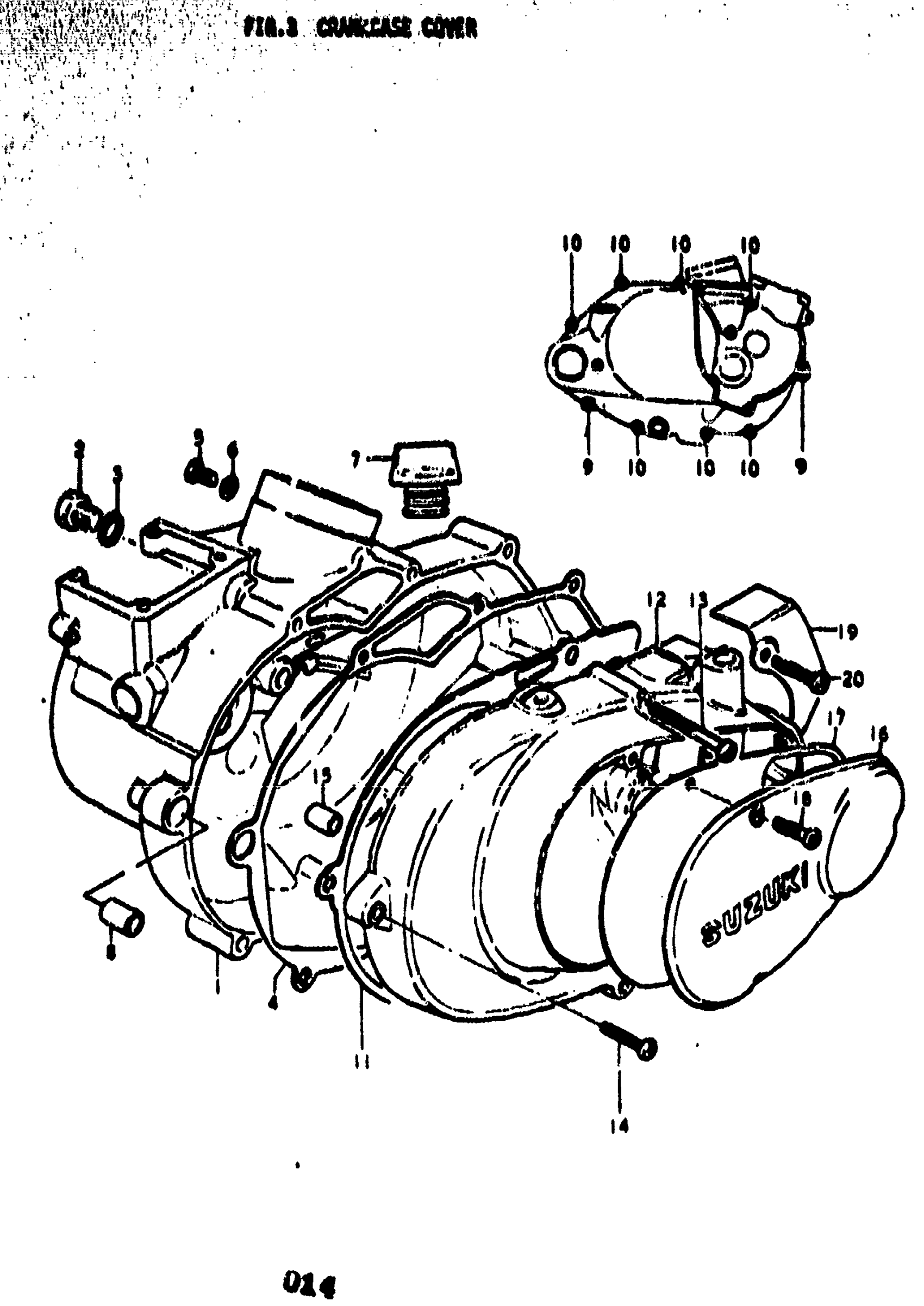

Suzuki TC100 (1977) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | K; WITHOUT INSTER

11300-25840

Unavailable

1

COVER, CLUTCH | L,M; LUSTROUS

11341-25003

Unavailable

1

COVER, CLUTCH | A,B; Includes Item(s) 2 - 3

11341-25500

Unavailable

2

PLUG (MAGNETO) | K This part replaces 09247-14001.

09247-14002

$5.24

3

GASKET | K; 15.7x19.5x2

09168-14004

$1.83

4

GASKET,CLUTCH C This part replaces 11482-25000.

11482-25001

Unavailable

5

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

6

GASKET, OIL LEVEL PLUG | 6.2x11x1

09168-06001

$1.49

7

PLUG | K,B; TO 02959-19002 This part replaces 09259-19001.

09259-19005

$2.98

7

PLUG | L,M,A This part replaces 09259-19002.

09259-19005

$2.98

8

PIN This part replaces 09206-13001.

04211-13189

$2.19

9

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

10

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

11

NO DESCRIPTION AVAILABLE | K,L,M This part replaces 11483-25000.

11483-25010

Unavailable

11

NO DESCRIPTION AVAILABLE | A,B This part replaces 11483-25001.

11483-25010

Unavailable

12

COVER, MAGNETO | K; WITHOUT LUSTER This part replaces 11351-25100.

11351-25101

Unavailable

12

COVER, MAGNETO | K,L,M; LUSTROUS

11351-25101

Unavailable

12

COVER, MAGNETO | A,B

11351-25000

Unavailable

13

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

14

SCREW This part replaces 02112-06258.

02112-06257

$1.78

15

PIN, DOWEL | K,L

04211-09129

$1.65

16

CAP, MAGNETO INSPECTION | K; WITHOUT LUSTER

11381-25100

Unavailable

16

CAP, MAGNETO INSPECTION | K,L,M; LUSTROUS

11381-25101

Unavailable

16

CAP, MAGNETO INSPECTION

11381-25400

Unavailable

17

GASKET, MAGNETO INSPECTION

11491-25100

Unavailable

18

SCREW This part replaces 02112-05168.

02112-05167

$1.97

19

COVER, ENGINE SPROCKET | K,L,M; LUSTROUS

11360-25101

Unavailable

19

COVER, ENGINE SPROCKET | K; WITHOUT LUSTER This part replaces 11360-25100.

11360-25101

Unavailable

19

COVER, ENGINE SPROCKET | A,B

11360-25400

Unavailable

20

SCREW This part replaces 02112-06128.

02112-06127

$1.84
