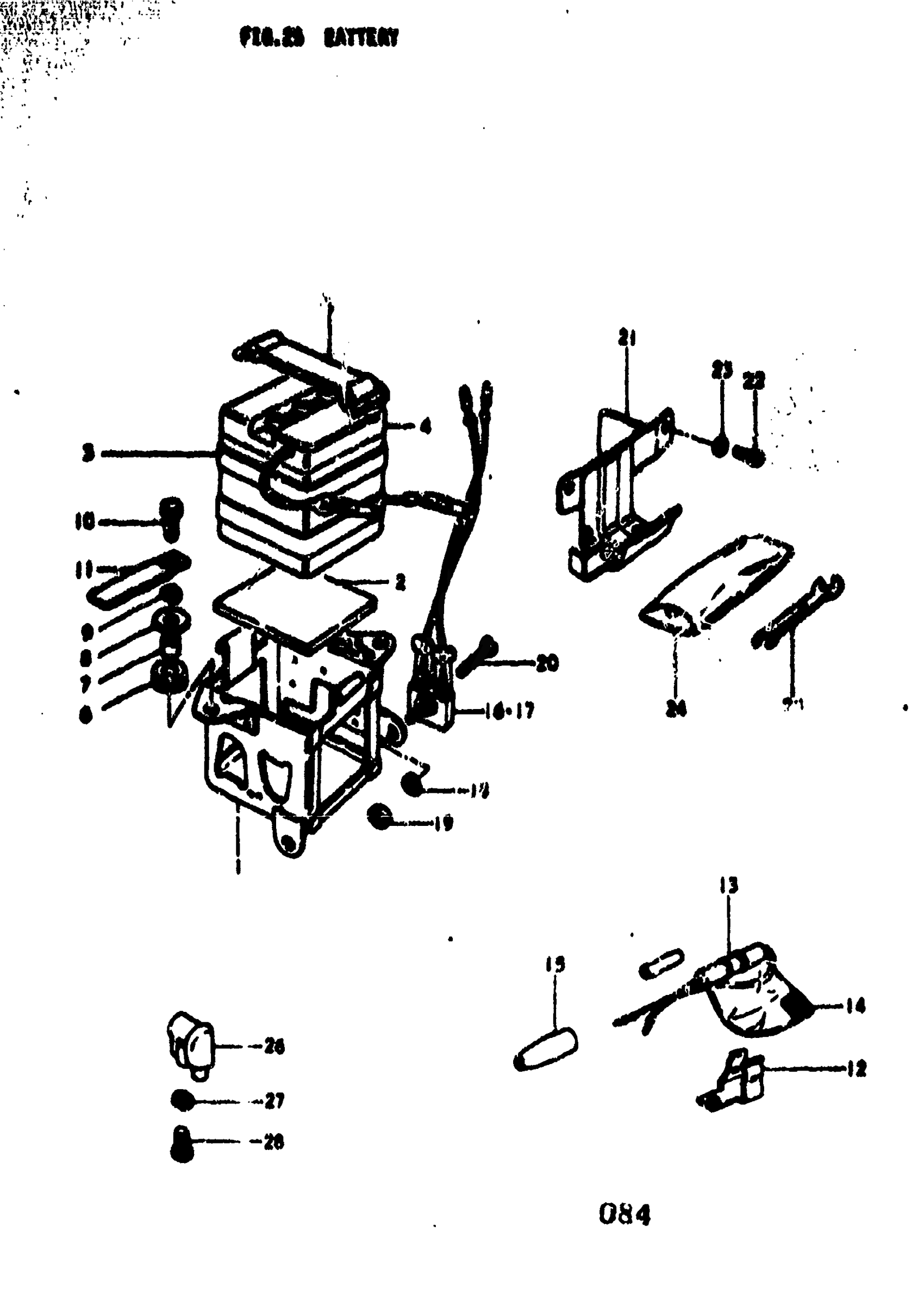

Suzuki TC100 (1977) BATTERY Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 41540-25003.

41540-25004

Unavailable

2

CUSHION, BATTERY

33651-23040

Unavailable

3

PROTECTOR, BATTERY

33651-30000

Unavailable

4

SAITON | B6V, 4AN

33610-03010

Unavailable

5

CUSHION, BETTERY HOLDER

09462-00001

$4.56

6

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

7

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

8

WASHER | 6.5x20x1.2

09140-06027

$2.72

9

LOCK WASHER

08821-21068

Unavailable

10

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

11

CLAMP | KL This part replaces 09403-00069.

09404-06037

Unavailable

11

CLAMP | MM,A This part replaces 09404-06402.

09404-06039

$1.74

12

HOLDER, FUSE OISA

36791-25001

Unavailable

13

FUSE CASE ASSY | Includes Item(s) 14 This part replaces 36740-15010.

36740-15011

$9.38

14

FUSE | 15A

09481-15001

$2.06

15

BOOT, USE LEAD AIRE | L,M,A,B

09287-10001

Unavailable

16

DIODE | K,L; TO 32800-19061 This part replaces 32800-19060.

32800-16A00

$23.07

17

DIODE | M,A; TO 32800-19062 This part replaces 32800-19061.

32800-16A00

$23.07

17

DIODE | B This part replaces 32800-19062.

32800-16A00

$23.07

18

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84

19

NUT This part replaces 08311-11058.

08310-00057

$1.84

20

SCREW | M,A,B This part replaces 02111-05207.

02112-05207

$1.97

21

HOLDER, TOOL

41550-25300

Unavailable

22

SCREW This part replaces 02112-06128.

02112-06127

$1.84

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

TOOL ASSY This part replaces 09800-00108.

09800-21028

$33.02

27

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

25

WRENCH, POINT | K

09930-20111

Unavailable

26

LOCK SET,STEARING

50000-23837

Unavailable

28

SCREW This part replaces 02111-05127.

02112-05127

$1.97
