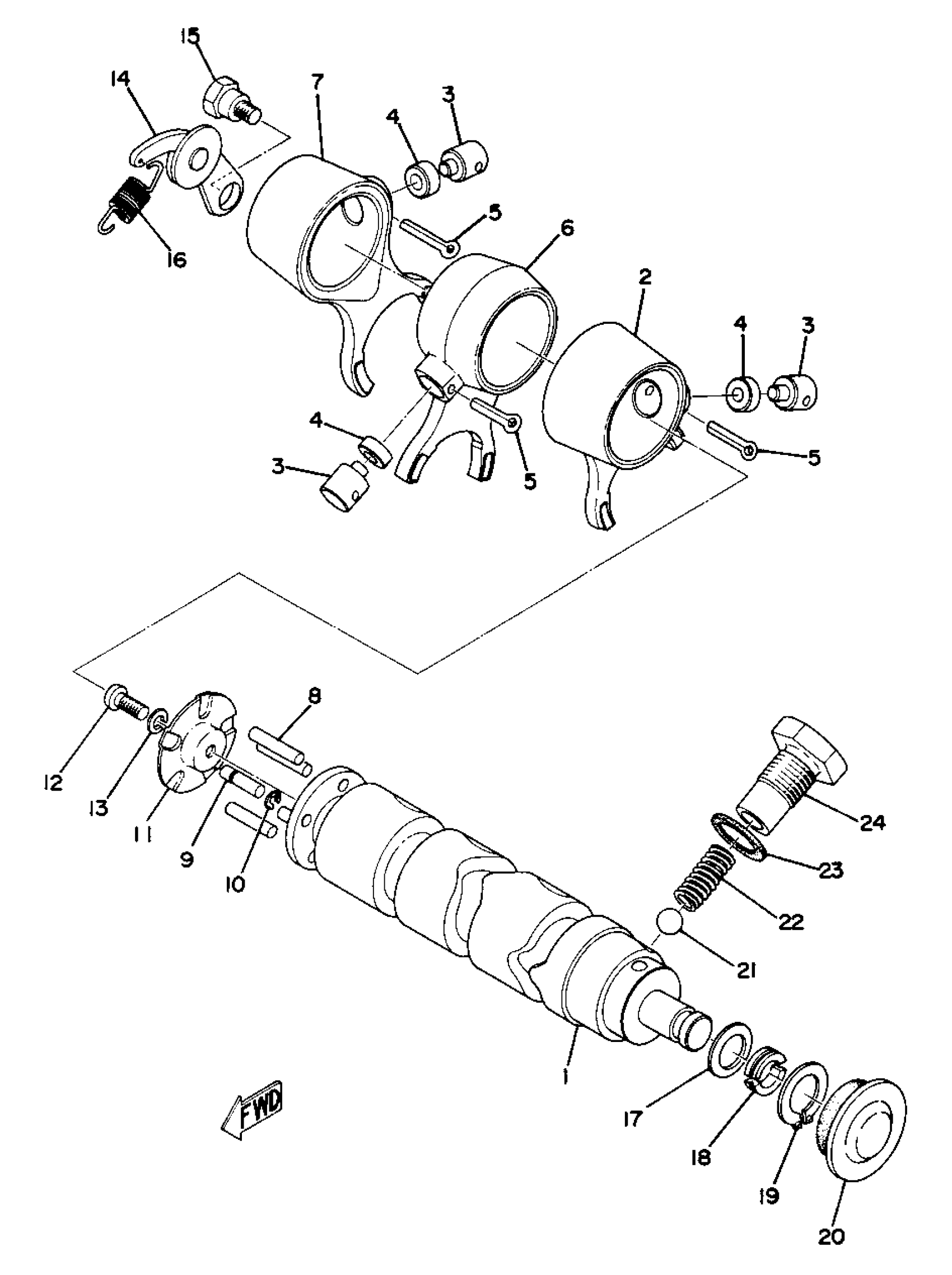

Yamaha TA125A (TA125) 400 1974 SHIFTER 1 Diagram

#

Description
Price

1

CAM, SHIFT

(183-18541-02-00)

Unavailable

2

FORK, SHIFT 1

(183-18511-00-00)

Unavailable

3

PIN, STRAIGHT

(90250-10020-00)

Unavailable

4

ROLLER, CAM FOLWR

(164-18551-00-00)

Unavailable

5

PIN, COTTER

91490-25020-00

$3.19

6

FORK, SHIFT 2

(183-18512-00-00)

Unavailable

7

FORK, SHIFT 3

(183-18513-00-00)

Unavailable

8

PIN,DOWEL (620)

93604-22050-00

$8.49

9

. PIN, SPEC''L SHAPE (174-18544-00)

90249-04039-00

Unavailable

10

. CIRCLIP, E-TYPE

93430-03014-00

Unavailable

11

PLATE, SIDE

164-18561-00-00

$5.49

12

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

13

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

14

STOPPER LEVER ASSY

132-18140-01-00

$15.49

15

BOLT

90109-06239-00

$7.49

16

SPRING, TENSION (260)

90506-09112-00

Unavailable

17

WASHER PLATE 164185720000

90201-12166-00

Unavailable

18

HOLDER, SHIFT CAM

307-18571-00-00

Unavailable

19

CIRCLIP

93440-15012-00

Unavailable

20

PLUG, BLIND

(307-18533-00-00)

Unavailable

21

BALL

93505-16006-00

Unavailable

22

SPRING, COMPRESION

90501-12750-00

Unavailable

23

WASHER, PROTECTOR

4F4-14766-00-00

Unavailable

24

BOLT

90109-14385-00

Unavailable
