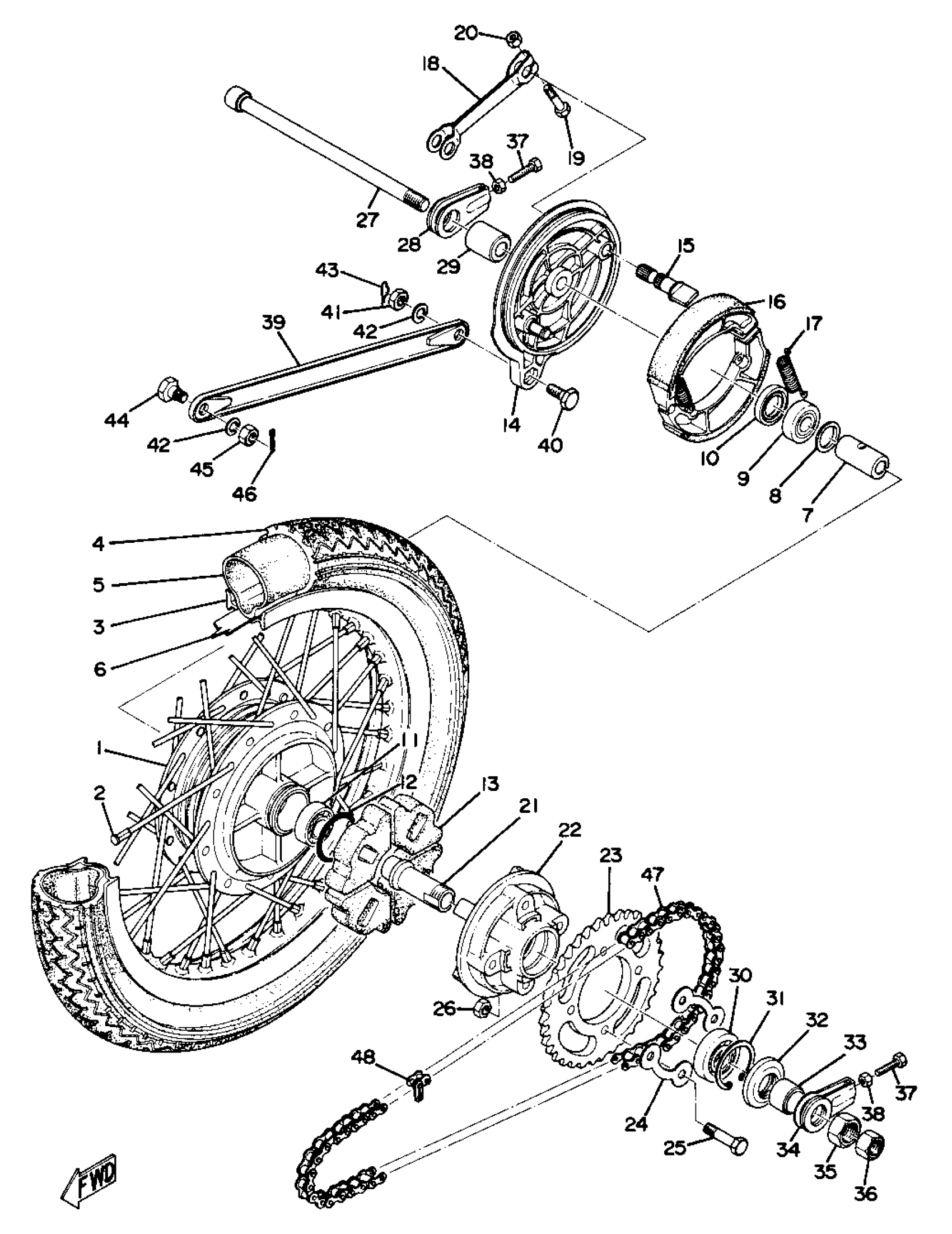

Yamaha TA125A (TA125) 400 1974 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

183-25311-00-00

Unavailable

2

SPOKE SET, REAR

(400-25304-00-00)

Unavailable

3

RIM 1.60X18

(94416-18018-00)

Unavailable

4

250X18 YOKOHAMA

(94125-18111-00)

Unavailable

5

TUBE (5H5)

94225-18194-00

$36.99

6

BAND, RIM (2J4)

94340-18086-00

$17.99

7

SPACER 136253170000

90560-15136-00

Unavailable

8

FLANGE, SPACER

146-25116-00-00

$8.99

9

BRG, R-B (7H4)

93306-20211-00

$25.99

10

OIL SEAL (22X35X5)

93104-22018-00

$11.49

11

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

12

O-RING (183)

93210-42101-00

Unavailable

13

DAMPER, CLUTCH

304-25364-01-00

$27.99

14

BRAKE SHOE PLT ASSEMBLY

(507-25320-10-00)

Unavailable

15

CAMSHAFT

(183-25351-00-00)

Unavailable

16

BRAKE SHOE SET-2PCS

183-W2536-00-00

Unavailable

17

SPRING (5T9)

90506-17328-00

Unavailable

18

LEVER, CAMSHAFT

(400-25355-00-00)

Unavailable

19

BOLT, HEXAGON

97017-06025-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

21

SHAFT, SPROCKET

183-25387-00-00

Unavailable

22

CLUTCH, HUB

58K-25366-00-00

Unavailable

23

SPROCKET, DRIVN 34T

(183-25434-10-33)

Unavailable

23

SPROCKET, DRIVN 35TWHEEL (35T)

183-25435-39-00

Unavailable

23

SPROCKET, DRVN 36T (36T) (183-25436-10-33)

183-25436-39-00

Unavailable

23

SPROCKET, DRVN 37T

183-25437-20-00

Unavailable

23

SPROCKET, DRIVN 38T

183-25438-10-33

Unavailable

24

WASHER

4AW-25412-00-00

Unavailable

25

BOLT(1AJ)

90101-08672-00

Unavailable

26

NUT(6L2)

95333-08600-00

Unavailable

27

AXLE, WHEEL

382-25381-00-00

Unavailable

28

PULLER, CHAIN

248-25388-00-00

Unavailable

29

COLLAR

90387-15425-00

Unavailable

30

BEARING(3BN)

93306-00438-00

Unavailable

31

CIRCLIP(5U8)

99009-42500-00

Unavailable

32

SEAL,OIL

93106-26005-00

Unavailable

33

COLLAR 183253860000

90387-20165-00

Unavailable

34

PULLER, CHAIN 1

214-25388-00-00

Unavailable

35

NUT, HEXAGON

90170-20167-00

Unavailable

36

NUT, DRILLED

(95301-14200-00)

Unavailable

37

BOLT

90101-08060-00

Unavailable

38

. NUT

95380-08700-00

Unavailable

39

BAR, TENSION

(400-25371-00-00)

Unavailable

40

BOLT 1092537300

90109-08063-00

Unavailable

41

. NUT

95380-08700-00

Unavailable

42

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

43

CLIP (156-83525-00)

90468-10050-00

Unavailable

44

BOLT (183-25378-00)

90109-08368-00

Unavailable

45

NUT(6L2)

95333-08600-00

Unavailable

46

PIN, COTTER

91490-20025-00

Unavailable

47

UNAVAILABLE IN PRICE BOOK

94514-28110-00

Unavailable

48

CHAIN JOINT

(94680-06031-00)

Unavailable
