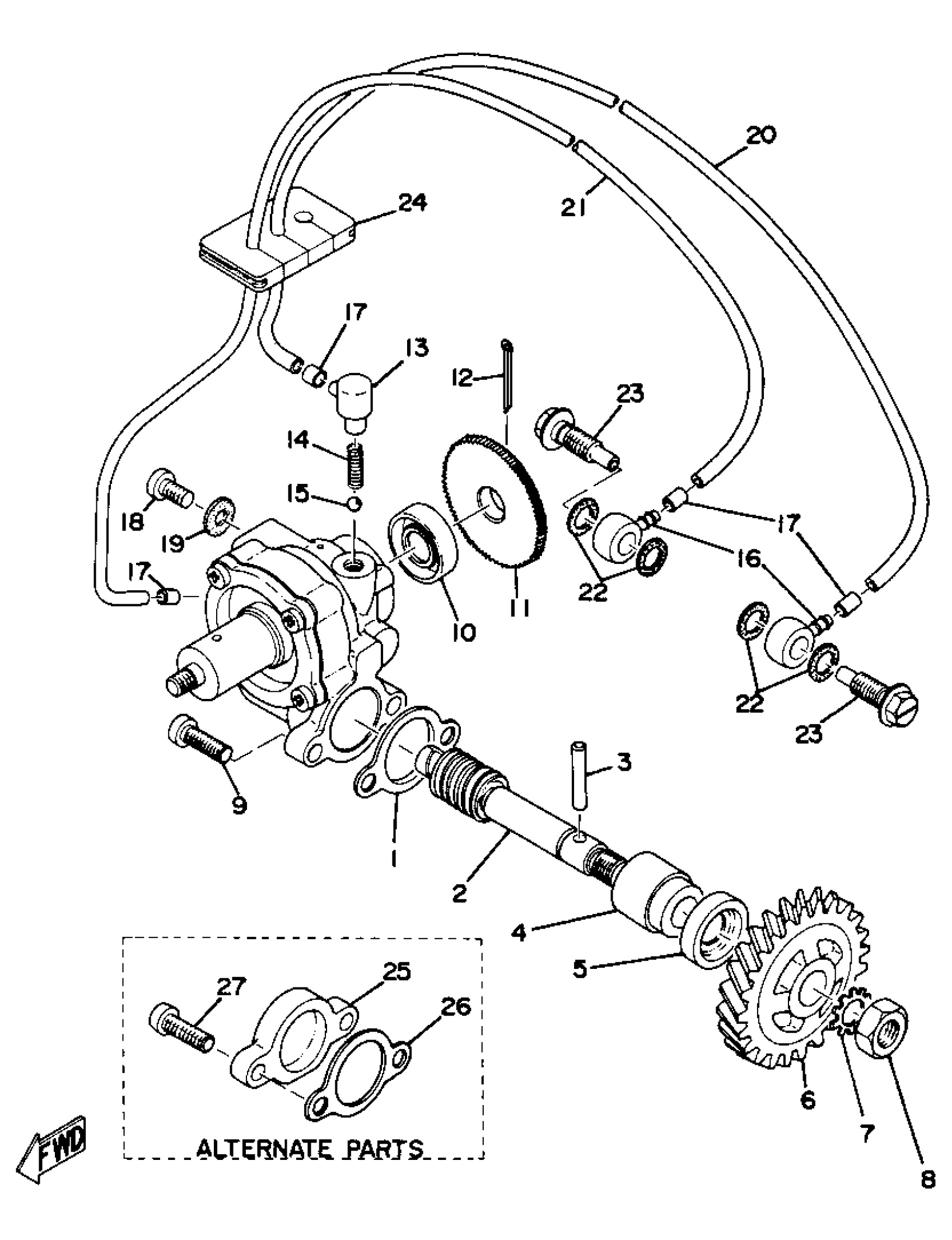

Yamaha TA125A (TA125) 400 1974 OIL PUMP Diagram

#

Description
Price

1

GASKET, PUMP CASE

126-13116-01-00

$6.46

1

OIL PUMP ASSEMBLY

(400-13101-00-00)

Unavailable

2

SHAFT, WORM

(174-13175-00-00)

Unavailable

3

PIN,DOWEL (137)

93603-22028-00

$2.04

4

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

5

OIL SEAL (10X22X7-137)

93101-10002-00

$6.22

6

GEAR, PUMP DRIVE

(132-13178-01-00)

Unavailable

7

WASHER (688)

92990-08400-00

$3.21

8

. NUT

95380-08700-00

$3.05

9

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.09

10

OIL SEAL (J10)

93101-10090-00

$5.75

11

PLATE, STARTER

(137-13128-00-00)

Unavailable

12

. PIN, COTTER

91401-12018-00

Unavailable

13

NOZZLE

353-13552-01-00

$8.14

14

SPRING (278-13169-00)

90501-02018-00

$7.18

15

BALL

93505-32002-00

Unavailable

16

BANJO, DELIVERY PIPE

214-13162-01-00

Unavailable

18

SCREW, BIND

98980-04008-00

$3.05

19

GASKET 137131870000

90430-04004-00

Unavailable

20

HOSE (L700)

90445-05M07-00

$5.27

21

HOSE (L700)

90445-05M07-00

$5.27

22

GASKET(3FP)

90430-06224-00

Unavailable

23

BOLT, UNION

90401-06011-00

Unavailable

24

HOLDER, OIL PIPE

(293-13174-00-00)

Unavailable

25

COVER, PUMP UNIT

161-15426-00-00

Unavailable

26

GASKET, PUMP CASE

126-13116-01-00

$6.46

27

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.09
