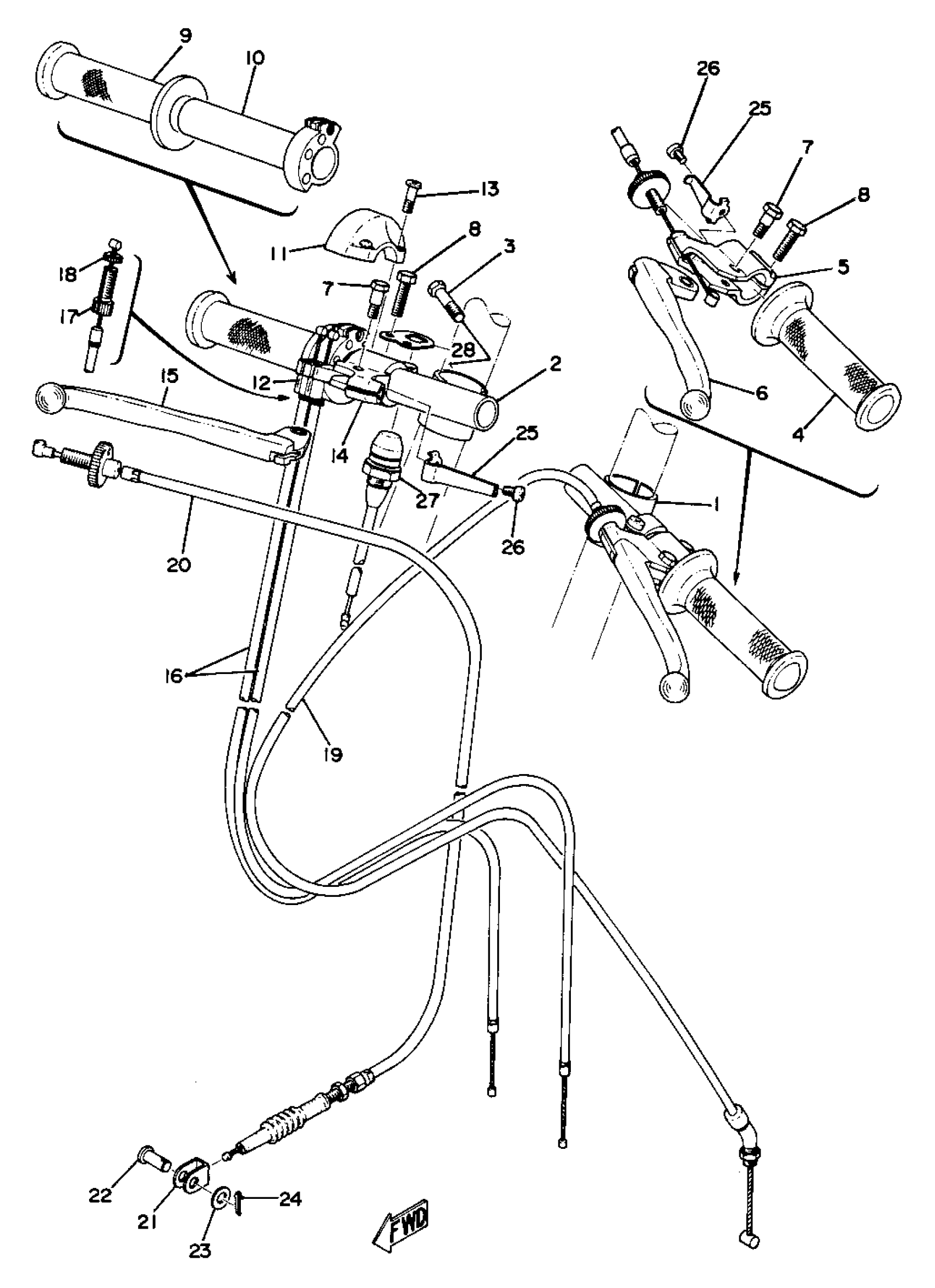

Yamaha TA125A (TA125) 400 1974 HANDLE-WIRE Diagram

#

Description
Price

1

HANDLEBAR LH

(307-26121-71-00)

Unavailable

2

HANDLEBAR RH

(307-26122-71-00)

Unavailable

3

BOLT, HEXAGON

97013-08030-00

$2.49

4

GRIP (L.H)

47X-26241-00-00

Unavailable

5

HOLDER, LEVER 1

(240-82811-00-00)

Unavailable

6

LEVER L

150-83912-00-38

Unavailable

7

BOLT

(90109-06333-00)

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

GRIP (R.H)

47X-26242-00-00

Unavailable

10

TUBE, THRTL GUIDE

(400-26243-00-00)

Unavailable

11

CAP, GRIP UPPER

256-26281-00-00

Unavailable

12

CAP, GRIP LOWER

(177-26282-01-00)

Unavailable

13

SCREW, PAN HEAD

98517-05030-00

$10.49

14

HOLDER, LEVER 2

(240-82821-00-00)

Unavailable

15

LEVER R

(218-83922-30-38)

Unavailable

16

CABLE, THROTTLE 2

(400-26312-01-00)

Unavailable

17

BOLT 177262530100

90123-06007-00

Unavailable

18

NUT, SPEC''L SHAPE

(90179-06114-00)

Unavailable

19

CABLE, CLUTCH

(400-26335-00-00)

Unavailable

20

CABLE, BRAKE

(400-26341-00-00)

Unavailable

21

JOINT, WIRE

156-26347-00-00

Unavailable

22

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

23

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

24

PIN, COTTER

91490-20025-00

Unavailable

25

SPRING, LOCK

5F6-26368-00-00

Unavailable

26

GASKET, EXHAUST

98507-05008-00

Unavailable

27

SWITCH, HANDLE 1

(328-83976-00-00)

Unavailable

28

HOLDER, HANDLE SWCH

(294-83974-00-00)

Unavailable
