FUEL TANK

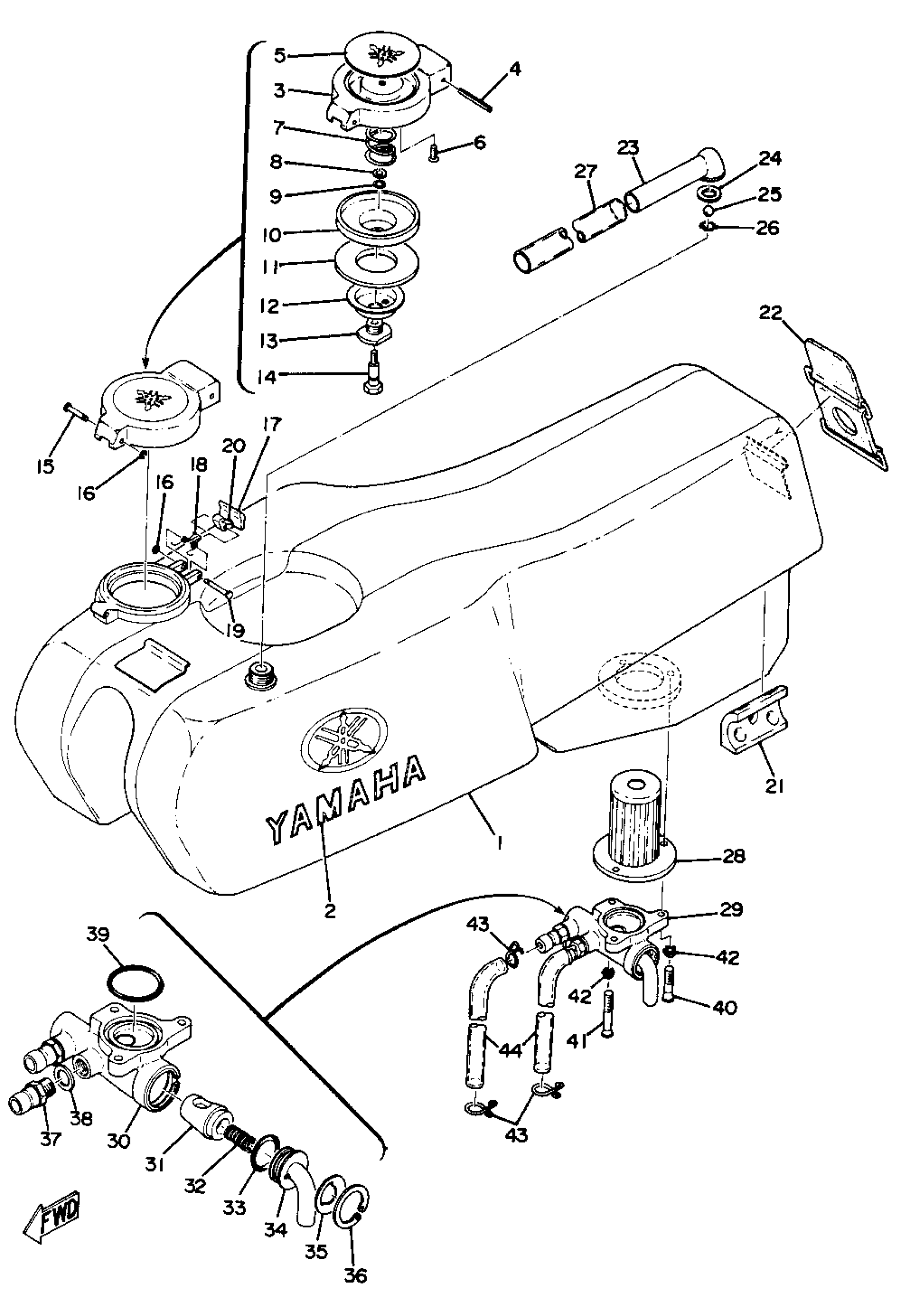

Yamaha TA125A (TA125) 400 1974 FUEL TANK Diagram
#
1
FUEL TANK
(400-24110-01-01)
Unavailable
2
EMBLEM 1
240-24161-00-00
Unavailable
3
BODY, CAP
(256-24611-00-00)
Unavailable
5
PLATE, CAP
(256-24614-00-00)
Unavailable
10
DISC, CAP
(256-24613-00-00)
Unavailable
11
GASKET, CAP
256-24612-00-00
Unavailable
12
GASKET, PLATE 1
256-24615-00-00
Unavailable
13
BOLT (256-24626-00)
90109-10352-00
Unavailable
14
GUIDE, CAP
256-24625-00-00
Unavailable
15
PIN, SPEC''L SHAPE
90249-03016-00
Unavailable
16
CIRCLIP (604)
93430-02001-00
Unavailable
17
HOOK
256-24628-00-00
Unavailable
18
SPRING, TORSION (256-24637-00)
90508-08223-00
Unavailable
19
PIN, SPEC''L SHAPE
90249-03016-00
Unavailable
20
O-RING (26H)
93210-06632-00
Unavailable
21
DAMPER,LOCATING 1
240-24181-00-00
Unavailable
22
BAND, TNK FITTING 1
240-24173-00-00
Unavailable
23
NUT, BREATHER
143-24681-00-00
Unavailable
24
GASKET
(90430-10028-00)
Unavailable
25
BALL, VALVE
143-24684-00-00
Unavailable
26
CLIP, BALL HOLDER
143-24685-00-00
Unavailable
27
HOSE (MAXI MAROON)
(90446-06007-00)
Unavailable
28
STRAINER
(294-24167-00-00)
Unavailable
29
FUEL COCK ASSEMBLY 1
(240-24500-01-00)
Unavailable
30
TOOL
UNA-VAILA-BL-EI
Unavailable
31
TOOL
UNA-VAILA-BL-EI
Unavailable
32
. SPRING
(145-24529-00-00)
Unavailable
33
. SEAL, COCK
(240-24534-00-00)
Unavailable
34
. LEVER, COCK
(240-24524-00-00)
Unavailable
35
. PLATE, LVR FITTING
(240-24525-00-00)
Unavailable
36
. BRACKET, FUEL COCK
(240-24544-00-00)
Unavailable
37
. NIPPLE
(240-24537-00-00)
Unavailable
38
. GASKET
(240-24528-00-00)
Unavailable
39
O-RING
(93210-38146-00)
Unavailable
40
UNAVAILABLE IN PRICE BOOK
98701-04026-00
Unavailable
41
SCREW, FLAT HEAD
(98701-04035-00)
Unavailable
42
WASHER, EX.TOOTH
(92901-04500-00)
Unavailable
43
CLIP
90467-100A1-00
Unavailable
44
HOSE
(90446-11044-00)
Unavailable
