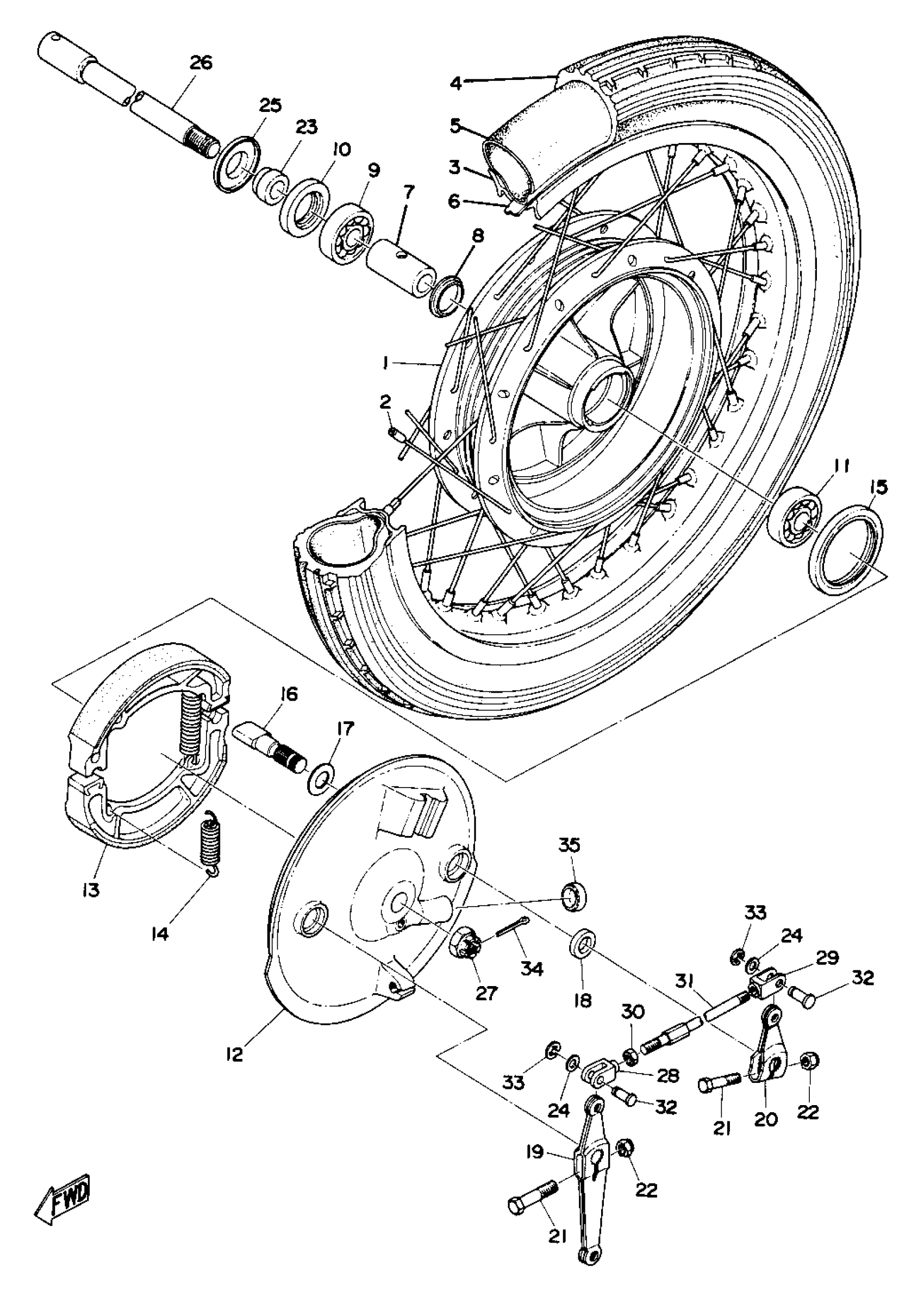

Yamaha TA125A (TA125) 400 1974 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

(246-25111-00-38)

Unavailable

2

SPOKE SET, FRONT

(400-25104-00-00)

Unavailable

3

RIM 1.60X18

(94416-18110-00)

Unavailable

4

250X18 YOKOHAMA

(94125-18110-00)

Unavailable

5

TUBE (5H5)

94225-18194-00

$36.99

6

BAND, RIM (2J4)

94340-18086-00

$17.99

7

SPACER 136253170000

90560-15136-00

Unavailable

8

FLANGE, SPACER

146-25115-00-00

$6.99

9

BEARING

93306-30212-00

$40.99

10

OIL SEAL (22X42X7)

93102-22014-00

$12.49

11

BEARING

93306-30212-00

$40.99

12

PLATE, BRAKE SHOE

(337-25121-00-00)

Unavailable

13

BRAKESHOE SET-2PCS

168-W2535-00-00

Unavailable

14

SPRING, TENSION 2462533300

90507-20002-00

$8.49

15

OIL SEAL, SDD-TYPE

93105-53013-00

Unavailable

16

CAMSHAFT

(4R5-25151-00-00)

Unavailable

17

SHIM, CAM SHAFT

148-25353-00-00

Unavailable

18

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

19

LEVER, CAMSHAFT 1

(337-25155-00-00)

Unavailable

20

LEVER, CAMSHAFT 2

(337-25156-00-00)

Unavailable

21

BOLT, FLAT HD.DRILL

(95201-06030-00)

Unavailable

22

NUT, NYLON

95707-06300-00

Unavailable

23

COLLAR

(90387-15421-00)

Unavailable

24

WASHER, PLATE (371)

90201-06431-00

Unavailable

25

COVER, HUB DUST

(246-25118-00-00)

Unavailable

26

AXLE, WHEEL

(246-25181-00-00)

Unavailable

27

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

28

END, ROD 1

152-25163-00-00

Unavailable

29

END, ROD 2

152-25164-00-00

Unavailable

30

NUT(650)

95380-06700-00

Unavailable

31

ROD, CONNECTING

(152-25161-00-00)

Unavailable

32

PIN, SPEC'L SHAPE

90249-06095-00

Unavailable

33

CIRCLIP (EU0)

99080-04600-00

Unavailable

34

PIN, COTTER

91490-30030-00

Unavailable

35

PLUG 288251390000

90338-18014-00

Unavailable
