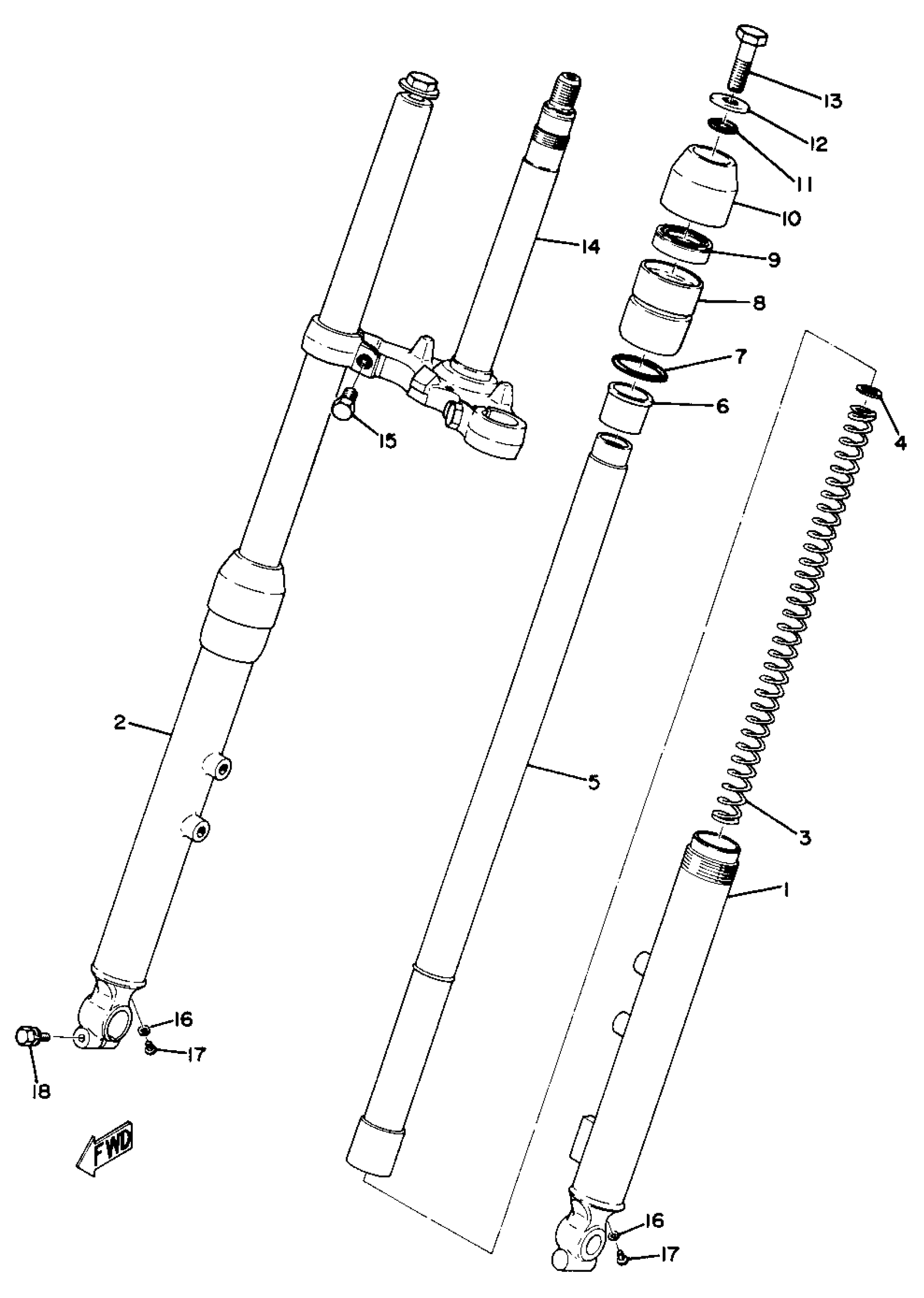

Yamaha TA125A (TA125) 400 1974 FRONT FORK Diagram

#

Description

Price

1

FRONT FORK ASSEMBLY

(400-23101-00-00)

Unavailable

1

TUBE, OUTER 1

(400-23126-00-33)

Unavailable

2

TUBE, OUTER 2

(400-23136-00-33)

Unavailable

3

SPRING, FRONT FORK

(400-23141-00-00)

Unavailable

4

WASHER, SPRING UPR

(252-23149-00-00)

Unavailable

5

TUBE, INNER 1

(400-23124-00-00)

Unavailable

6

METAL, SLIDE 1

(164-23125-00-00)

Unavailable

7

O-RING

(164-23147-00-00)

Unavailable

8

OUTER NUT

(307-23150-01-00)

Unavailable

9

. OIL SEAL

164-23145-01-00

Unavailable

10

SEAL, DUST

(252-23144-00-00)

Unavailable

11

GASKET

307-23114-00-00

$9.99

12

WASHER, CAP

(183-23112-00-00)

Unavailable

13

BOLT, CAP

(307-23111-00-00)

Unavailable

14

UNDER BRACKET

(400-23340-00-33)

Unavailable

15

BOLT 1

122-23346-02-00

Unavailable

16

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

17

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

18

BOLT, WITH WASHER

(90119-08010-00)

Unavailable
