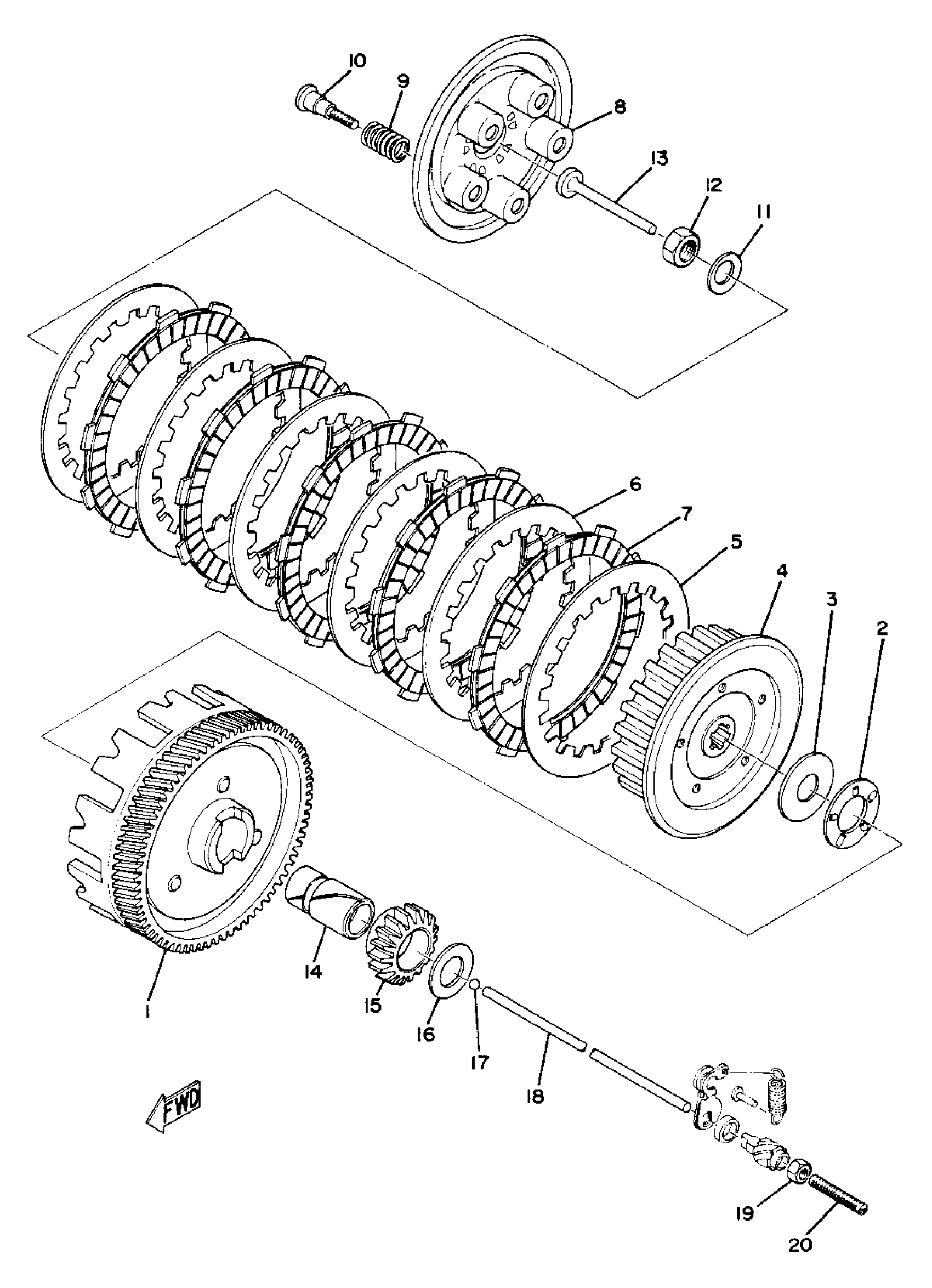

Yamaha TA125A (TA125) 400 1974 CLUTCH Diagram
#
Description
Price
1
PRI DRVN GEAR
(307-16150-00-00)
Unavailable
1
CLUTCH ASSEMBLY
(400-16301-00-00)
Unavailable
2
. BEARING, FLAT #41
93341-22302-00
Unavailable
3
PLATE, THRUST
131-16154-00-00
Unavailable
4
. BOSS, CLUTCH
132-16371-02-00
Unavailable
5
. PLATE, CLUTCH 2
137-16325-00-00
Unavailable
7
PLATE, FRICTION
(400-16321-10-00)
Unavailable
10
SCREW, SPECL SHAPE
(90149-05147-00)
Unavailable
11
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
14
SPACER
(90560-17158-00)
Unavailable
15
GEAR, KICK PINION
(132-15631-00-00)
Unavailable
16
PLATE, THRUST
122-16164-00-00
Unavailable
17
BALL
93501-04011-00
Unavailable
18
ROD, PUSH 2
307-16357-00-00
Unavailable
19
NUT(650)
95380-06700-00
Unavailable
20
BOLT SET 241163430000
90113-06013-00
Unavailable
