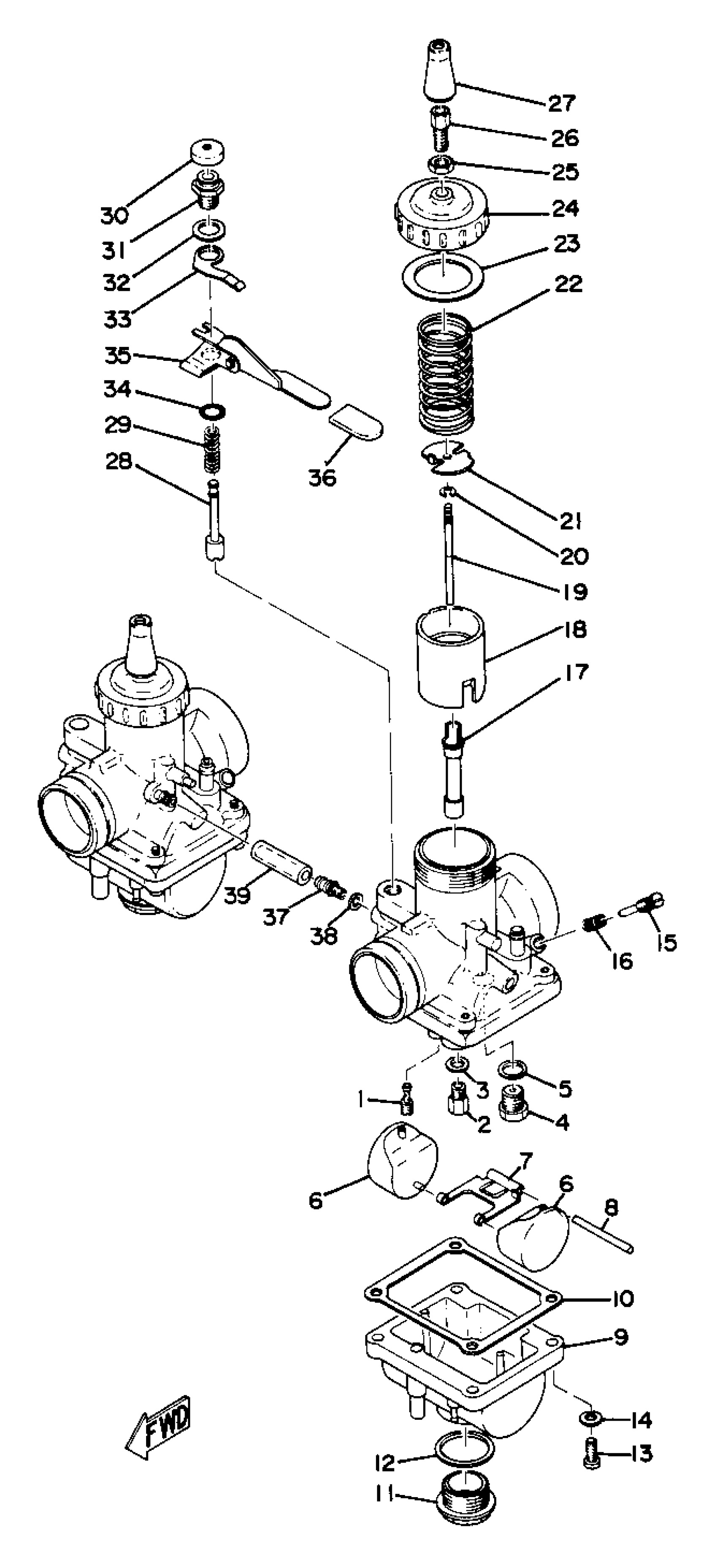

Yamaha TA125A (TA125) 400 1974 CARBURETOR Diagram

#

Description
Price

1

. JET, PILOT #40

193-14142-40-A1

Unavailable

1

CARBURETOR ASSEMBLY 1

(307-14101-71-00)

Unavailable

2

JET, MAIN #180

137-14143-36-A1

Unavailable

2

JET,MAIN #190

137-14143-38-A0

Unavailable

2

JET, MAIN #200

137-14143-40-A1

$13.49

2

JET, MAIN #210

137-14143-42-A1

Unavailable

2

JET, MAIN #220

137-14143-44-A1

$11.99

2

CARBURETOR ASSEMBLY 2

(307-14102-71-00)

Unavailable

3

WASHER,MAIN JET

137-14153-00-00

$7.99

4

NEEDLE VALVE SET

23L-14107-25-00

$42.99

5

WASHER, VALVE SEAT

214-14195-00-00

$7.99

6

. FLOAT

280-14185-00-00

Unavailable

7

. ARM, FLOAT

280-14187-00-00

Unavailable

8

PIN, FLOAT

127-14186-00-00

$6.65

9

BODY, FLOAT CHMBR 1

(278-14181-00-00)

Unavailable

9

BODY, FLOAT CHMBR 2

(278-14183-00-00)

Unavailable

10

. GASKET, FLOAT CHAMBER

278-14184-00-00

Unavailable

11

. PLUG, SCREW

(278-14115-00-00)

Unavailable

12

WASHER,SCREW PLUG

278-14117-00-00

Unavailable

13

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

14

WASHER, PLAIN (646)

92990-04600-00

Unavailable

15

AIR SCREW SET

23X-14104-00-00

Unavailable

16

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

17

NOZZLE, MAIN

(280-14141-20-00)

Unavailable

18

VALVE, THROTTLE 1

(278-14112-10-00)

Unavailable

18

VALVE, THROTTLE 2

(278-14113-10-00)

Unavailable

19

NEEDLE

(644-14116-15-00)

Unavailable

20

CLIP

3FA-14137-00-00

Unavailable

21

. SEAT, SPRING

256-14936-00-00

Unavailable

22

. SPRING, THRTL VALVE

204-14131-00-00

Unavailable

23

GASKET

246-14126-00-00

Unavailable

24

. TOP, MIXING CHAMBER

802-14158-00-00

Unavailable

25

NUT, WIRE ADJUSTING

802-14161-00-00

Unavailable

26

CABLE ADJUST SCREW SET

12G-14106-00-00

Unavailable

27

CAP

8A7-14169-00-00

Unavailable

28

. PLUNGER, STARTER

278-14171-00-00

Unavailable

29

. SPRING, PLUNGER

256-14135-00-00

Unavailable

30

. COVER, PLUNGER CAP

802-14173-00-00

Unavailable

31

. CAP, PLUNGER

(278-14174-00-00)

Unavailable

32

WASHER, STARTER LVR

(132-14179-00-00)

Unavailable

33

. PLATE, STARTER LEVER

(170-14178-00-00)

Unavailable

34

O-RING (248)

93220-09001-00

Unavailable

35

. LEVER, STARTER LH

360-14175-00-00

Unavailable

36

CAP

(278-14169-00-00)

Unavailable

37

NIPPLE

(278-14251-00-00)

Unavailable

38

WASHER, NEEDLE

(278-14151-00-00)

Unavailable

39

PIPE

(307-14149-70-00)

Unavailable
