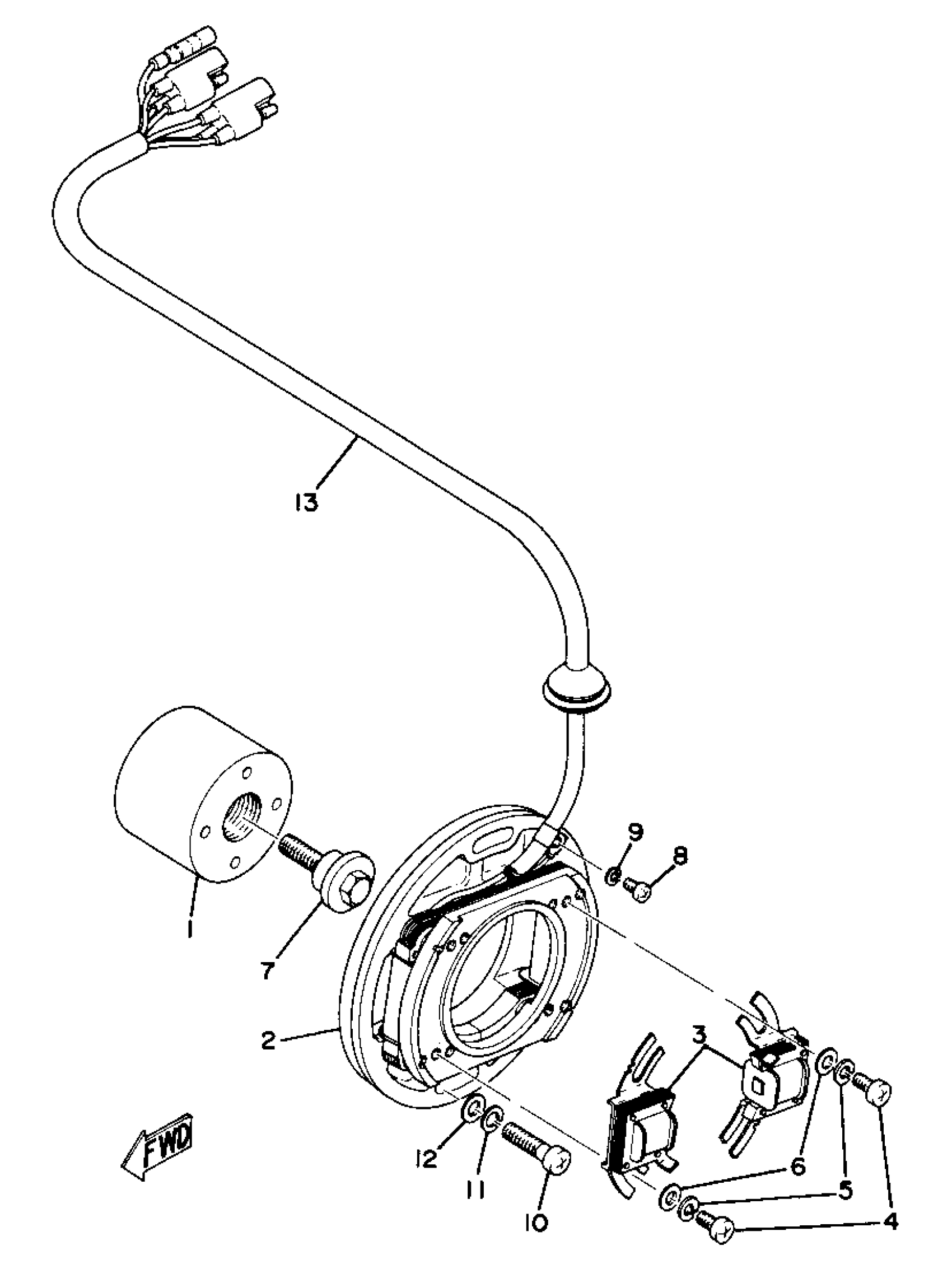

Yamaha TA125A (TA125) 400 1974 C - D - I - MAGNETO Diagram

#

Description

Price

1

CDI MAGNETO ASSEMBLY

(400-85500-12-00)

Unavailable

1

ROTOR ASSEMBLY

(400-85550-11-00)

Unavailable

2

STATOR ASSEMBLY

(400-85510-10-00)

Unavailable

3

. COIL PULSER

364-85543-10-00

Unavailable

4

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

5

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

6

. WASHER, PLAIN

92990-05200-00

Unavailable

7

. ROTOR

328-85559-10-00

Unavailable

8

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

10

SCREW, PAN HEAD

98517-05030-00

$10.49

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

. WASHER, PLAIN

92990-05200-00

Unavailable

13

LEAD WIRE ASSEMBLY

(328-85515-10-00)

Unavailable
