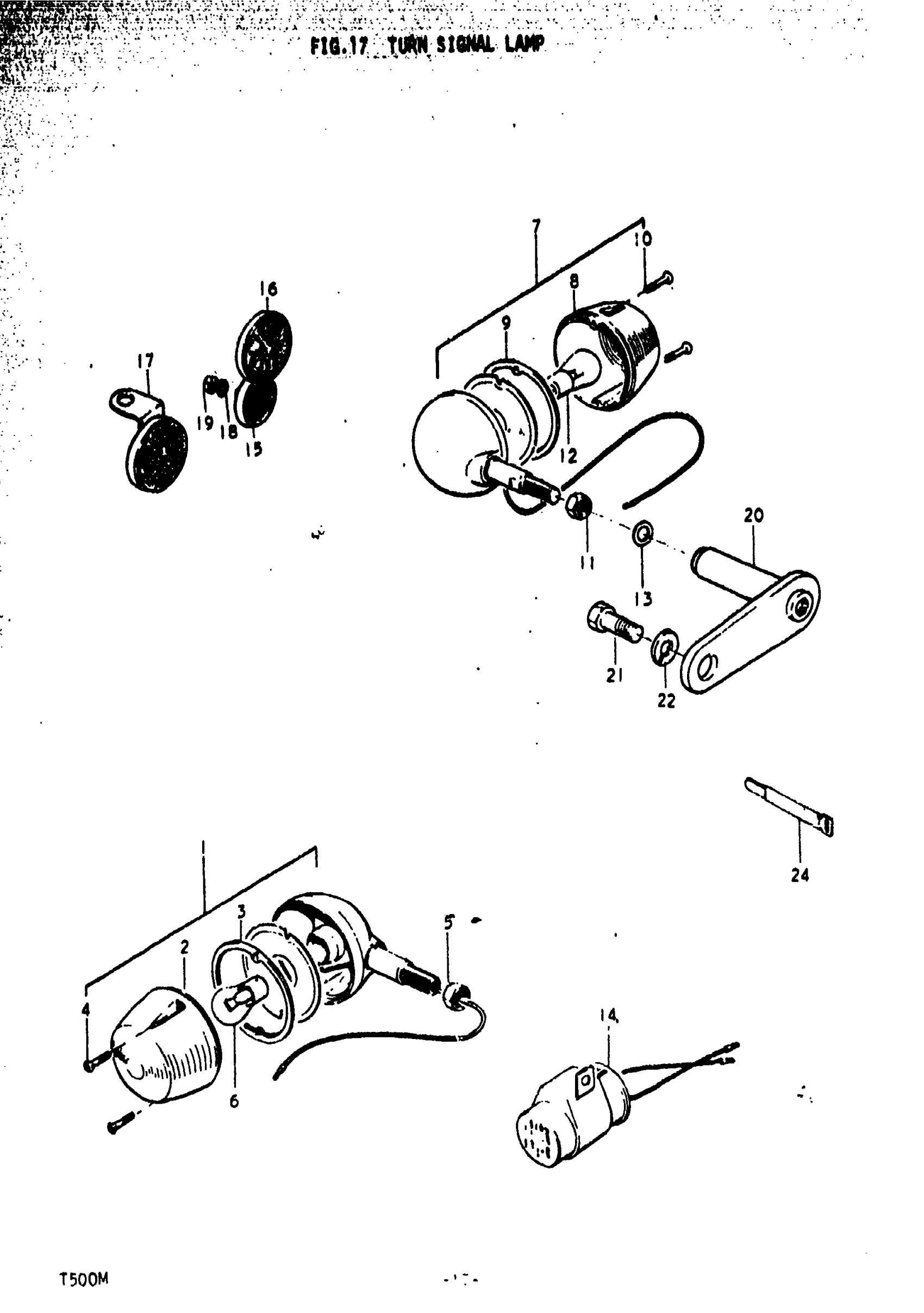

Suzuki T500J (1975) TURN SIGNAL LAMP Diagram

LAMP ASSY, TURN SIGNAL | R,J

35601-15610-999

Unavailable

LAMP ASSY, TURN SIGNAL | K,L; TO 35601-18620

35601-18620-999

Unavailable

LAMP ASSY, TURN SIGNAL FRONT | M; Includes Item(s) 2 - 6 This part replaces 35601-18620.

35601-27630-999

Unavailable

LENS | R,J,K,L,M

35612-12611

$12.50

GASKET | R,J,K,L,M

35613-03610

$13.34

SCREW | R,J,K,L,M This part replaces 02131-03167.

02132-03167

$1.49

NUT | R,J,K,L,M This part replaces 08312-31108.

08310-00107

$2.19

BULB | R,J,K,L,M; 12V, 32CP, US#1073

09471-12006

$3.98

LAMP ASSY,RR TR | R,J This part replaces 35603-18610-999.

35603-27670-999

Unavailable

LAMP ASSY,RR TR | K,L,M This part replaces 35603-15611.

35603-27670-999

Unavailable

LENS | R,J,K,L; Includes Item(s) 8 - 12

35652-18700

Unavailable

LENS | M

35612-12611

$12.50

GASKET | R,J,K,L,M

35613-03610

$13.34

SCREW | R,J,K,L,M This part replaces 02131-03167.

02132-03167

$1.49

NUT | R,J,K,L,M This part replaces 08312-31108.

08310-00107

$2.19

BULB | R,J,K,L,M; 12V, 32CP, US#1073

09471-12006

$3.98

WASHER | R,J,K This part replaces 08322-11108.

08322-01107

$2.15

TURN SIGNAL REL | R,J,K,L,M This part replaces 38610-15611.

38610-322V0

Unavailable

REFLEX REFLECTOR, FRONT | R

35950-18612

Unavailable

REFLEX REFLECTOR FRONT | J This part replaces 35950-31010.

35950-49080

$17.24

NO DESCRIPTION AVAILABLE | K,L,M This part replaces 35950-25610.

35950-25611

Unavailable

LOCK WASHER | R,J This part replaces 08321-21058.

08321-0105A

$1.84

NUT | R,J This part replaces 08311-11058.

08310-00057

$1.84

BRACKET, TURN SIGNAL | K,L,M

41640-15100

Unavailable

BOLT | K,L,M This part replaces 01122-10168.

01500-10167

$3.85

LOCK WASHER | K,L,M This part replaces 08321-21108.

08321-01107

$1.84

CLAMP, TURN SIGNAL CORD | K; TO 09407-09302

09410-00048

Unavailable

CLAMP | L,M This part replaces 09407-11302.

09407-18302

$2.28
