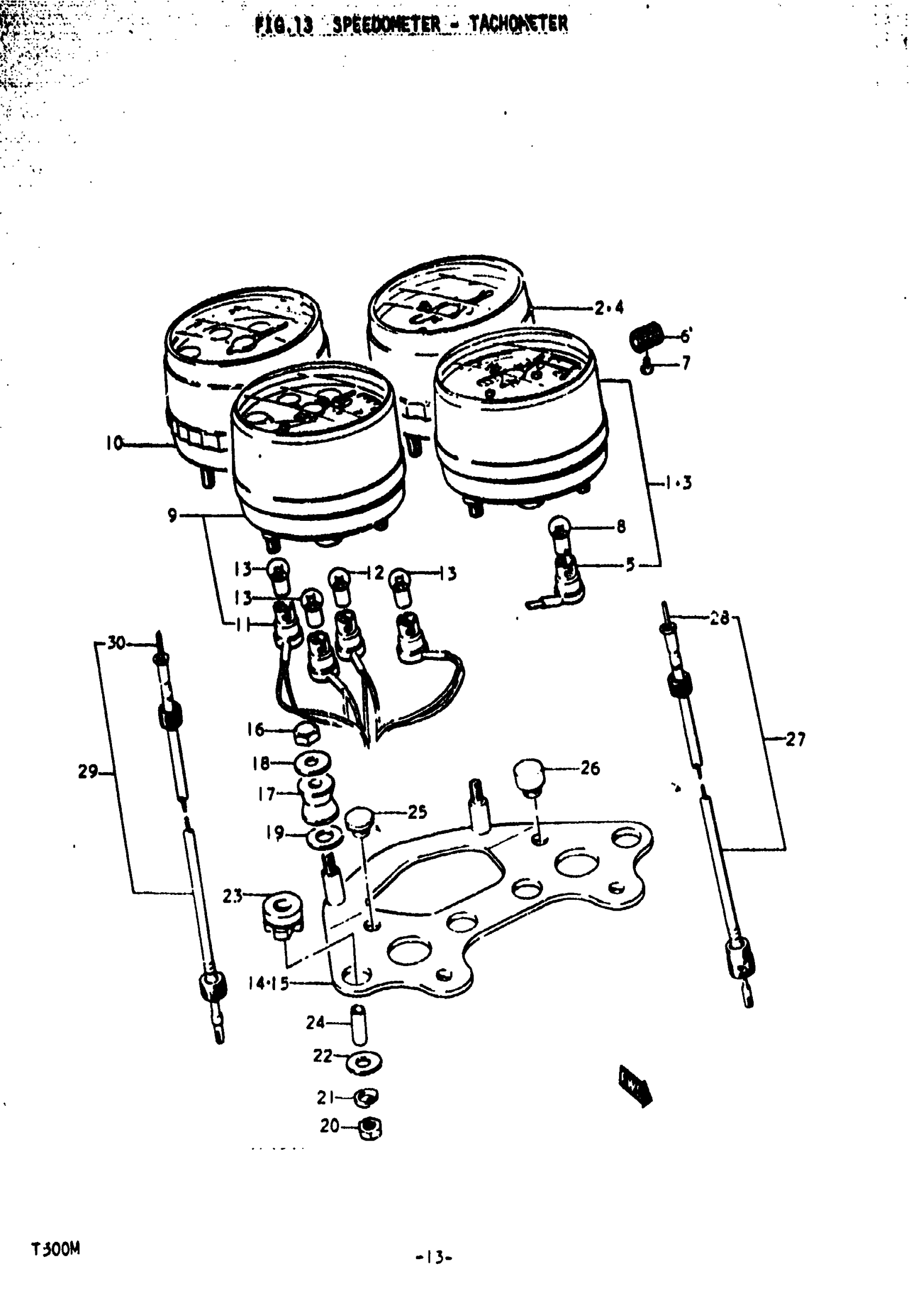

Suzuki T500J (1975) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSY | R

34100-18610-999

Unavailable

2

SPEEDOMETER ASSY | R

34100-18611-999

Unavailable

3

SPEEDOMETER ASSY | J

34100-15632-999

Unavailable

4

SPEEDOMETER ASSY | J,K,L; TO 34100-15633

34100-15633-999

Unavailable

4

SPEEDOMETER ASSY | M; Includes Item(s) 5 - 8

34100-15633

Unavailable

5

SOCKFT, PLLOT BULB | R,J,K,L,M

34173-18620

Unavailable

6

KNOB, TRIP METER | R,J,K,L,M

34980-30610

Unavailable

7

SCREW (2X6) | R,J,K,L,M This part replaces 34981-33600.

09139-02003

$1.65

8

BULB | R,J,K,L,M; 12V, 3.4W

09471-12001

$1.65

9

TACHOMETER ASSY | R

34200-18610-999

Unavailable

9

TACHOMETER ASSY | J

34200-15632-999

Unavailable

10

TACHOMETER ASSY | J,K,L; TO 34200-15122

34200-15122-999

Unavailable

10

TACHOMETER ASSY | M; Includes Item(s) 11 - 13

34200-15122

Unavailable

11

SOCKET | R,J,K,L,M

34270-15120

Unavailable

12

BULB | R,J,K,L,M; 12V, 1.7W

09471-12004

$2.69

13

BULB | R,J,K,L,M; 12V, 3.4W

09471-12001

$1.65

14

BRACKET, METER | R; TO 34950-15122

34950-15120

Unavailable

15

BRACKET, METER | J,K,L,M

34950-15122

Unavailable

16

NUT, LICENSE HOLDER | R,J,K,L,M This part replaces 08313-11067.

08313-10067

$1.84

17

CUSHION, METER BRACKET | R,J,K,L,M

34956-15100

$3.71

18

WASHER | R,J,K,L,M This part replaces 09160-06007.

09160-06084

$1.78

19

WASHER | R,J,K,L,M This part replaces 08322-21068.

08322-01067

$2.13

20

.NUT | R,J,K,L,M This part replaces 08311-11068.

08310-00067

$2.13

21

LOCK WASHER | R,J,K,L,M This part replaces 08321-21068.

08321-01067

$2.13

22

WASHER | R,J,K,L,M This part replaces 09160-06007.

09160-06084

$1.78

23

CUSHION, METER (1) | R,J,K,L,M

34955-16420

$4.43

24

SPACER, METER | R,J

34972-16420

Unavailable

25

CUSHION, METER (2) | RJ,K,L,M

34956-16420

Unavailable

26

CUSHION, METER (3) | R,J,K,L,M

34957-16420

Unavailable

27

CABLE SPEEDOMET | R,J,L,M; L:955 This part replaces 34910-15130.

34910-44401

$26.05

27

CABLE ASSY, SPEEDOMETER | K; TO 34910-15130 L:940; Includes Item(s) 28 - 28

34910-16430

Unavailable

28

CABLE, INNER | R,J,L

34911-15030

Unavailable

28

CABLE, INNER | K

34911-16430

Unavailable

29

CABLE ASSY, TACHOMETER | R,J; TO 24940-18430 L:1040

34940-15030

Unavailable

29

CABLE ASSY,TACH | K,L,M; L:1030; Includes Item(s) 30 - 30 This part replaces 34940-36030.

34940-36032

Unavailable

30

CABLE ASSY,TACH | R,J This part replaces 34941-15031.

34940-36032

Unavailable

30

CABLE, INNER | K,L

34941-18430

Unavailable
