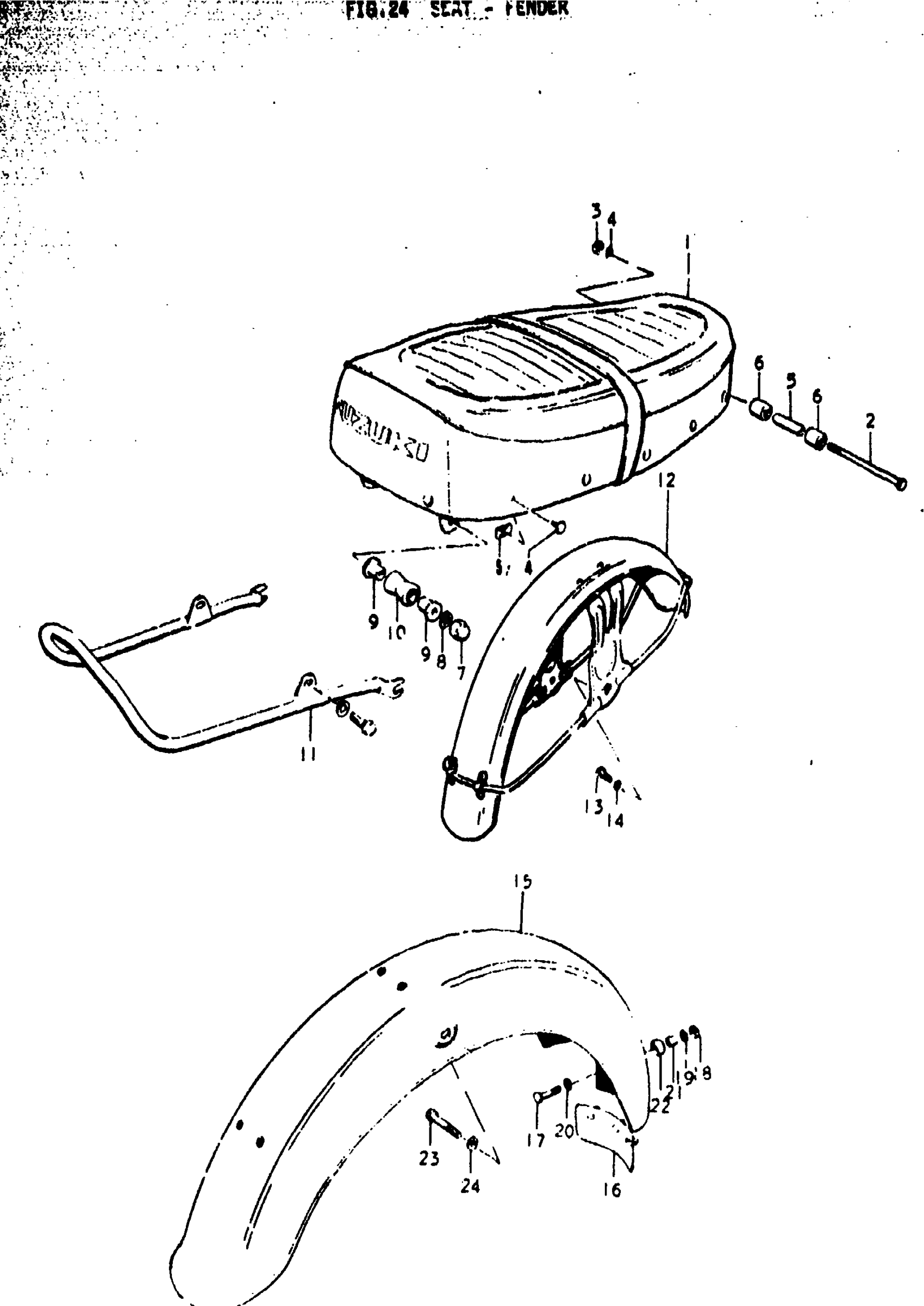

Suzuki T500J (1975) SEAT - FENDER Diagram

#

Description
Price

1

SEAT ASSY | R,J,K,L

45100-15102-403

Unavailable

1

NO DESCRIPTION AVAILABLE | M This part replaces 45100-15103-403.

45100-15103-865

Unavailable

2

SPACER | R,J,K,L,M This part replaces 09100-08029.

09100-08030

Unavailable

3

NUT | R,J,K,L,M This part replaces 08312-11088.

08310-00087

$2.13

4

.LOCK WASHER | R,J,K,L,M This part replaces 08321-21088.

08321-01087

$2.13

5

SPACER, SEAT FRONT | R,J,K,L,M

09180-08023

Unavailable

6

CUSHION, SEAT FRONT | R,J,K,L,M; OD:28, W:20

09319-08002

Unavailable

7

NUT | R,J,K,L,M This part replaces 08313-11087.

08313-10087

$2.28

8

.LOCK WASHER | R,J,K,L,M This part replaces 08321-21088.

08321-01087

$2.13

9

BUSHING, SEAT REAR | R,J,K,L,M

09301-08001

Unavailable

10

CUSHION, SEAT REAR | R,J,K,L,M; 12.5x22.6x29.4

09305-12008

Unavailable

11

BUMPER, REAR | R,J,K,L,M

94710-15100

Unavailable

12

FENDER, FRONT | R,J,K,L,M; CHROME-PLATED

53100-15101

Unavailable

13

BOLT | R,J,K,L,M This part replaces 09100-08073.

01500-0812A

$2.28

14

.LOCK WASHER | R,J,K,L,M This part replaces 08321-21088.

08321-01087

$2.13

15

FENDER, REAR | R,J,K,L,M; CHROME-PLATED

63110-15100

Unavailable

16

GUARD, MUD | R,J,K,L,M

63411-15101

Unavailable

17

BOLT | R,J,K,L,M This part replaces 01112-06208.

01500-06207

$2.28

18

.NUT | R,J,K,L,M This part replaces 08311-11068.

08310-00067

$2.13

19

.LOCK WASHER | R,J,K,L,M This part replaces 08321-21088.

08321-01087

$2.13

20

WASHER, FRONT | R,J,K,L,M; 6.5x24x1.6 This part replaces 09160-06004.

09160-06134

$1.91

21

SPACER (6.5X10X7) | R,J,K,L,M; 6.8x10x7.0 This part replaces 09180-06002.

09180-06283

$1.91

22

CUSHION, FENDER LOWER | R,J,K,L,M; 3.5x24x8.0

09320-09002

$1.98

23

NO DESCRIPTION AVAILABLE | R,J; 8x47 This part replaces 09100-08002.

09100-08290

Unavailable

23

BOLT | K,L,M This part replaces 01122-08558.

01500-08557

$3.16

24

WASHER | R,J,K,L,M This part replaces 08322-21088.

08322-01087

$2.13
