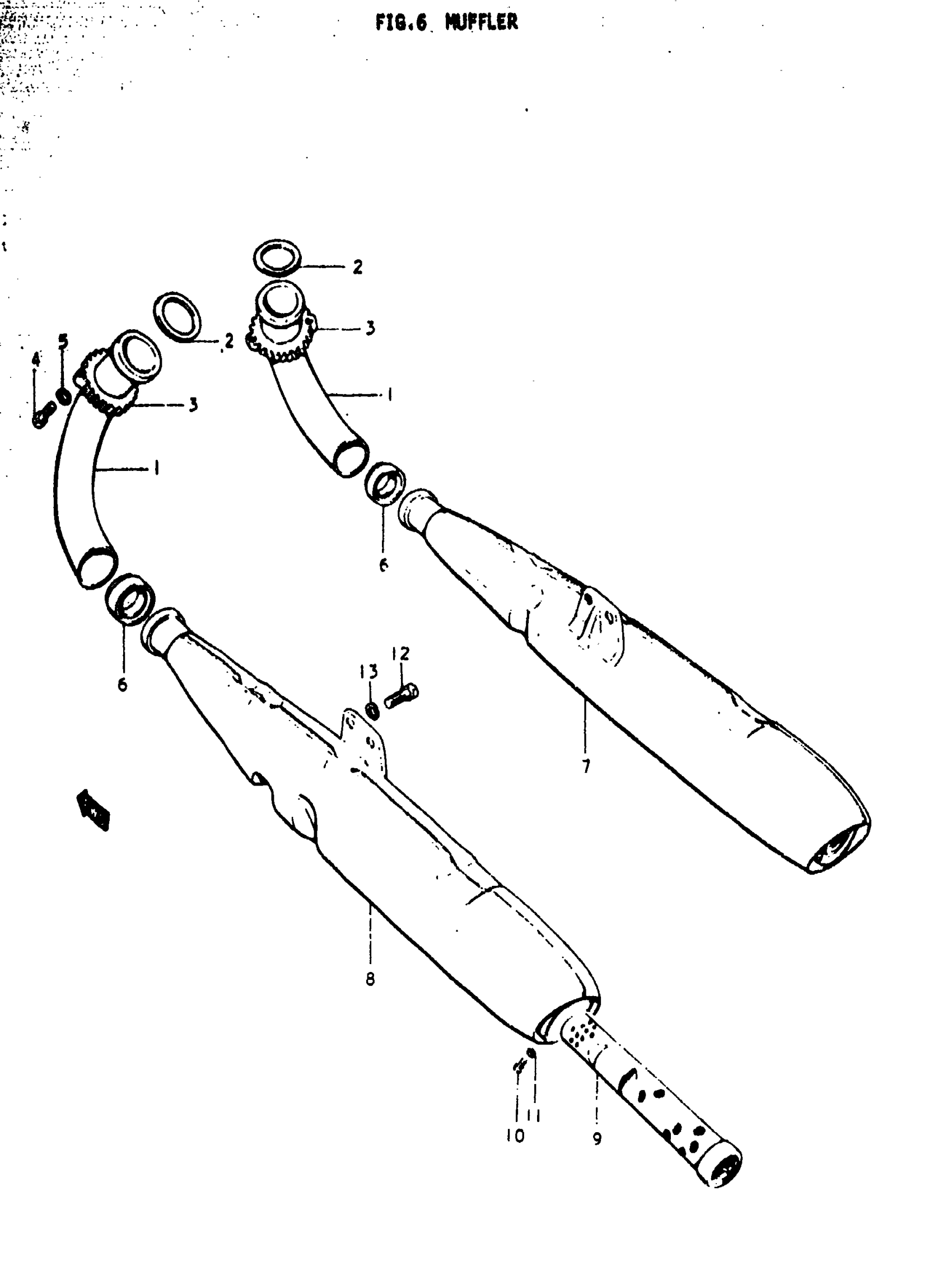

Suzuki T500J (1975) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST | R,J,K,L,M

14150-15000

Unavailable

2

GASKET,EXHAUST | R,J,K,L,M This part replaces 14181-15010.

14181-15020

Unavailable

3

CLAMP, EXHAUST PIPE | R,J,K,L,M

14182-15000

Unavailable

4

BOLT | R,J,K,L,M This part replaces 01122-08408.

01500-0840A

$2.60

5

.LOCK WASHER | R,J,K,L,M This part replaces 08321-21088.

08321-01087

$2.13

6

CONNECTOR, MUFFLER | R,J,K,L,M

14771-15080

Unavailable

7

NO DESCRIPTION AVAILABLE | R,J,K,L,M; E.NO.11521~ This part replaces 14301-15003.

14301-15601-H01

Unavailable

8

NO DESCRIPTION AVAILABLE | R,J,K,L,M; E.NO.11521~; Includes Item(s) 9 - 11 This part replaces 14302-15003.

14302-15601-H01

Unavailable

9

PIPE, BAFFLE RH | R,J,K,L,M; L:475 E.NO.11521~ This part replaces 14510-15004.

14510-31000

Unavailable

10

SCREW | R,J,K This part replaces 02111-05068.

09125-05122

$2.06

10

BOLT | L,M

09128-08004

$2.05

11

LOCK WASHER | L,M This part replaces 08321-21058.

08321-0105A

$1.84

12

BOLT 10X16 | R,J,K,L,M This part replaces 01221-10167.

01204-10167

$3.20

13

LOCK WASHER | R,J,K,L,M This part replaces 08321-21108.

08321-01107

$1.84
