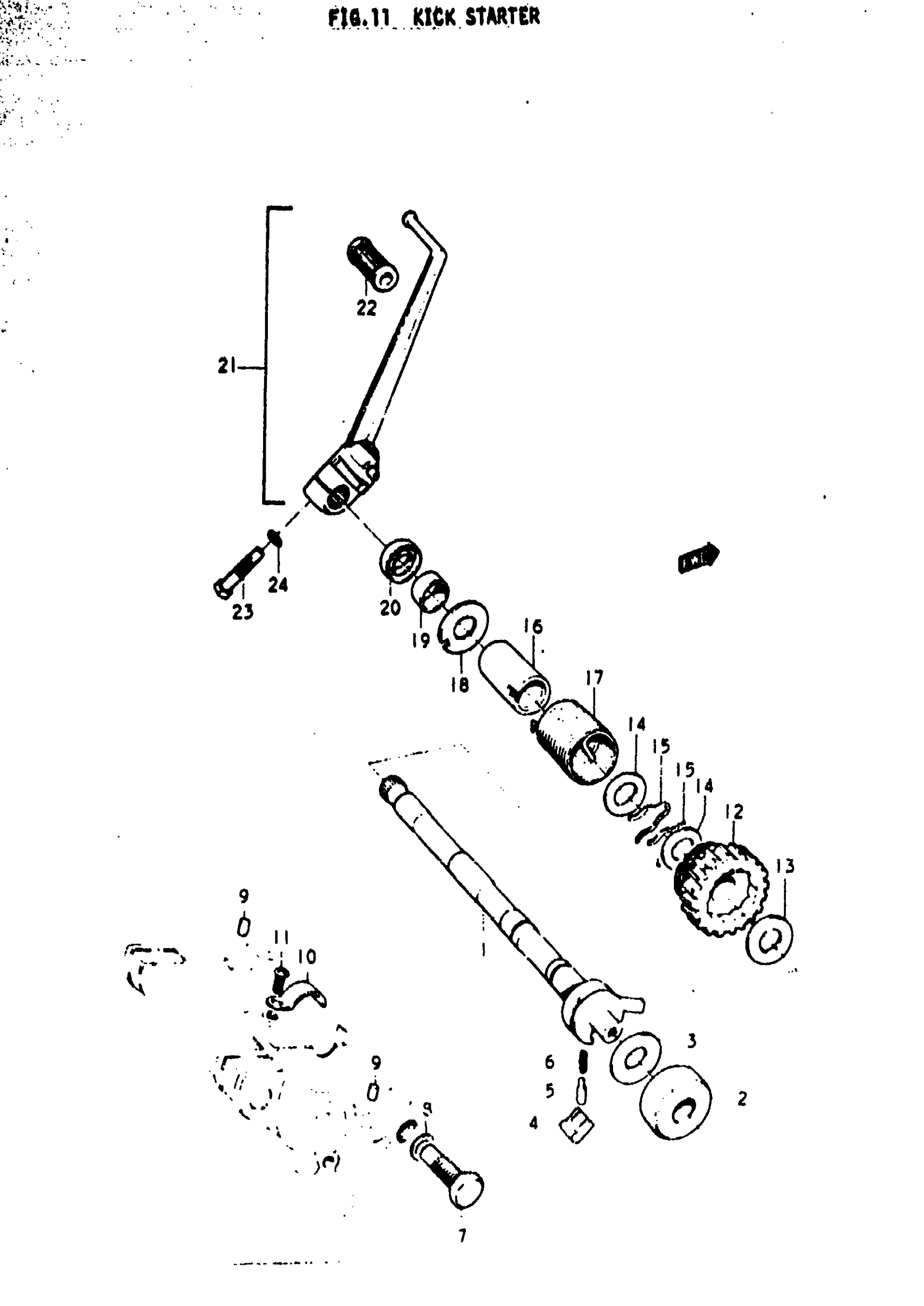

Suzuki T500J (1975) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | R,J,K,L,M

26210-15001

Unavailable

2

BUSHING, STARTER SHAFT RH | R,J,K,L,M

26215-15000

Unavailable

3

THRUST WASHER | R,J,K,L,M; 13x31.5x1.5

09160-13002

Unavailable

4

PAWL, KICK STARTER | R,J,K,L,M

26231-20000

$7.74

5

PIN, STARTER PAWL | R,J,K,L,M

09209-05011

$2.20

6

SPRING, STARTER PAWL | R,J,K,L,M

09440-04010

$1.54

7

BOLT, STARTER STOPPER | R,J,K,L,M

09135-14001

Unavailable

8

WASHER | R,J,K,L,M; 14.5x22x1.6 This part replaces 09160-14001.

09160-14055

$2.39

9

PIN | R,J,K,L,M This part replaces 06211-07123.

04221-07129

$1.86

10

CLAMP, STARTER SHAFT | R,J,K,L,M

26235-15000

Unavailable

11

SCREW | R,J,K,L This part replaces 02112-06128.

02112-06127

$1.84

11

SCREW | M This part replaces 02111-06128.

02112-06127

$1.84

12

GEAR, KICK STARTER DRIVE | R,J,K,L,M

26240-15002

Unavailable

13

THRUST WASHER | R,J,K,L,M; 16x30.5x3

09160-16009

Unavailable

14

THRUST WASHER | R,J,K,L,M; 16x30.5x1

09160-16003

$2.92

15

CIRCLIP | R,J,K,L,M

09384-16001

Unavailable

16

GUIDE, RETURN SPRING | R,J,K,L,M

26221-15000

Unavailable

17

SPRING, KICK SHAFT RETURN | R,J,K,L,M

09448-37001

Unavailable

18

WASHER | R,J,K,L,M; 16x38x1.2

09166-16001

Unavailable

19

BUSHING, STARTER SHAFT LH | R,J,K,L,M

09300-16003

Unavailable

20

SEAL,OIL(16X30X | R,J,K,L,M This part replaces 09285-16002.

09285-16005

$2.75

21

LEVER ASSY, KICK STARTER | R,J,K,L,M; Includes Item(s) 22

26300-15000

Unavailable

22

RUBBER,KICK STA | R,J,K,L,M This part replaces 26352-01000.

26352-01020

$3.25

23

BOLT, KICK STARTER LEVER | R,J,K,L,M

09135-10002

Unavailable

24

LOCK WASHER | R,J,K,L,M This part replaces 08321-21108.

08321-01107

$1.84
