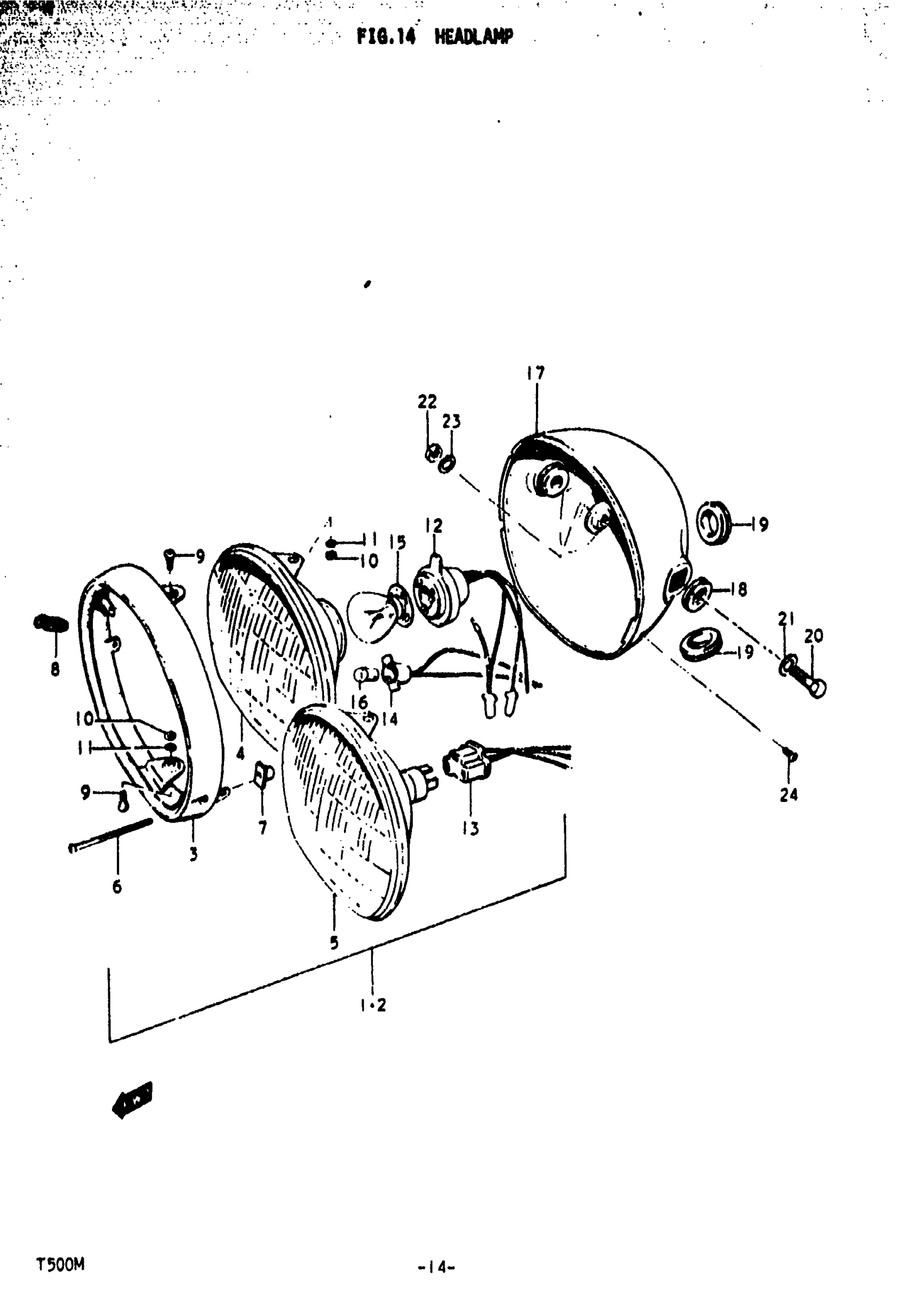

Suzuki T500J (1975) HEAD LAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | R

35100-15613-999

Unavailable

1

HEADLAMP ASSY | R

35100-15613

Unavailable

2

HEADLAMP ASSY | J; Includes Item(s) 3 - 14

35100-15620

Unavailable

3

RIM | R,J

35111-15613

Unavailable

4

UNIT | R

35121-15610

Unavailable

5

UNIT | J; 12V, 35/25W

35121-33610

Unavailable

6

SCREW, LAMP UNIT | R,J

35151-15611

Unavailable

7

NUT, LAMP UNIT | R,J

35152-15611

$3.25

8

SPRING, LAMP UNIT | R,J

35154-11610

Unavailable

9

SCREW | R

45181-15611

Unavailable

9

SCREW | J

35151-33610

Unavailable

10

NUT | R This part replaces 08311-11048.

08310-00047

$2.23

10

NUT | J This part replaces 08311-11058.

08310-00057

$1.84

11

LOCK WASHER | R This part replaces 08321-21048.

08321-0104A

$1.84

11

LOCK WASHER | J This part replaces 08321-21058.

08321-0105A

$1.84

12

SOCKET, LAMP UNIT | R

35171-15610

Unavailable

13

SOCKET, LAMP UNIT | J

35171-33610

Unavailable

14

PARKING LAMP SO | R This part replaces 36118-15610.

36118-04A00

$12.53

15

BULB, HEAD LAMP | R; 12V, 35/25W

09471-12022

Unavailable

16

BULB, PARKING LAMP | R; 12V, 3.4W

09471-12001

$1.65

17

HOUSING ASSY, HEAD LAMP | R,J; Includes Item(s) 18 - 19

51810-15033

Unavailable

18

RUBBER | R,J

51827-15030

Unavailable

19

GROMMET | R,J; ID:28

51845-15130

Unavailable

20

BOLT | R,J This part replaces 01221-08257.

01204-08257

$1.96

21

WASHER | R,J This part replaces 08322-11088.

08322-01087

$2.13

22

NUT | R,J This part replaces 08312-11088.

08310-00087

$2.13

23

.LOCK WASHER | R,J This part replaces 08321-21088.

08321-01087

$2.13

24

SCREW | R,J This part replaces 02231-05128.

02122-05127

$1.93
