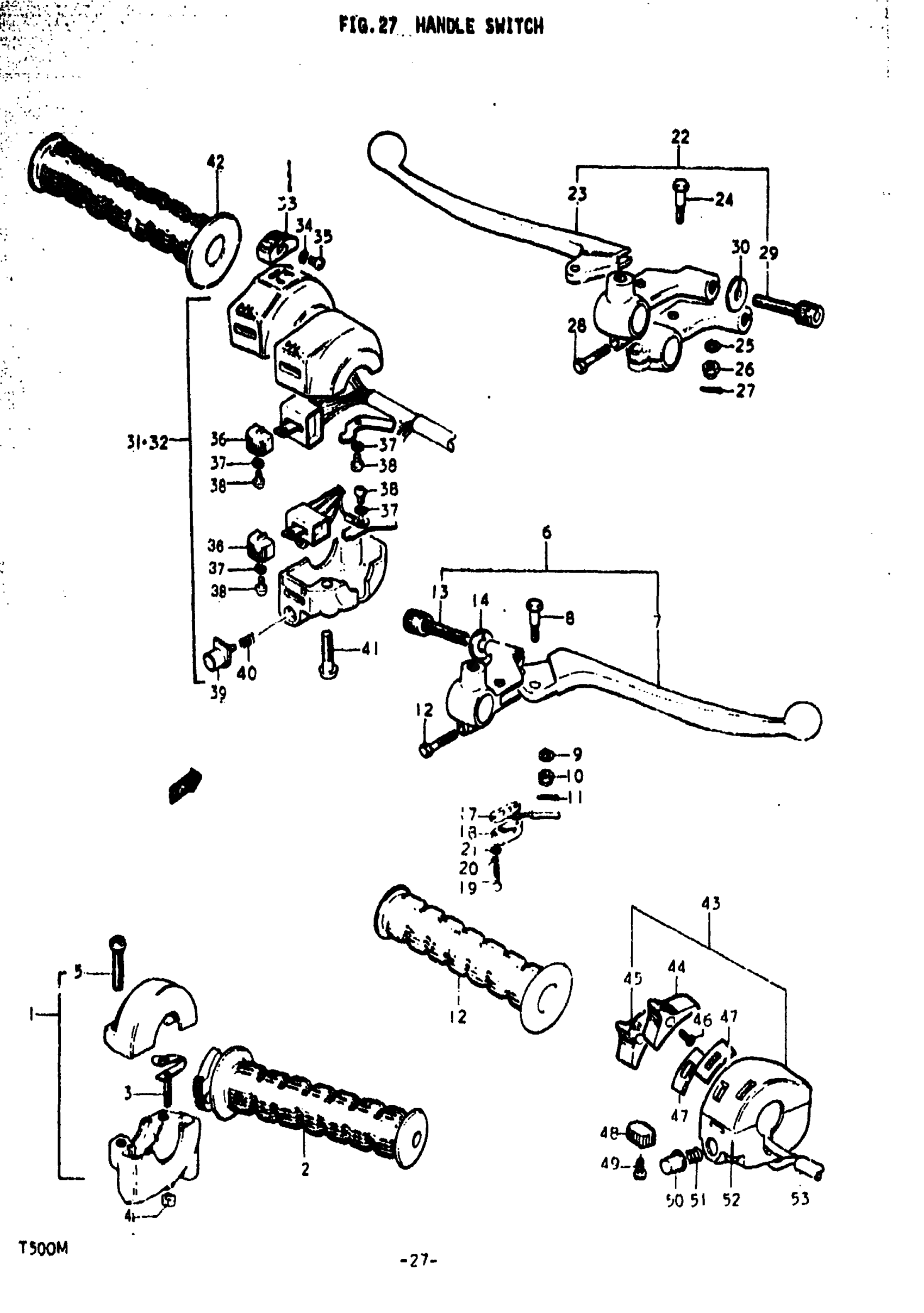

Suzuki T500J (1975) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | R,J

57100-15111

Unavailable

1

GRIP ASSY, THROTTLE | K

57100-15600

Unavailable

1

GRIP ASSY, THROTTLE | L

57100-15601

Unavailable

1

GRIP ASSY, THROTTLE | M; Includes Item(s) 2 - 5

57100-15602

Unavailable

2

GRIP, THROTTLE | R,J,K,L This part replaces 57110-15110.

57110-31012

Unavailable

2

GRIP, THROTTLE | M

57110-31012

Unavailable

3

ADJUSTER, GRIP | R,J,K,L,M

57170-11011

Unavailable

4

NUT | R,J,K,L,M This part replaces 08311-11058.

08310-00057

$1.84

5

SCREW | R,J,M This part replaces 02111-05257.

02112-05257

$1.49

6

LEVER ASSY, BRAKE | R,J

57300-18610

Unavailable

6

LEVER ASSY, BRAKE | K,L This part replaces 57300-33010.

57300-30501

Unavailable

6

LEVER ASSY, BRAKE | M; Includes Item(s) 7 - 21

57300-33011

Unavailable

7

LEVER, BRAKE | R,J,K,L,M; FROM 57420-18600 This part replaces 57420-33010.

57420-18602

Unavailable

8

BOLT | R,J,K,L,M This part replaces 57431-11010.

57431-11013

$6.31

9

LOCK WASHER | R,J,K,L,M This part replaces 08321-21068.

08321-01067

$2.13

10

NUT, LEVER | R,J,K,L,M

57433-11010

$5.64

11

PIN | R,J,K,L,M This part replaces 04111-16158.

04111-1620A

$1.49

12

BOLT | R,J,K,L,M This part replaces 01112-06208.

01500-06207

$2.28

13

ADJUSTER, CABLE | R,J,K,M

57441-11010

$5.62

14

NUT, ADJUSTER | R,J,K,L,M

57442-11010

$2.79

17

WIRING HARNESS | R,J,L; L:690 This part replaces 57470-18600.

57470-33010

Unavailable

17

WIRING HARNESS | K; L:520

57470-33010

Unavailable

18

COVER, TERMINAL VASE | K,L,M

57481-33010

$5.84

19

SCREW | R,J,K,L,M This part replaces 09125-03105.

09125-03105-XC0

$2.23

20

WASHER,LOCK | R,J,K,L,M This part replaces 08321-21038.

09162-03001

$1.49

21

WASHER | R,J,K,L,M This part replaces 08322-21038.

08322-01037

$1.93

22

LEVER ASSY, CLUTCH | R,J,K,L

57500-18610

Unavailable

22

LEVER ASSY, CLUTCH | M; Includes Item(s) 23 - 30 This part replaces 57500-18611.

57500-30501

Unavailable

23

LEVER, CLUTCH | R,J,K,L,M This part replaces 57620-31010.

57620-45010

Unavailable

24

BOLT | R,J,K,L,M This part replaces 57431-11010.

57431-11013

$6.31

25

LOCK WASHER | R,J,K,L,M This part replaces 08321-21068.

08321-01067

$2.13

26

NUT, LEVER | R,J,K,L,M

57433-11010

$5.64

27

PIN | R,J,K,L,M This part replaces 04111-16158.

04111-1620A

$1.49

28

BOLT | R,J,K,L,M This part replaces 01112-06208.

01500-06207

$2.28

29

ADJUSTER, CABLE | R,J,K,L,M

57441-11010

$5.62

30

NUT, ADJUSTER | R,J,K,L,M

57442-11010

$2.79

31

NO DESCRIPTION AVAILABLE | R This part replaces 57700-15110.

57700-28701

Unavailable

32

SWITCH ASSY, HANDLE | J; Includes Item(s) 33 - 41

57700-28700

Unavailable

33

KNOB,HANDLE SWI | J This part replaces 57712-33011.

57712-33012

$6.17

33

KNOB, LIGHTING | J,K,L This part replaces 57713-33010.

57713-33011

$5.24

34

WASHER,LOCK | J This part replaces 08321-21038.

09162-03001

$1.49

35

SCREW | J This part replaces 02111-03067.

02112-0306B

$1.59

36

KNOB, SWITCH | R

57742-26010

Unavailable

37

WASHER,LOCK | R,J This part replaces 08321-21038.

09162-03001

$1.49

38

SCREW | R,J This part replaces 02111-03067.

02112-0306B

$1.59

39

BUTTON, HORN | R,J

57850-31010

Unavailable

40

SPRING, HORN BOTTON | R,J

57761-26010

Unavailable

41

SCREW | R,J

09125-05109

Unavailable

42

GRIP, LH | R,J

57211-15110

Unavailable

43

SWITCH ASSY, HANDLE | K

57700-18650

Unavailable

43

SWITCH ASSY, HANDLE | L

57700-18651

Unavailable

43

SWITCH.ASSY, HANDLE | M; Includes Item(s) 44 - 53

57700-18652

Unavailable

44

KNOB, LIGHTING SWITCH | K,L

57712-33010

Unavailable

45

KNOB, LIGHTING | K,L,M This part replaces 57713-33010.

57713-33011

$5.24

46

SCREW | K This part replaces 03121-03088.

03121-03068

$1.50

46

SCREW | L,M This part replaces 02121-03068.

02122-03067

$1.80

47

PLATE, SWITCH KNOB | K,L,M

57714-33010

$3.25

48

KNOB, SIGNAL SWITCH | K,L,M

57742-33010

Unavailable

49

SCREW | K,L,M This part replaces 02121-03068.

02122-03067

$1.80

50

BUTTON, HORN | K,L,M

57850-31010

Unavailable

51

SPRING, HORN BUTTON | K,L,M

57761-26010

Unavailable

52

SCREW | K,L,M This part replaces 02111-05207.

02112-05207

$1.97

53

WIRING, HARNESS | L

57721-18650

Unavailable
