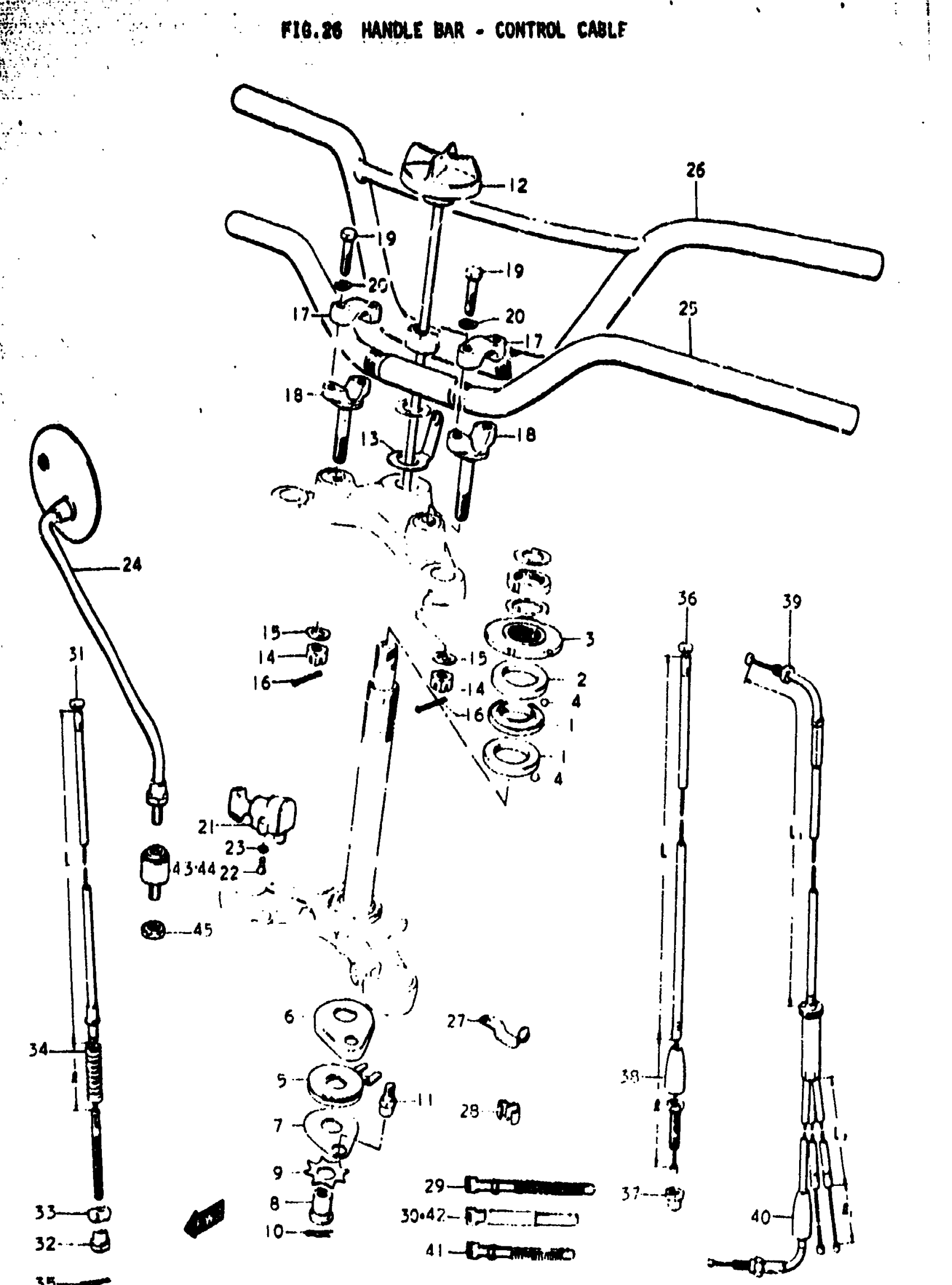

Suzuki T500J (1975) HANDLE BAR - CONTROL CABLE Diagram

#

Description
Price

1

RACE, INNER, LOWER | R,J,K,L This part replaces 51611-33001.

51611-33002

$13.81

1

RACE, STEERING INNER | M

51611-33002

$13.81

2

RACE, STEERING OUTER | R,J,K,L,M

51621-08000

Unavailable

3

NUT, STEERING STEM | R,J,K,L,M This part replaces 51631-08010.

51631-08000

Unavailable

4

STEEL BALL | R,J,K,L,M

06111-08003

$1.49

5

PLATE, DAMPER CORK | R,J,K,L,M

51710-08100

Unavailable

6

PLATE, DAMPER UPPER | J,K,L,M

51721-08100

Unavailable

7

PLATE, DAMPER LOWER | R,J,K,L,M

51722-08100

Unavailable

8

HUB, DAMPER SLEEVE | R,J,K,L,M

51741-08100

Unavailable

9

SPRING, DAMPER ADJUST | R,J,K,L,M

51742-08100

Unavailable

10

CLIP, HANDLE DAMPER | R,J,K,L

09385-05002

Unavailable

10

CLIP, HANDLE DAMPER | M

09385-06001

$3.10

11

BOLT, DAMPER LOCK | R,J,K,L,M

51781-08100

Unavailable

12

KNOB, HANDLE DAMPER | R,J,K,L,M

51730-15000

Unavailable

13

STOPPER, DAMPER KNOB | R,J,K,L,M

51744-08100

Unavailable

14

NUT | R,J,K,L,M This part replaces 08314-11108.

08314-3110A

$1.99

15

WASHER | RJ,K,L,M

09160-10035

$1.78

16

PIN | R,J,K,L,M This part replaces 04111-20308.

04111-2030A

$1.50

17

CLAMP, HANDLEBAR UPPER | R,J,K,L,M; TO 56211-33000 CHROME-PLATED This part replaces 56211-15000.

56211-33000

Unavailable

17

CLAMP, HANDLEBAR UPPER | R,J,K,L; BLACK PAINTED

56211-33000

Unavailable

18

CLAMP, HANDLEBAR LOWER | R,J,K,L,M; TO 56221-15000 CHROME-PLATED This part replaces 56221-15000.

56221-33000

Unavailable

18

CLAMP, HANDLEBAR LOWER | R,J,K,L; BLACK PAINTED

56221-33000

Unavailable

19

BOLT | R,J,K,L,M This part replaces 01221-08307.

01204-08307

$1.99

20

.LOCK WASHER | R,J,K,L,M This part replaces 08321-21088.

08321-01087

$2.13

21

LOCK ASSY, STEERING | R,J,K,L,M; REVERSIBLE KEY This part replaces 50000-25837.

51910-25311

$40.33

22

SCREW | R,J

02111-05107

Unavailable

22

SCREW | K,L,M This part replaces 02111-05127.

02112-05127

$1.97

23

LOCK WASHER | R,J,K,L,M This part replaces 08321-21058.

08321-0105A

$1.84

24

MIRROR ASSY,RR | R,J,K,L; 8MM This part replaces 56500-31010.

56500-23412

$70.29

24

MIRROR ASSY,RR | M; OPT 10MM This part replaces 56500-31011.

56500-31014

$48.02

24

MIRROR ASSY,RR | R,J,K,L; L: 1080, l: 116 8MM This part replaces 56600-31010.

56600-23412

$82.68

24

MIRROR ASSY,RR | M; 10MM This part replaces 56600-31011.

56600-31014

$48.02

25

HANDLEBAR | K,M

56111-15103

Unavailable

26

HANDLEBAR | R,J,L This part replaces 56110-15600.

56111-15103

Unavailable

27

CLAMP, CABLE | R,J; TO 09403-16303

09403-00006

Unavailable

27

CLAMP, CABLE | L,M

09403-16303

Unavailable

28

CLIP, CABLE | R,J,K,L,M

09408-00002

$2.30

29

CLIP, CLUTCH CABLE | R; L:149

09407-14401

$3.77

30

CLIP, CLUTCH CABLE | J; TO 09407-14301 L:140

09410-00006

Unavailable

30

CLAMP | L,M This part replaces 09407-14301.

09407-18302

$2.28

31

CABLE,FR BRAKE | R,J,K,L,M; L:1280, l:75; Includes Item(s) 32 - 34 This part replaces 58100-15100.

58100-15101

Unavailable

32

.NUT | R,J,K; 6SCREW This part replaces 09150-06001.

09150-06010

$3.10

33

.PIN (13X18) | R,J,K,L,M This part replaces 09209-13003.

09209-13018

$3.42

34

DUST SEAL | R,J,K

09287-05001

Unavailable

35

.COTTER PIN | R,J,K,L,M This part replaces 04111-20158.

04111-2015A

$1.49

36

CABLE,CLUTCH | R,J,K,L,M; L:1080, l:116; Includes Item(s) 37 - 38 This part replaces 58200-15100.

58200-33601

Unavailable

37

NUT | R,J,K This part replaces 08312-11088.

08310-00087

$2.13

38

DUST SEAL | R,J,K

09287-10001

Unavailable

39

CABLE,THROTTLE | R,J,K,L,M; L1:730, L2:347, l1:89; Includes Item(s) 40 This part replaces 58300-15101.

58300-15102

Unavailable

40

SEAL,DUST | R,J,K,L This part replaces 09287-07002.

09287-07006

$2.30

41

BAND (L:120) | R,J,K; L:123 TO 09407-12402 This part replaces 09410-00030.

09407-12402

$3.04

41

CLAMP, SWITCH HARNESS | L,M

09407-12402

$3.04

42

CLAMP | L,M This part replaces 09407-18301.

09407-18302

$2.28

43

CUSHION, REAR VIEW MIRROR | L

56700-32000

Unavailable

44

CUSHION, REAR VIEW MIRROR | M

56700-31000

Unavailable

45

NUT | L,M This part replaces 08312-31108.

08310-00107

$2.19
