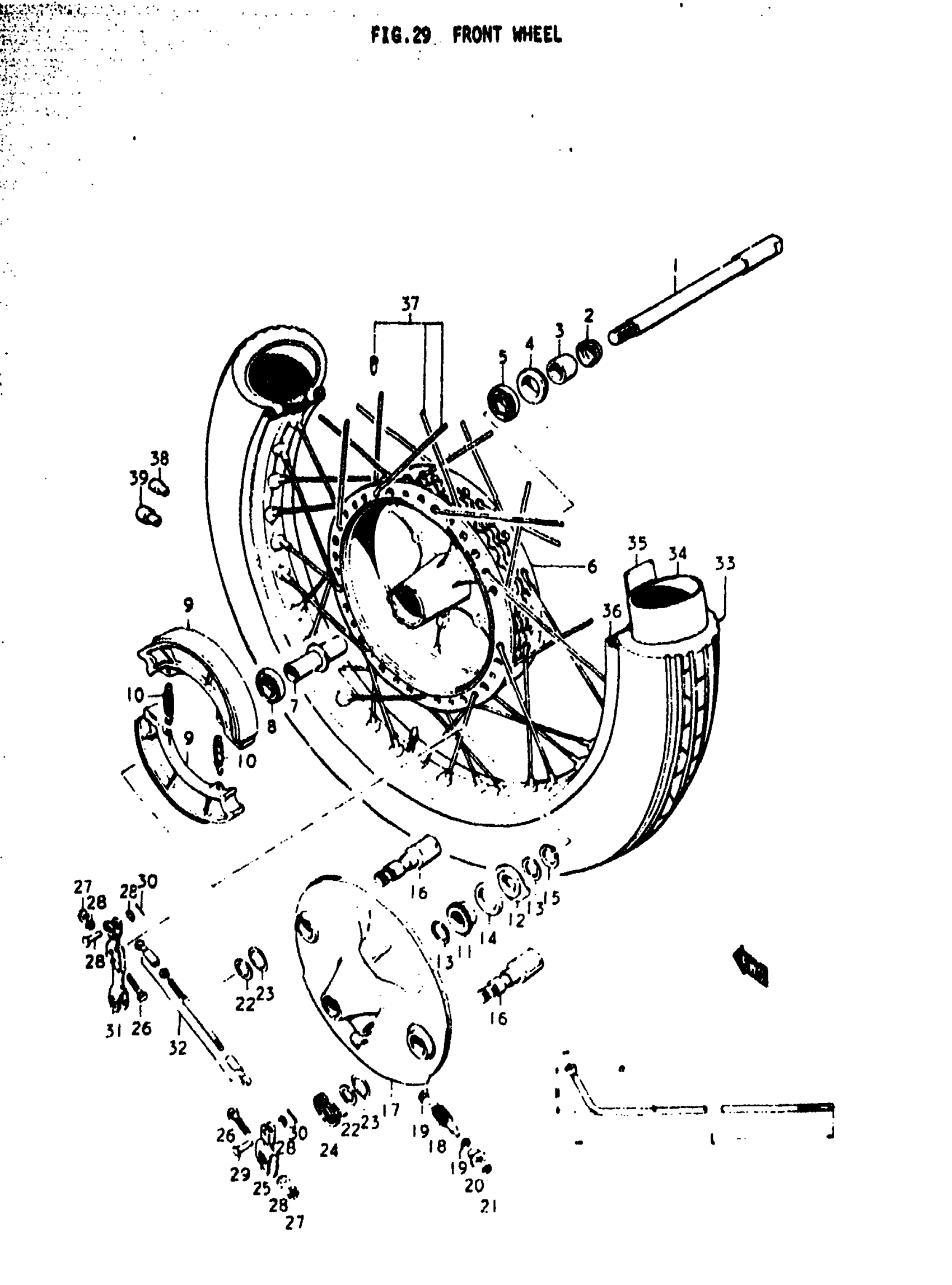

Suzuki T500J (1975) FRONT WHEEL Diagram

#

Description
Price

1

AXLE, FRONT | R,J,K,L,M; L:229

54711-15000

Unavailable

2

COVER, HUB DRUM DUST | R,J,K,L,M

54892-11000

Unavailable

3

SPACER, AXIE | R,J,K,L,M; 15x22x25.4

09180-15001

Unavailable

4

OIL SEAL, HUB DRUM | R,J,K,L,M; 22x33x6.0

09284-22001

Unavailable

5

BEARING | R,J,K,L,M

08113-60020

$16.01

6

DRUM, FRONT HUB | R,J,K,L,M

54110-15000

Unavailable

7

SPACER, HUB BEARING | R,J,K,L,M

54730-11000

Unavailable

8

BEARING, LH | R,J,K,L,M This part replaces 08143-62020.

08143-62027

$16.01

9

SHOE SET,BRAKE | R,J,K,L,M This part replaces 54410-15000.

54400-15820

Unavailable

10

SPRING, BRAKE SHOE | R,J,K,L,M

55420-30000

$4.48

11

GEAR, SPEEDOMETER | R,J,K,L,M

54611-15000

Unavailable

12

DRIVER | R,J,K,L,M This part replaces 54660-11030.

54660-11031

$12.67

13

THRUST WASHER | R,J,K,L,M; 22.5x27x1.0

09160-22001

$2.47

14

SEAL,OIL(26X38X | R,J,K,L,M; 26x38x4.0 This part replaces 09285-26001.

09285-26005

Unavailable

15

CIRCLIP | R,J,K,L,M This part replaces 08331-11229.

08331-31229

$2.48

16

SHAFT, BRAKE CAM | R

54440-11002

Unavailable

16

CAM, BRAKE | J,K; TO 54440-11003 This part replaces 54440-33001.

54440-33002

Unavailable

16

CAM, BRAKE | L,M; FROM 54440-33000 This part replaces 54440-11003.

64440-38A00

Unavailable

17

PANEL, FRONT HUB | R,J,K; TO 54210-15001

54210-15000

Unavailable

17

PANEL | L,M This part replaces 54210-15001.

54210-15002

Unavailable

18

PINION, SPEEDOMETER | R,J,K,L,M

54621-11000

Unavailable

19

WASHER,5.1X9X0. | R,J,K,L,M; 5.1x9x0.4 This part replaces 09160-05001.

09160-05001-A05

$1.87

20

BUSH | R,J,K,L,M This part replaces 54632-11020.

54632-49200

Unavailable

21

OIL SEAL, PINION | R,J,K,L,M; 4.8x10x3.0

09289-06001

$4.58

22

WASHER | R,J,K,L,M; 15x24x1.6 This part replaces 09160-15001.

09160-15048

$2.56

23

O RING (ID:14.8,D:2.40) | R,J,K,L,M; 14.8x19.6x2.4 This part replaces 09280-15001.

09280-15003

$1.76

24

SPRING | R,J,K,L,M This part replaces 09448-30001.

09448-30001-XC0

Unavailable

25

LEVER, BRAKE CAM 2ND | R,J,K,L,M

54461-11000

Unavailable

26

BOLT, ADJUSTER | R,J,K,L,M This part replaces 09100-06050.

09100-06150

$2.30

27

.NUT | R,J,K,L,M This part replaces 08311-11068.

08310-00067

$2.13

28

WASHER | R,J,K,L This part replaces 08322-21068.

08322-01067

$2.13

29

PIN, CAM LEVER | R,J,K,L,M

09200-06001

Unavailable

30

PIN | R,J,K,L,M This part replaces 04111-12108.

04111-1210A

$1.50

31

LEVER, BRAKE CAM 1ST | R,J,K,L,M

54450-11000

Unavailable

32

NO DESCRIPTION AVAILABLE | R,J This part replaces 54400-15813.

54400-15830

Unavailable

32

BRAKE LEVER ROD SET | K,L,M This part replaces 54400-11835.

54400-18840

Unavailable

33

TIRE, FRONT | R,J,K,L; 3.25-19

55100-15011

Unavailable

33

TIRE | M This part replaces 55100-15012.

55100-31600

Unavailable

34

TUBE | R,J,K,L,M; 3.25-19 This part replaces 55200-15010.

55200-44611

$33.73

35

PROTECTOR, WHEEL INNER TUBE FRONT | R,J,K,L,M; 3.25-19 This part replaces 55261-15010.

55261-15020

$3.15

36

RIM, WHEEL | R,J,K,L,M; 1.35Bx19

55311-15020

Unavailable

37

SPOKE SET, FRONT | R,J,K,L,M

55320-15807

Unavailable

38

BALANCER WHEEL S | R,J,K,L,M; ( 0~3)

55411-37000

Unavailable

39

BALANCER WHEEL L | R,J,K,L,M; ( 0~3)

55412-37000

Unavailable
