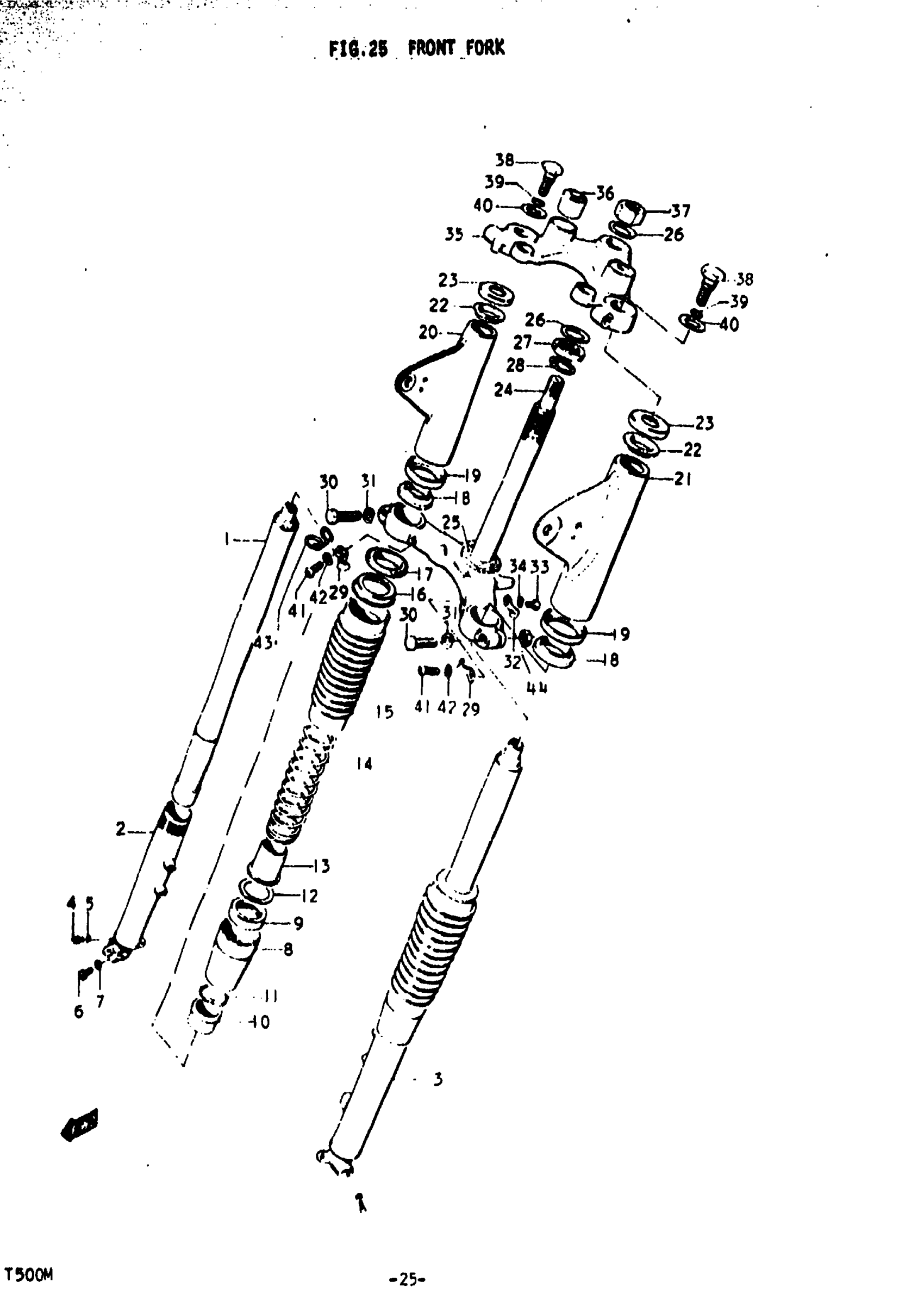

Suzuki T500J (1975) FRONT FORK Diagram

#

Description
Price

0

FORK ASSY, FRONT | R; TO 51100-15111

51100-15600

Unavailable

0

FORK ASSY, FRONT | J

51100-15111

Unavailable

0

NO DESCRIPTION AVAILABLE | K; TO 51100-15113 This part replaces 51100-15112.

51106-15113

Unavailable

0

FORK ASSY, FRONT | L

51100-15113

Unavailable

0

NO DESCRIPTION AVAILABLE | M; Includes Item(s) 1 - 44 This part replaces 51100-15113-019.

51106-15113

Unavailable

1

INNER TUBE | R,J,K,L,M

51110-15010

Unavailable

2

OUTER TUBE, RH | R,J,K,L,M; CHROME-PLATED

51130-15011

Unavailable

3

OUTER TUBE, LH | R,J,K,L,M; CHROME-PLATED

51140-15011

Unavailable

4

PLUG, DRAIN | R,J,K,L,M; CHROME-PLATED

51182-03621

Unavailable

5

GASKET, DRAIN PLUG | R,J,K,L,M; 4.2x7.3x1.5

51183-03010

$2.07

6

BOLT | R,J,K,L,M This part replaces 01122-08258.

01500-08257

$2.50

7

.LOCK WASHER | R,J,K,L,M This part replaces 08321-21088.

08321-01087

$2.13

8

NUT, CUTER TUBE | R,J,K,L,M

51150-15010

Unavailable

9

OIL SEAL | R,J,K,L This part replaces 51153-16510.

51153-16511

Unavailable

9

OIL SEAL | M

51153-16511

Unavailable

10

GUIDE, INNER TUBE | R,J,K,L,M

51152-11010

Unavailable

11

O RING, OUTER TUBE | R,J,K,L,M; ID:39.3,D.:3.0

51154-11010

Unavailable

12

SEAT, SPRING | R,J,K,L,M; 35x48x1.6

51158-11010

Unavailable

13

DUST SEAL | R,J,K,L,M

51173-11010

Unavailable

14

SPRING | R,J,K,L,M

51171-15010

Unavailable

15

BOOT | R,J,K,L,M

51571-11010

Unavailable

16

GUIDE, BOOT | R,J,K,L,M

51573-11010

Unavailable

17

SPACER, SPRING | R,J,K,L,M

51172-15110

Unavailable

18

CUSHION, BRACKET LOWER | R,J,K,L,M

51553-15110

Unavailable

19

SEAT, HEADLAMP BRACKET | R,J,K,L,M

51551-15110

Unavailable

20

BRACKET, HEADLAMP RH | R; TO 51530-15110

51530-15600

Unavailable

20

BRACKET, HEADLAMP RH | J; CHROME-PLATED

51530-15110

Unavailable

20

BRACKET, HEADLAMP RH | K,L,M

51530-15111

Unavailable

21

BRACKET, HEADLAMP LH | R; TO 51540-10110

51540-15600

Unavailable

21

BRACKET, HEADLAMP LH | J; CHROME-PLATED

51540-15110

Unavailable

21

BRACKET, HEADLAMP LH | K,L,M

51540-15111

Unavailable

22

CUSHION, BRACKET UPPER | R,J,K,L,M

51556-15010

Unavailable

23

COVER, BRACKET UPPER | R,J,K,L,M

51555-15010

Unavailable

24

STEM, STEERLNG | R,J,K,L,M

51410-15110

Unavailable

25

RACE, OUTER | R,J,K,L,M

51621-08000

Unavailable

26

WASHER, STEERING STEM | R,J,K,L,M; 18x20x2.3

51356-11010

Unavailable

27

NUT, STEERING STEM | R,J,K,L,M

51632-01600

Unavailable

28

LOCK WASHER, STEM | R,J; 26x34x2.3K,L,M; 26x34x2.3

51641-08010

Unavailable

29

CLIP, METER CABLE | R,J,KL,M

51453-30010

Unavailable

30

BOLT, INNER TUBE | R,J; 10x36

51451-15110

Unavailable

30

BOLT, INNER TUBE | J,K,L; 10x38

51451-15111

Unavailable

30

BOLT | M This part replaces 51451-15113.

01104-10388

$2.72

31

LOCK WASHER | R,J,K,L,M This part replaces 08321-21108.

08321-01107

$1.84

32

CLIP, BRAKE CABLE | R,J,K,L,M

51453-03010

$5.50

33

SCREW | R,J,K,L,M This part replaces 02112-06108.

02112-06107

$1.49

34

LOCK WASHER | R,J,K,L,M This part replaces 08321-21068.

08321-01067

$2.13

35

HEAD, STEORING STEM | R,J

51310-15110

Unavailable

35

HEAD, STEARING STEM | K,L,M; TO 51310-15112

51310-15111

Unavailable

35

HEAD, STEARING STEM | K,L,M; CHROME-PLATED

51310-15112

Unavailable

36

BUSHING | R,J,K,L,M

51330-15010

Unavailable

37

NUT | R,J,K,L,M This part replaces 08312-11188.

08310-0018A

$3.30

38

BOLT, FORK UPPER | R,J,K,L,M

51351-11011

Unavailable

39

O RING | R,J,K,L,M; ID:8.8, D. :2.4

51181-11010

Unavailable

40

WASHER, FORK UPPER | R,J,K; 14x30x2.3 TO 51354-11010

51354-27100

Unavailable

40

WASHER, FORK UPPER | L,M

51354-11010

Unavailable

41

SCREW | R,J,K,L,M This part replaces 02112-06108.

02112-06107

$1.49

42

LOCK WASHER | R,J,K,L,M This part replaces 08321-21068.

08321-01067

$2.13

43

CLAMP | L,M

51455-15310

Unavailable

44

NUT | R,J This part replaces 08313-11107.

08313-10107

$2.50
