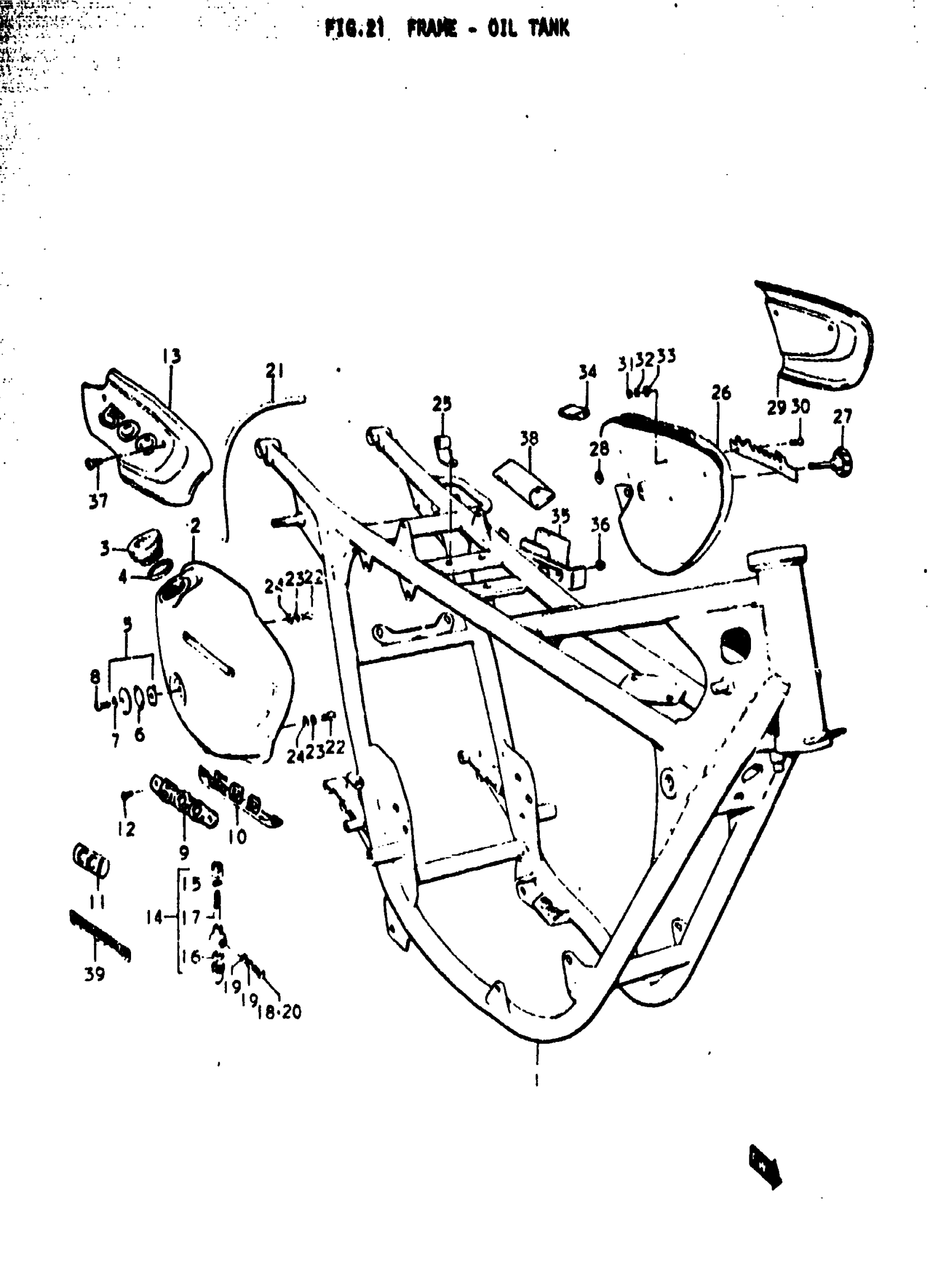

Suzuki T500J (1975) FRAME - OIL TANK Diagram

#

Description
Price

1

FRAME | R,J,K,L,M

41100-15102-019

Unavailable

2

NO DESCRIPTION AVAILABLE | R This part replaces 44610-15101-195.

44610-15101-019

Unavailable

2

NO DESCRIPTION AVAILABLE | R This part replaces 44610-15101-216.

44610-15101-019

Unavailable

2

NO DESCRIPTION AVAILABLE | J This part replaces 44610-15101-263.

44610-15101-019

Unavailable

2

NO DESCRIPTION AVAILABLE | J This part replaces 44610-15101-264.

44610-15101-019

Unavailable

2

NO DESCRIPTION AVAILABLE | K This part replaces 44610-15101-279.

44610-15101-019

Unavailable

2

NO DESCRIPTION AVAILABLE | K This part replaces 44610-15101-715.

44610-15101-019

Unavailable

2

NO DESCRIPTION AVAILABLE | L This part replaces 44610-15101-00F.

44610-15101-019

Unavailable

2

NO DESCRIPTION AVAILABLE | M This part replaces 44610-15101-797.

44610-15101-019

Unavailable

3

CAP, OIL TANK | R,J,K,L,M

44651-11040

$15.05

4

GASKET,OIL TANK | R,J,K,L,M This part replaces 44661-11000.

44661-11001

$3.66

5

LENS SET, OIL INSPECTION | R,J,K,L,M; Includes Item(s) 6 - 7

44640-11843

Unavailable

6

O RING | R,J,K,L,M

09280-23001

Unavailable

7

GASKET | R,J,K,L,M

09168-05001

$1.98

8

SCREW | R,J,K,L,M This part replaces 02112-05168.

02112-05167

$1.97

9

EMBLEM, FRAME COVER | R; 500

68141-15100

Unavailable

10

EMBLEM, FRAME COVER | K,L

68141-15600

Unavailable

10

EMBLEM, FRAME COVER | M

68141-15601

Unavailable

11

EMBLEM, CCI | R,J,K,L,M

68171-26000

$3.59

12

SCREW | R,K,L,M This part replaces 02111-03048.

02112-03047

$2.15

13

ACCESSORY, OIL TANK | J

47161-15600

Unavailable

14

OUTLET ASSY, OIL TANK | R,J,K,L; Includes Item(s) 15 - 19

44700-11827

Unavailable

15

GASKET | R,J,K,L,M

44733-11030

$2.28

16

GASKET, FILTER CUP | R,J,K,L; FROM 44346-02030

44346-05110

Unavailable

17

FILTER | R,J,K,L,M

44720-11030

$5.38

18

UNION BOLT | R,J,K,L,M

09360-06003

$3.76

19

GASKET | R,J,K,L,M This part replaces 09168-06002.

09168-06004

$1.49

20

UNION BOLT | M

09361-14001

Unavailable

21

HOSE (5X8X2000) | R,J,K,L,M; L:200 This part replaces 09344-05005.

09351-50803-00B

$9.10

22

BOLT | R,J This part replaces 01112-06128.

01500-06127

$1.97

22

FRM CVR,SCREW(6 | K,L,M This part replaces 09128-06011.

09128-06092

$1.92

23

LOCK WASHER | R,J,K,L,M This part replaces 08321-21068.

08321-01067

$2.13

24

WASHER | R,J,K,L,M This part replaces 08322-21068.

08322-01067

$2.13

25

CLAMP, BROATHER HOSE | R,J,K,L,M

09403-08301

Unavailable

26

NO DESCRIPTION AVAILABLE | R This part replaces 47211-15100-195.

47211-15100-019

Unavailable

26

NO DESCRIPTION AVAILABLE | R This part replaces 47211-15100-216.

47211-15100-019

Unavailable

26

NO DESCRIPTION AVAILABLE | J This part replaces 47211-15100-263.

47211-15100-019

Unavailable

26

NO DESCRIPTION AVAILABLE | J This part replaces 47211-15100-264.

47211-15100-019

Unavailable

26

NO DESCRIPTION AVAILABLE | K This part replaces 47211-15100-279.

47211-15100-019

Unavailable

26

NO DESCRIPTION AVAILABLE | K This part replaces 47211-15100-715.

47211-15100-019

Unavailable

26

NO DESCRIPTION AVAILABLE | L This part replaces 47211-15100-00F.

47211-15100-019

Unavailable

26

NO DESCRIPTION AVAILABLE | M This part replaces 47211-15100-797.

47211-15100-019

Unavailable

27

KNOB, FRAME COVER | R,J,K,L,M

47230-01000

Unavailable

28

STOPPER, FRAME COVER KNOB | R,J,K,L,M

09152-06001

$1.75

29

ACCESSORY, FRAME COVER | J

47261-15600

Unavailable

30

SCREW | R,K,L,M This part replaces 02111-03087.

02112-0308A

$1.80

30

SCREW | J This part replaces 02111-03108.

02112-03107

$1.49

31

NUT | R,J,K,L,M This part replaces 08311-11038.

08310-0003B

$2.83

32

WASHER,LOCK | R,J,K,L,M This part replaces 08321-21038.

09162-03001

$1.49

33

WASHER | J This part replaces 08322-21038.

08322-01037

$1.93

34

CUSHION, FRAME COVER LH | R,J,K,L,M

09329-02001

Unavailable

35

HOLDER, TOOL | R,J

41550-15100

Unavailable

35

HOLDER, TOOL | K,L,M

41550-15101

Unavailable

36

NUT, LICENSE HOLDER | R,J,K,L,M This part replaces 08313-11067.

08313-10067

$1.84

37

SCREW | J This part replaces 02111-03087.

02112-0308A

$1.80

38

TOOL SET | R,J,K,L,M

09800-00123

Unavailable

39

LABEL, COMPANY NAME | L,M

68363-26200

Unavailable
