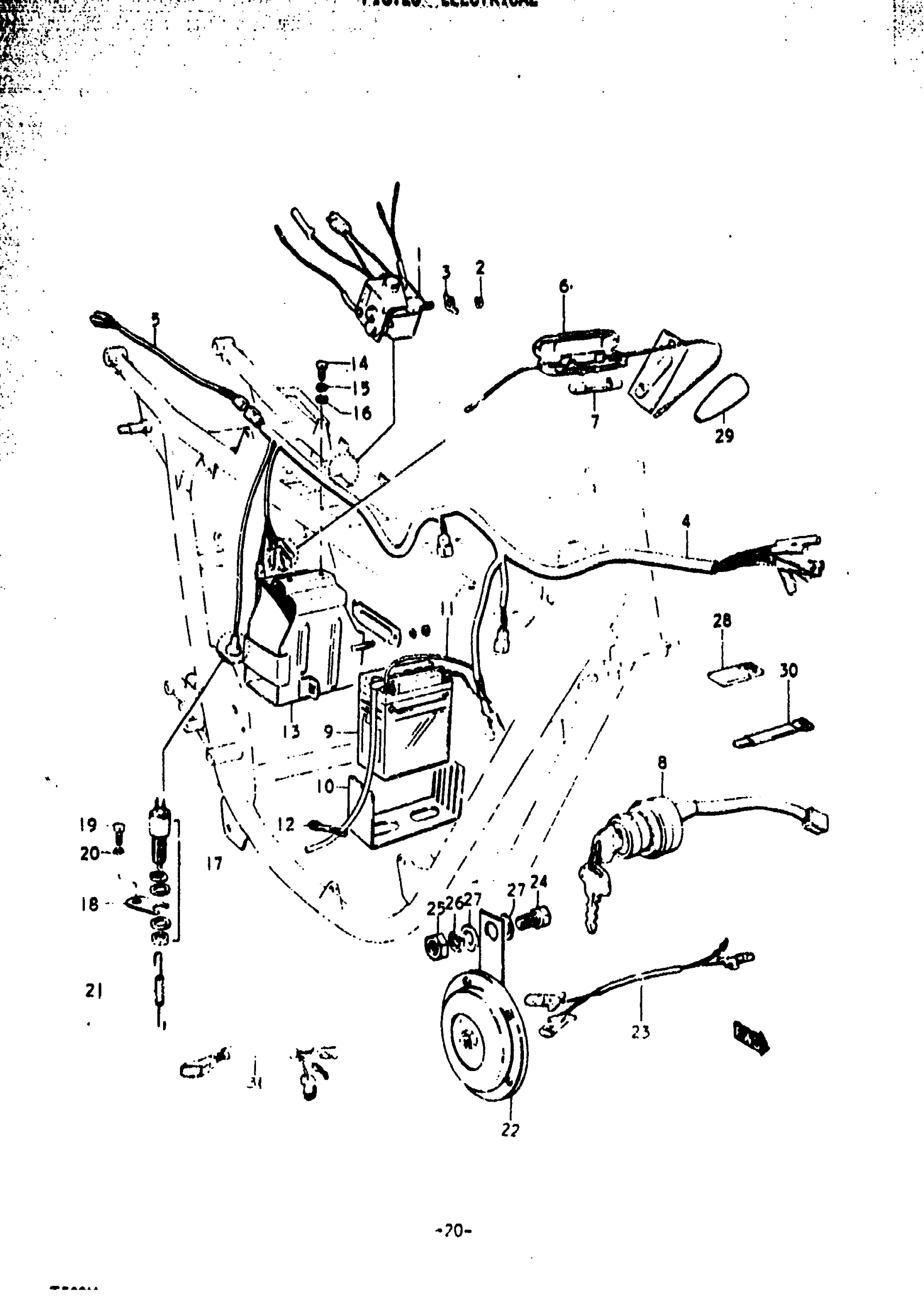

Suzuki T500J (1975) ELECTRICAL Diagram

#

Description
Price

1

RECTIFIER ASSY | R,J,K,L; TO 32800-18521 This part replaces 32800-18520.

32800-18521

Unavailable

1

RECTIFIER ASSY | M

32800-18521

Unavailable

2

NUT | R,J,K,L,M This part replaces 08311-11058.

08310-00057

$1.84

3

WASHER, RECTIFIER | R,J,K,L,M

09169-05001

Unavailable

4

WIRING HARNESS (1) | R,J,K,L,M

36610-15104

Unavailable

5

WIRING HARNESS (2) | R,J,K,L; TO 36620-15900

36620-15000

Unavailable

5

WIRING HARNESS (2) | M

36620-15900

Unavailable

6

FUSE CASE ASSY | R,J,K,L,M; Includes Item(s) 7 This part replaces 36740-15010.

36740-15011

$9.38

7

FUSE | R,J,K,L; 15A

09481-15001

$2.06

8

SWITCH ASSY IGN | R,J This part replaces 37110-15110.

37110-31017

Unavailable

8

SWITCH ASSY, IGNITION | K

37110-15111

Unavailable

8

SWITCH ASSY IGN | L,M This part replaces 37110-15112.

37110-31017

Unavailable

9

BATTERY | R,J,K; 12V, 7AH TO 33610-33120

33610-01320

Unavailable

9

BATTERY | L,M

33610-33210

Unavailable

10

PROTECTOR, BATTERY | R,J,K,L,M

33651-15000

Unavailable

11

CABLE, BATTERY | R,J,K,L,M

36860-15020

Unavailable

12

CLAMP, BETTERY EXHAUST PIPE | R,J,K; TO 09404-07702 This part replaces 09401-00001.

09404-07702

Unavailable

12

HOLDER, BATTERY PIPE | L,M

09404-07702

Unavailable

13

HOLDER, BATTERY | R,J,K,L,M This part replaces 41540-15001.

41540-15002

Unavailable

14

BOLT | R,J,K,L,M This part replaces 01122-08258.

01500-08257

$2.50

15

.LOCK WASHER | R,J,K,L,M This part replaces 08321-21088.

08321-01087

$2.13

16

WASHER (8.5X18X2.0) | R,J This part replaces 09160-08013.

09160-08120

$2.19

16

WASHER | K,L,M This part replaces 08322-21088.

08322-01087

$2.13

17

SWITCH ASSY, STOP LAMP | R,J,K,L This part replaces 37610-53012.

37610-53011

$30.75

17

SWITCH ASSY, BRAKE LAMP | M

37610-53011

$30.75

18

BRACKET, LAMP SWITCH | R,J,K,L,M

37752-15001

Unavailable

19

BOLT | R,J,K,L,M This part replaces 01112-06128.

01500-06127

$1.97

20

LOCK WASHER | R,J,K,L,M This part replaces 08321-21068.

08321-01067

$2.13

21

SPRING, LAMP SWITCH | R,J,K,L,M

09443-06012

$3.16

22

HORN | R,J; TO 38500-15641

38500-18410

Unavailable

22

HORN | K,L,M

38500-15641

Unavailable

23

LEAD WIRE, HORN | M

36870-08030

Unavailable

24

PLUG, DRAIN | R,J,K,L,M This part replaces 01122-08168.

01500-0816B

$2.50

25

NUT | R,J,K,L,M This part replaces 08312-11088.

08310-00087

$2.13

26

.LOCK WASHER | R,J,K,L,M This part replaces 08321-21088.

08321-01087

$2.13

27

WASHER | R,J,K,L,M This part replaces 08322-21088.

08322-01087

$2.13

28

CLAMP | J,K This part replaces 09403-00045.

09404-08420

$3.16

29

BOOT, FUSE LEAD WIRE | K,L,M

09287-10001

Unavailable

30

CLAMP | L,M This part replaces 09407-14301.

09407-18302

$2.28

31

LEAD WIRE, HEADLAMP | M

36852-15670

Unavailable
