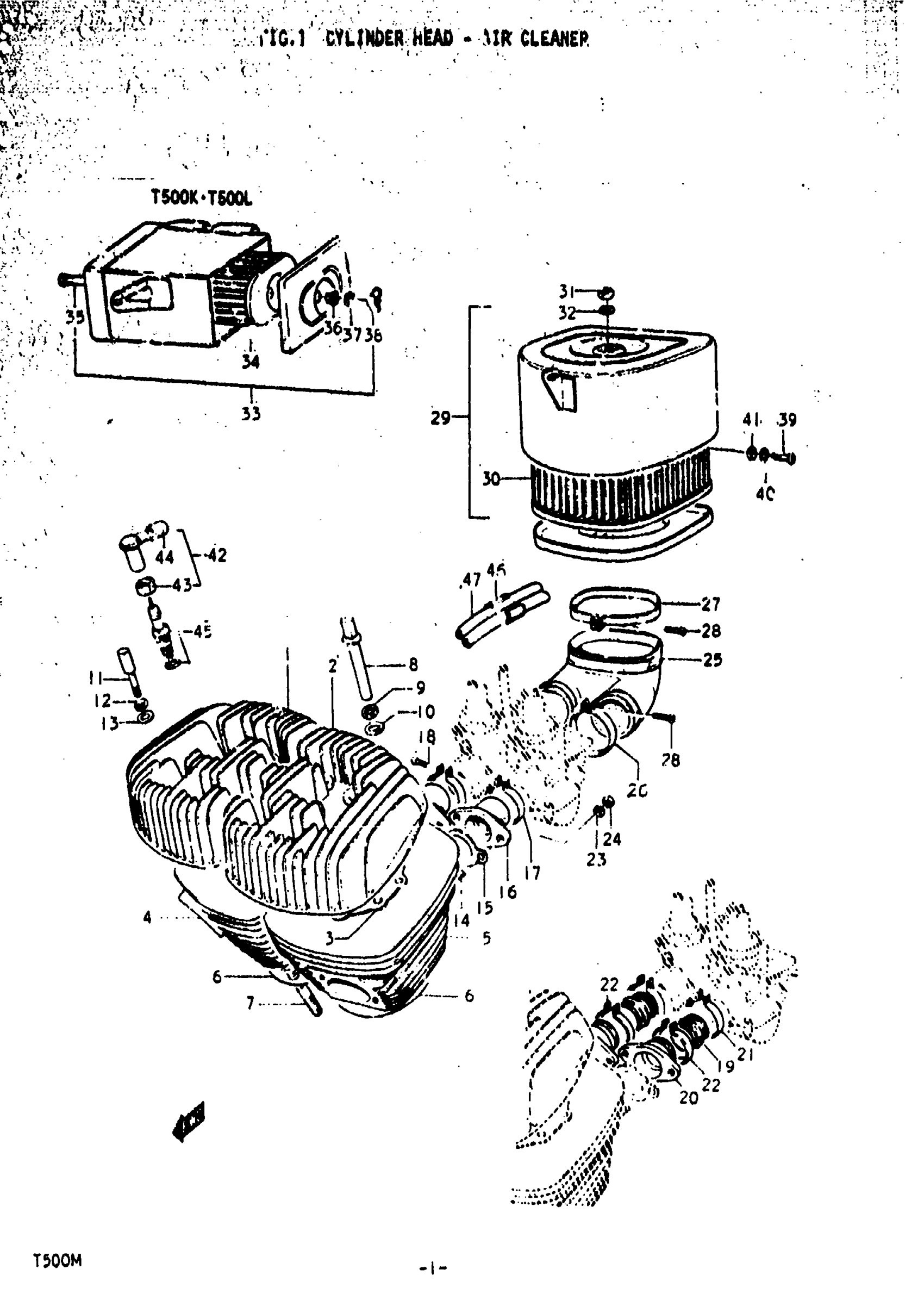

Suzuki T500J (1975) CYLINDER HEAD - AIR CLEANER Diagram

#

Description
Price

1

CYLINDER HEAD, RH | R,J,K,L,M

11111-15601

Unavailable

2

CYLINDER HEAD, LH | R,J,K,L,M

11121-15601

Unavailable

3

GASKET, CYLINDER HEAD | R,J,K,L,M

11141-15000

Unavailable

4

CYLINDER, RH | R; TO 11210-15101.

11210-15100

Unavailable

4

CYLINDER, RH | J

11210-15101

Unavailable

4

CYLINDER, RH | K; TO 11210-15301

11210-15300

Unavailable

4

CYLINDER, RH | K,L,M; T500-67730~

11210-15301

Unavailable

5

CYLINDER, LH | R; TO 11220-15101.

11220-15100

Unavailable

5

CYLINDER, LH | J

11220-15101

Unavailable

5

CYLINDER, LH | K; TO 11220-15301.

11220-15300

Unavailable

5

CYLINDER, LH | K,L,M; T500-67730~

11220-15301

Unavailable

6

GASKET,CYLINDER | R,J,K,L,M This part replaces 11241-15000.

11241-15001

Unavailable

7

10 X 85 STUD BO | R,J,K,L,M This part replaces 01421-10858.

01421-1085A

Unavailable

8

NUT, CYLINDER HEAD | R,J,K,L,M

09159-10005

Unavailable

9

WASHER,LOCK | R,J,K,L,M This part replaces 08321-21148.

08321-0114A

$2.10

10

WASHER | R,J,K,L,M This part replaces 08322-11148.

08322-01147

$1.91

11

BOLT, CYLINDER HEAD | R,J,K,L,M

09119-08001

Unavailable

12

.LOCK WASHER | R,J,K,L,M This part replaces 08321-21088.

08321-01087

$2.13

13

WASHER | R,J,K,L,M This part replaces 08322-11088.

08322-01087

$2.13

14

STUD BOLT | R,J This part replaces 01421-08168.

01421-0816A

$1.78

14

BOLT,STUD | K,L,M This part replaces 01421-08258.

01421-0825A

$2.03

15

GASKET, CARBURETOR | R,J,K,L,M

13125-15000

Unavailable

16

PIPE, INTAKE | R; TO 13110-32200 This part replaces 13110-31000.

13110-32200

Unavailable

16

PIPE, INTAKE | R,J

13110-32200

Unavailable

17

CLAMP, INTAKE PIPE | R,J

09402-50306

$4.77

18

SCREW | R,J This part replaces 02111-04207.

02112-0420A

$1.49

19

PIPE, INTAKE NO.1 | K,L,M

13111-31001

Unavailable

20

PIPE, INTAKE NO.2 | K,L,M

13112-15300

Unavailable

21

CLAMP | K,L,M This part replaces 09402-00234.

09402-54303

$3.91

21

CLAMP | K,L,M This part replaces 09402-54305.

09402-54303

$3.91

22

CLAMP, PIPE NO.2 | L,M

09402-50306

$4.77

23

.LOCK WASHER | R,J,K,L,M This part replaces 08321-21088.

08321-01087

$2.13

24

NUT | R,J,K,L,M This part replaces 08312-11088.

08310-00087

$2.13

25

HOSE, AIR CLEANER | R,J This part replaces 13881-15000.

13881-15001

Unavailable

25

HOSE, AIR CLEANER | J

13881-15001

Unavailable

25

HOSE, AIR CLEANER | K; TO 13880-15303

13881-15301

Unavailable

25

HOSE, AIR CLEANER | L; TO 13880-15304 This part replaces 13880-15303.

13880-15304

Unavailable

25

HOSE, AIR CLEANER | M

13880-15304

Unavailable

26

CLAMP | R,J,K,L,M This part replaces 09402-64304.

09402-64203

$6.58

27

CLAMP, HOSE (2) | R,J,K,L,M

09402-00163

Unavailable

28

SCREW | R,J,K,L,M This part replaces 02111-04207.

02112-0420A

$1.49

29

CLEANER ASSY, AIR | R,J; Includes Item(s) 30 - 32

13700-15071

Unavailable

30

FILTER | R,J

13780-15070

Unavailable

31

.NUT | R,J This part replaces 08311-11068.

08310-00067

$2.13

32

WASHER | R,J

13749-15070

Unavailable

33

CLEANER ASSY, AIR | K,L,M; Includes Item(s) 34 - 38

13700-15310

Unavailable

34

FILTER | K,L,M

13780-15310

Unavailable

35

BOLT | K,L,M

13726-15310

Unavailable

36

SEAL | K,L,M

13742-29010

Unavailable

37

.WASHER | K,L,M This part replaces 08322-11068.

08322-0106B

$2.26

38

NUT | K,L,M

09144-06002

Unavailable

39

SCREW | R,J,K,L This part replaces 02112-06128.

02112-06127

$1.84

39

SCREW | M This part replaces 02111-06128.

02112-06127

$1.84

40

LOCK WASHER | R,J,K,L,M This part replaces 08321-21068.

08321-01067

$2.13

41

WASHER | R,J,K,L,M This part replaces 08322-21068.

08322-01067

$2.13

42

CAP ASSY, SPARK PLUG | R,J,K,L

33503-10801

Unavailable

42

CAP, SPARK PLUG | M; Includes Item(s) 43 - 44 This part replaces 33510-22010.

33510-97313

$14.73

43

SEAL, PLUG CAP | R,J,K,L,M

33541-69010

$4.37

44

SEAL,HIGH TENSION CORD (SIDE) | R,J,K,L,M This part replaces 33542-98000.

33542-38B00

$4.34

45

SPARK PLUG | R,J,K,L; NGK, B-77HC This part replaces 09482-00003.

09482-00082

$2.98

45

SPARK PLUG ASSY | R,J,K,L; ND, W-24FS

09482-00058

Unavailable

45

SPARK PLUG | M This part replaces 09482-00052.

09482-00082

$2.98

45

SPARK PLUG | R,J,K,L,M; NGK, B-7HS OPT This part replaces 09482-00050.

09482-00082

$2.98

45

SPARK PLUG B8HS | R,J,K,L; NGK, B-8HS OPT This part replaces 09482-00057.

09482-00198

$2.93

45

SPARK PLUG ASSY | R,J,K,L; NGK, B-9H OPT

09482-00016

Unavailable

46

CLIP, OVER FLOW HOSE | K,L,M

09408-00005

Unavailable

47

HOSE | K,L,M This part replaces 09344-03019.

09351-30001-600

$3.57
