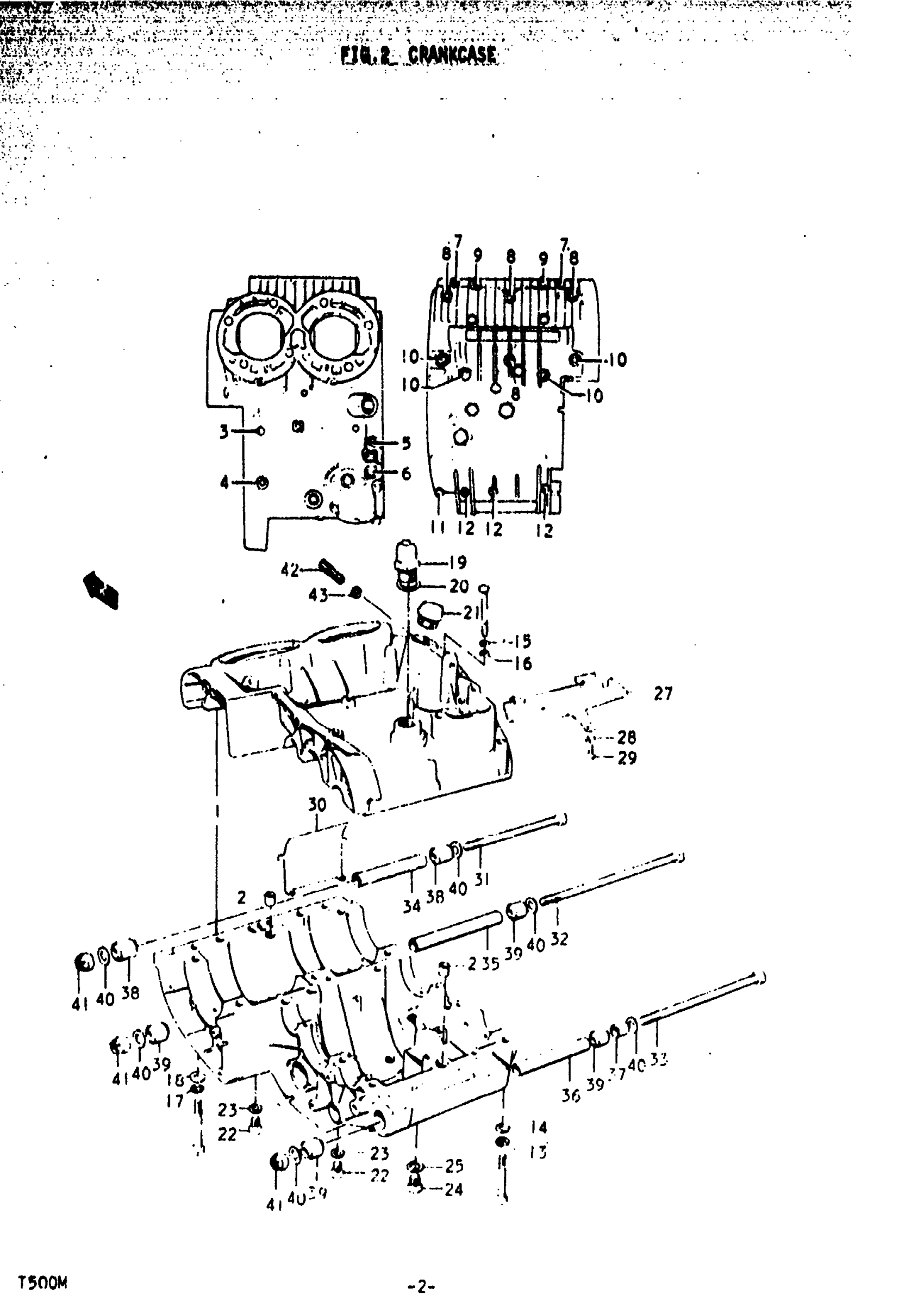

Suzuki T500J (1975) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY | R,J,K,L; TO 11300-15830

11301-15801

Unavailable

1

CRANKCASE ASSY | M; Includes Item(s) 2 - 18

11300-15830

Unavailable

2

PIN | R,J,K,L,M This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT | R,J,K,L,M This part replaces 01112-06708.

09100-06062

Unavailable

4

BOLT | R,J,K,L,M This part replaces 01122-08908.

01500-0890B

$3.88

5

BOLT | R,J,K,L,M This part replaces 01112-06958.

01500-0695B

$20.93

6

BOLT | R,J,K,L,M This part replaces 01122-08708.

01500-0870B

$3.49

7

BOLT | R,J,K,L,M This part replaces 01122-08608.

01500-0860B

$3.49

8

BOLT | R,J,K,L,M This part replaces 01122-10808.

01500-1080B

$4.68

9

BOLT, 10X65 | R,J,K,L,M This part replaces 01122-10658.

01500-1065B

$5.88

10

BOLT (1) | R,J,K,L,M; 10x100

09100-10035

Unavailable

11

BOLT | R,J,K,L,M This part replaces 01122-08658.

01500-0865B

$3.49

12

BOLT | R,J,K,L,M This part replaces 01122-08758.

01500-0875B

$4.10

13

.LOCK WASHER | R,J,K,L,M This part replaces 08321-21088.

08321-01087

$2.13

14

WASHER | R,J,K,L,M This part replaces 08322-11088.

08322-01087

$2.13

15

LOCK WASHER | R,J,K,L,M This part replaces 08321-21068.

08321-01067

$2.13

16

WASHER | R,J,K,L,M This part replaces 08322-21068.

08322-01067

$2.13

17

LOCK WASHER | R,J,K,L,M This part replaces 08321-21108.

08321-01107

$1.84

18

WASHER | R,J,K,L,M This part replaces 08322-11108.

08322-01107

$2.15

19

PLUG, BREARTHER | R,J,K,L

24821-15000

Unavailable

19

PLUG, BREATHER | M This part replaces 24821-09000.

24821-09001

$9.33

20

GASKET, BREATHER PLUG | R,J,K,L,M

09168-18003

$1.49

21

PLUG SET | R,J,K,L; 20x10 This part replaces 09259-20003.

09200-20811

$4.02

21

PLUG | M This part replaces 09259-19002.

09259-19005

$2.98

22

PLUG, DRAIN | R,J,K,L,M; 10x12

09247-10001

$2.20

23

GASKET, DRAIN PLUG | R,J,K,L,M

09168-10002

$2.13

24

PLUG, DRAIN | R,J,K,L,M; 12x12 This part replaces 09247-12102.

09247-12104

$2.73

25

GASKET, DRAIN PLUG | R,J,K,L,M

09168-12003

$1.71

27

PLATE, OIL GUIDE | R,J,K,L,M

24881-15000

Unavailable

28

LOCK WASHER | R,J,K,L,M This part replaces 08321-21068.

08321-01067

$2.13

29

SCREW | R,J,K,L This part replaces 02112-06128.

02112-06127

$1.84

29

SCREW | M This part replaces 02111-06128.

02112-06127

$1.84

30

DEFLECTOR, OIL | R,J,K,L,M

24829-15000

Unavailable

31

BOLT, ENGINE FRONT | R,J,K,L,M; 12x180

09104-12104

Unavailable

32

BOLT, ENGINE MOUNTING NO.1 | R,J,K,L,M; 12x230 This part replaces 09104-12106.

09104-12105

Unavailable

33

BOLT, ENGINE REAR | R,J,K,L,M; 12x222

09104-12105

Unavailable

34

SPACER, FRONT | R,J,K,L,M; 12.2x17x96

09180-12024

Unavailable

35

SPACER, REAR | R,J,K,L,M; 12.2x17x138

09180-12026

Unavailable

36

SPACER, REAR | R,J,K,L,M; 12.2x17x104

09180-12025

Unavailable

37

SPACER, REAR OUTER | R,J,K,L,M; 12.2x17x30

09180-12027

Unavailable

38

BUSHING (1) | R,J,K,L,M; ID:12.1, L:27

09319-12005

Unavailable

39

BUSHING (2) | R,J,K,L,M; ID:12.5, L:27

09319-12006

Unavailable

40

WASHER | R,J,K,L,M This part replaces 08322-11128.

08322-01127

$1.84

41

NUT | R,J,K,M

09159-12102

$3.23

41

NUT | L

09159-12101

Unavailable

42

BOLT, ADJUSTER | R,J,K,L,M

09119-08014

$3.55

43

NUT | R,J,K,L,M This part replaces 08312-11088.

08310-00087

$2.13
