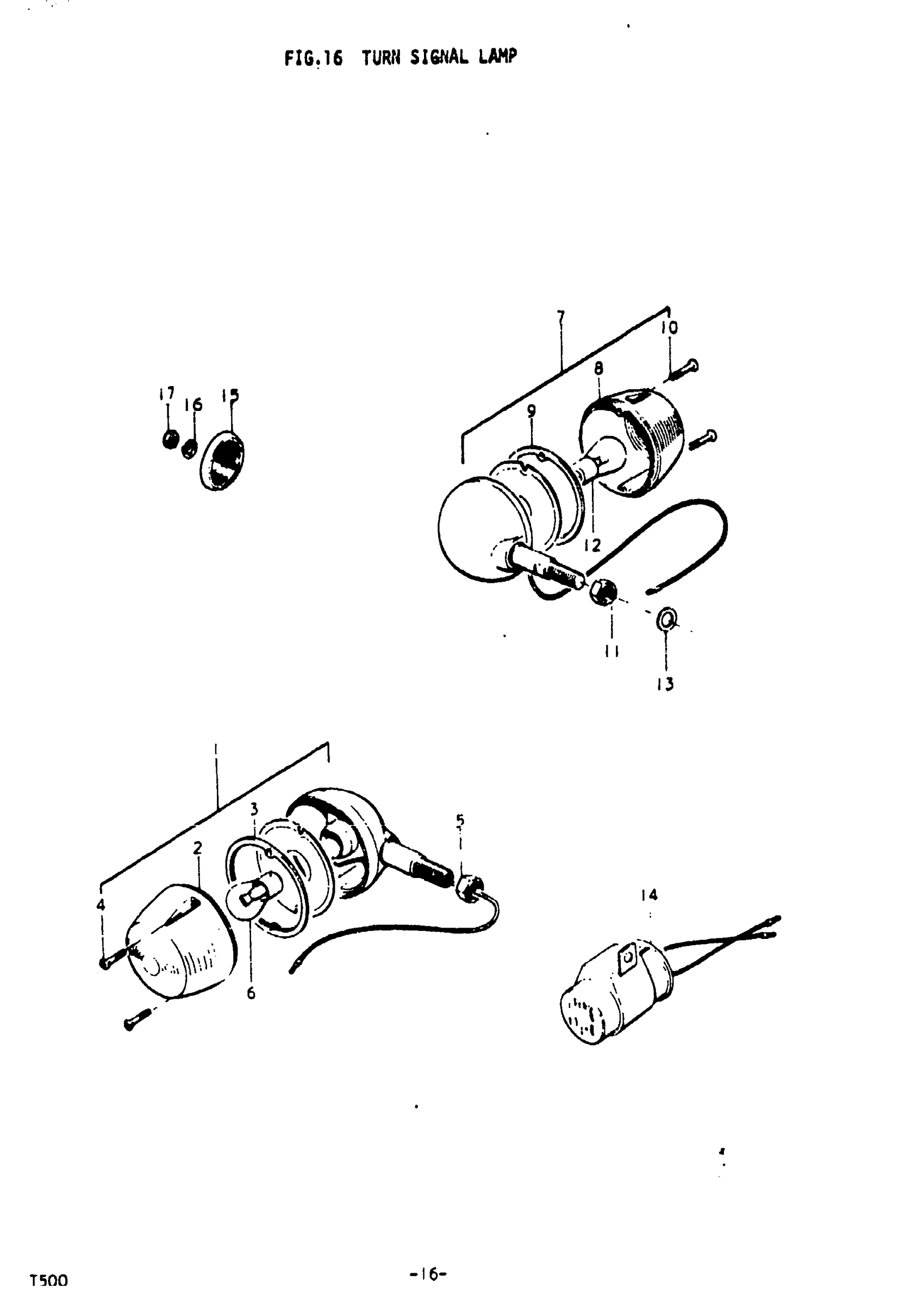

Suzuki T500-1 (1970) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, TURN @IGNAL | OPT; Includes Item(s) 2 - 6

35601-15610-999

Unavailable

2

LENS | OPT

35612-12611

$12.50

3

GASKET | OPT

35613-03610

$13.34

4

SCREW | OPT This part replaces 02131-03167.

02132-03167

$1.49

5

NUT | OPT This part replaces 08312-31108.

08310-00107

$2.19

6

BULB | OPT 12V, 32CP, US#1073

09471-12006

$3.98

7

LAMP ASSY,RR TR | OPT This part replaces 35603-18610-999.

35603-27670-999

Unavailable

7

LAMP ASSY, TURN SIGNAL | 2; OPT; Includes Item(s) 8 - 11

35603-16411-999

Unavailable

8

LENS | OPT

35652-18700

Unavailable

8

LENS | 2; OPT

35612-12611

$12.50

9

GASKET | OPT

35613-03610

$13.34

10

SCREW | OPT This part replaces 02131-03167.

02132-03167

$1.49

11

NUT | OPT This part replaces 08312-31108.

08310-00107

$2.19

12

BULB | OPT 12V, 32CP, US#1073

09471-12006

$3.98

13

WASHER | OPT This part replaces 08322-11108.

08322-01107

$2.15

14

TURN SIGNAL REL | OPT This part replaces 38610-15611.

38610-322V0

Unavailable

15

REFLEX REFLECTOR, FRONT | 2,3

35950-18612

Unavailable

16

LOCK WASHER | 2,3 This part replaces 08321-21058.

08321-0105A

$1.84

17

NUT | 2,3 This part replaces 08311-11058.

08310-00057

$1.84
