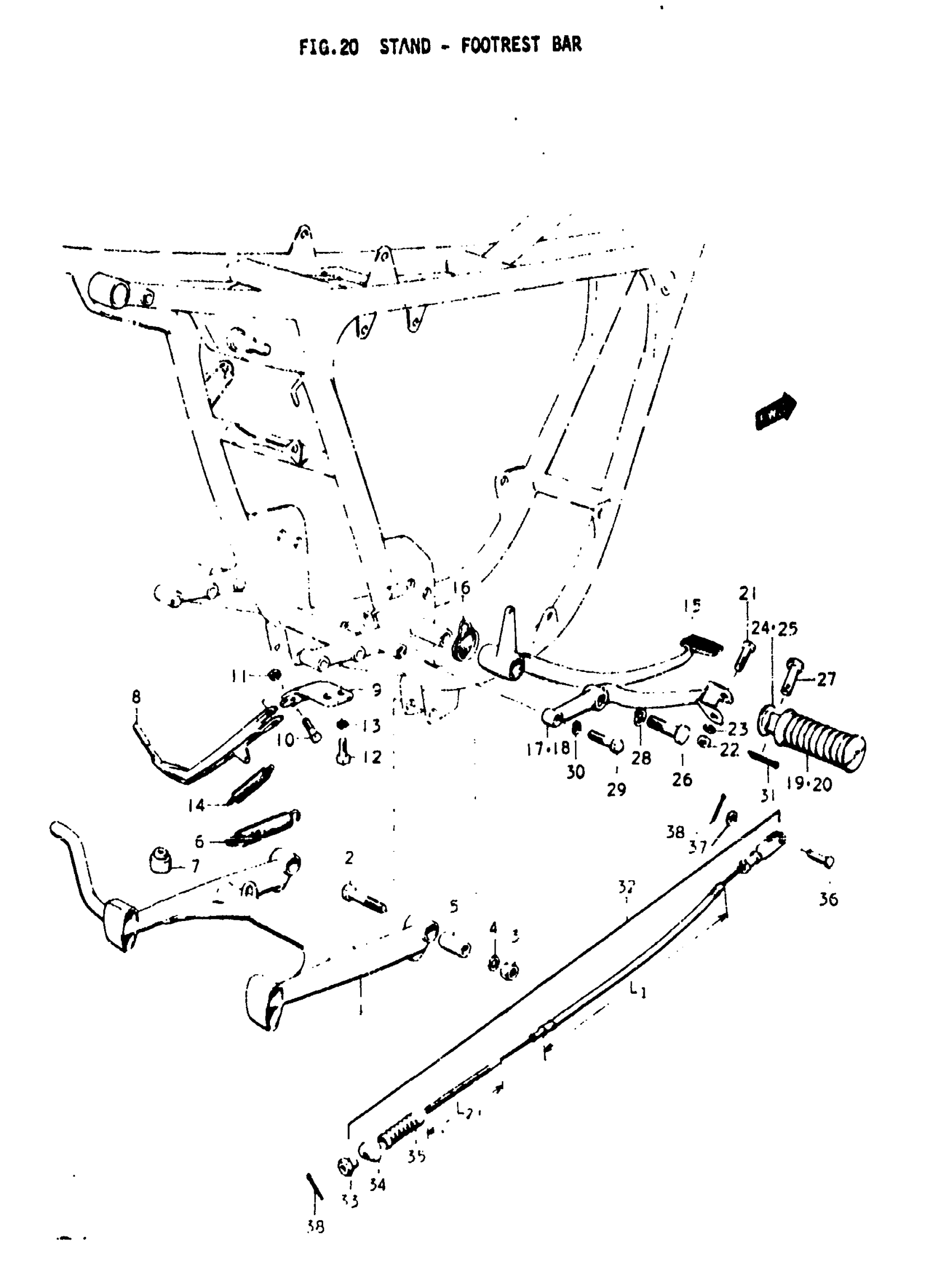

Suzuki T500-1 (1970) STAND - FOOTREST BAR Diagram

#

Description
Price

1

STAND, CENTER | 1,2,3

42100-15000

Unavailable

2

BOLT, CENTER STAND | 1,2,3; 10x48

09100-10006

Unavailable

3

NUT | 1,2,3 This part replaces 08312-11108.

08310-00107

$2.19

4

LOCK WASHER | 1,2,3 This part replaces 08321-21108.

08321-01107

$1.84

5

SPACER, CENTER STAND | 1,2,3; Includes Item(s) 6

09180-10001

$3.58

6

SPRING | 1,2,3 This part replaces 09443-16005.

09443-16005-XC0

Unavailable

7

CUSHION, CENTER STAND | 1,2,3

09321-10001

$2.61

8

STAND, PROP | 1,2,3 This part replaces 42310-50761.

42310-15100

Unavailable

9

BRACKET, PROP STAND | 1,2,3

42330-15000

Unavailable

10

BOLT | 1,2,3; 10x27 This part replaces 09100-10007.

09100-10287

$3.48

11

NUT | 1,2,3 This part replaces 08312-31108.

08310-00107

$2.19

12

BOLT | 1,2,3 This part replaces 01111-10258.

01500-10257

$3.85

13

LOCK WASHER | 1,2,3 This part replaces 08321-21108.

08321-01107

$1.84

14

SPRING | 1,2,3 This part replaces 09443-14005.

09443-14017

$3.04

15

PEDAL, BRAKE | 1,2,3

43110-15000

Unavailable

16

SPRING, BRAKE PEDAL | 1,2,3

09448-39001

Unavailable

17

BAR, FOOTREST RH | 1,2,3

43510-15000

Unavailable

18

BAR, FOOTREST LH | 1,2,3

43520-15000

Unavailable

19

RUBBER, FOOTREST | 1,2,3

43550-16400

Unavailable

20

RUBBER, FOOTREST | 1,2,3

43612-03001

$5.15

21

BOLT, FOOTREST | 1,2,3

09111-06005

Unavailable

22

.NUT | 1,2,3 This part replaces 08311-11068.

08310-00067

$2.13

23

WASHER | 1,2,3 This part replaces 08322-21068.

08322-01067

$2.13

24

WASHER | 1,2,3 This part replaces 09160-22002.

09160-22033

$3.89

25

WASHER | 1,2,3 This part replaces 09160-19006.

09160-19024

$2.65

26

BOLT, FOOTREST FRONT | 1,2,3

09104-12101

Unavailable

27

PIN, FOOTREST | 1,2,3

09200-06010

$1.72

28

LOCK WASHER | 1,2,3 This part replaces 08321-21128.

08321-01127

$2.06

29

BOLT | 1,2,3; TO 01221-08357

01211-08357

Unavailable

30

.LOCK WASHER | 1,2,3 This part replaces 08321-21088.

08321-01087

$2.13

31

COTTER PIN | 1,2,3

04111-20188

Unavailable

32

CABLE ASSY, REAR BRAKE | 1,2,3; L1:430, L2:115; Includes Item(s) 33 - 35

58500-15001

Unavailable

33

.NUT | 1,2,3 This part replaces 09150-06001.

09150-06010

$3.10

34

.PIN (13X18) | 1,2,3 This part replaces 09209-13003.

09209-13018

$3.42

35

BOOT | 1,2,3

09287-05001

Unavailable

36

PIN | 1,2,3

09200-05001

$1.65

37

WASHER | 1,2,3 This part replaces 08322-21068.

08322-01067

$2.13

38

.COTTER PIN | 1,2,3; TO 04111-20208 This part replaces 04111-20158.

04111-2015A

$1.49
