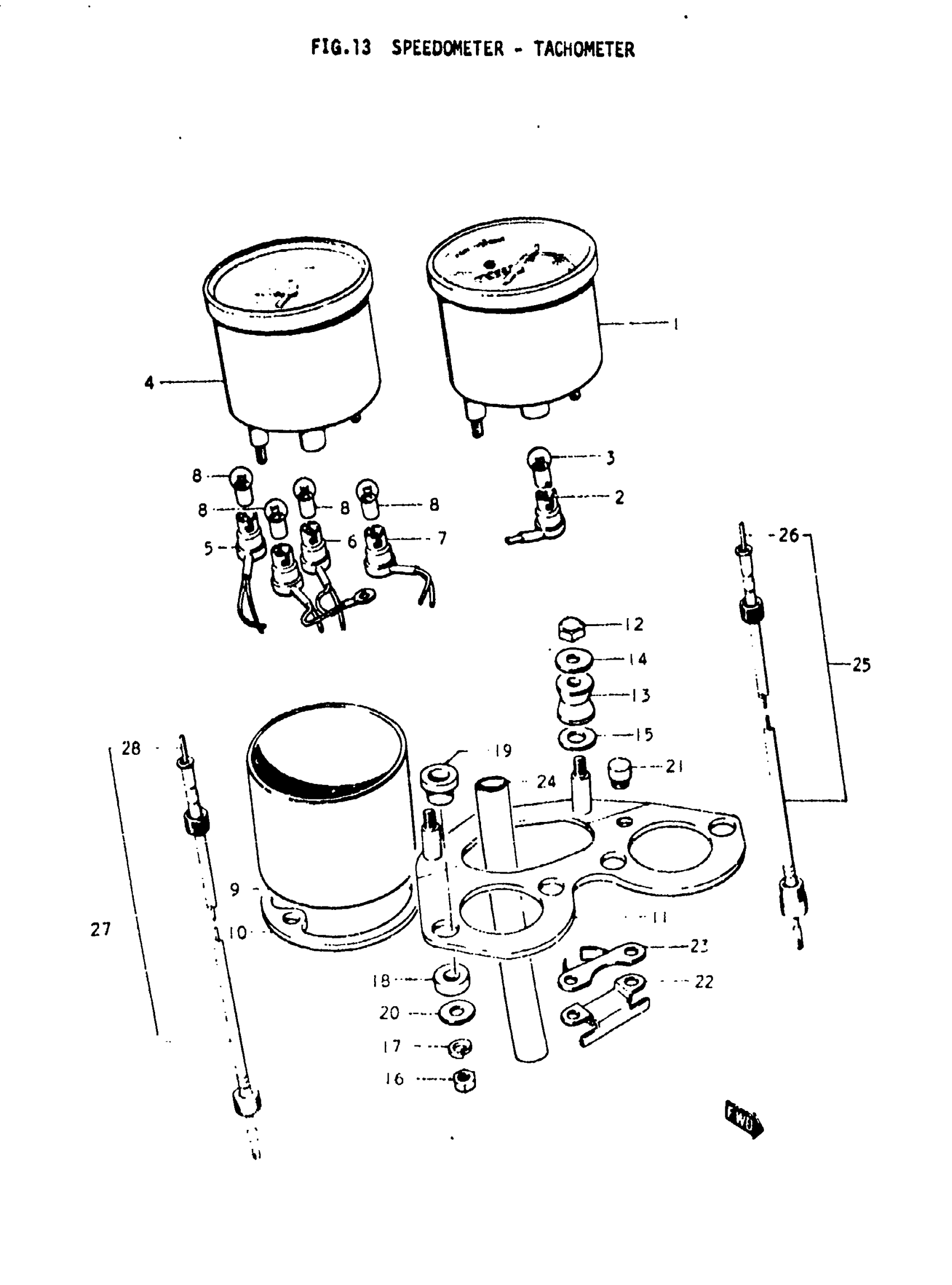

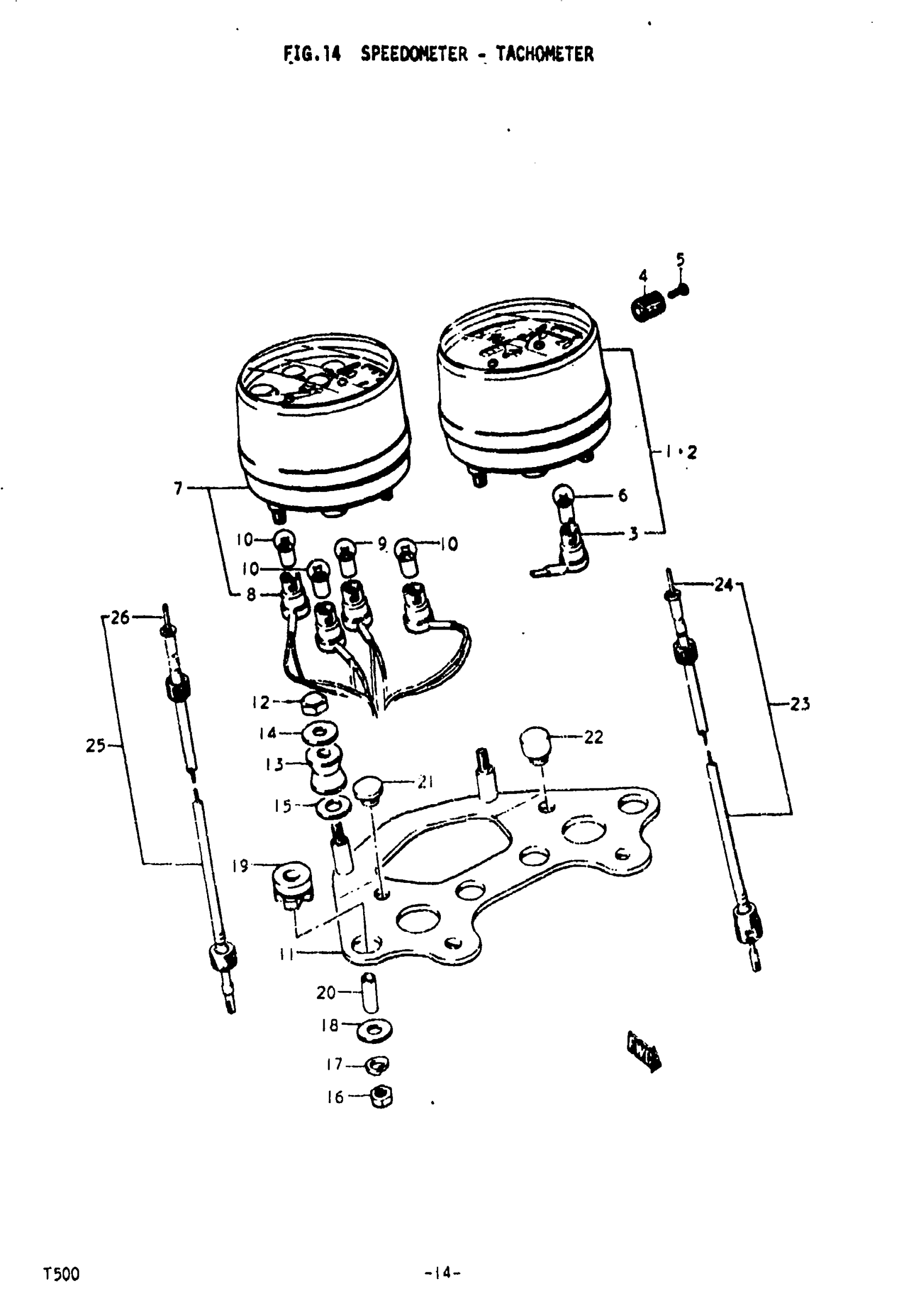

Suzuki T500-1 (1970) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSY | 1,2; Includes Item(s) 2

34100-15620-999

Unavailable

2

SOCKET, PILOT BULB | 1,2

34173-15120

Unavailable

3

BULB | 1,2; 12V, 3.4W

09471-12001

$1.65

4

TACHOMETER ASSY | 1; TO 34200-15710-999 This part replaces 34200-15703.

34200-15710-999

Unavailable

4

TACHOMETER ASSY | 2; Includes Item(s) 5 - 7

34200-15710-999

Unavailable

5

SOCKET, TURN SIGNAL | 1,2

34175-15020

Unavailable

6

SOCKET, HIGH BEAM | 1,2

34173-15610

Unavailable

7

SOCKET, NEUTRAL | 1,2

34174-15020

Unavailable

8

BULB | 1,2; 12V, 3.4W

09471-12001

$1.65

9

COVER, METER | 1

34155-15001

Unavailable

10

CUSHION, METER COVER | 1

34955-15000

Unavailable

11

BRACKET, METER | 2

34950-15100

Unavailable

12

NUT, LICENSE HOLDER | 2 This part replaces 08313-11067.

08313-10067

$1.84

13

CUSHION, METER BRACKET | 2

34956-15100

$3.71

14

WASHER | 2 This part replaces 09160-06007.

09160-06084

$1.78

15

WASHER | 2 This part replaces 08322-21088.

08322-01087

$2.13

16

NUT | 1,2 This part replaces 08311-11058.

08310-00057

$1.84

17

LOCK WASHER | 1,2 This part replaces 08321-21058.

08321-0105A

$1.84

18

CUSHION | 1,2 This part replaces 09320-08004.

09320-08010

$1.99

19

CUSHION, METER | 2

34955-20000

Unavailable

20

WASHER, METER | 1,2

09160-05024

$1.78

21

CUSHION, METER | 2

34957-05100

Unavailable

22

CLAMP, CORD | 1

09403-00030

Unavailable

23

CLAMP, CORD | 2

34183-15100

Unavailable

24

TUBE, LEAD CORD | 1,2

34182-15000

Unavailable

25

CABLE SPEEDOMET | 1,2; L:955; Includes Item(s) 26 This part replaces 34910-15130.

34910-44401

$26.05

26

CABLE, INNER | 1,2

34911-15030

Unavailable

27

CABLE ASSY,TACH | 1,2; L:1050 TO 34940-36030; Includes Item(s) 28 This part replaces 34940-18430.

34940-36032

Unavailable

28

CABLE ASSY,TACH | 1,2 This part replaces 34941-15031.

34940-36032

Unavailable
