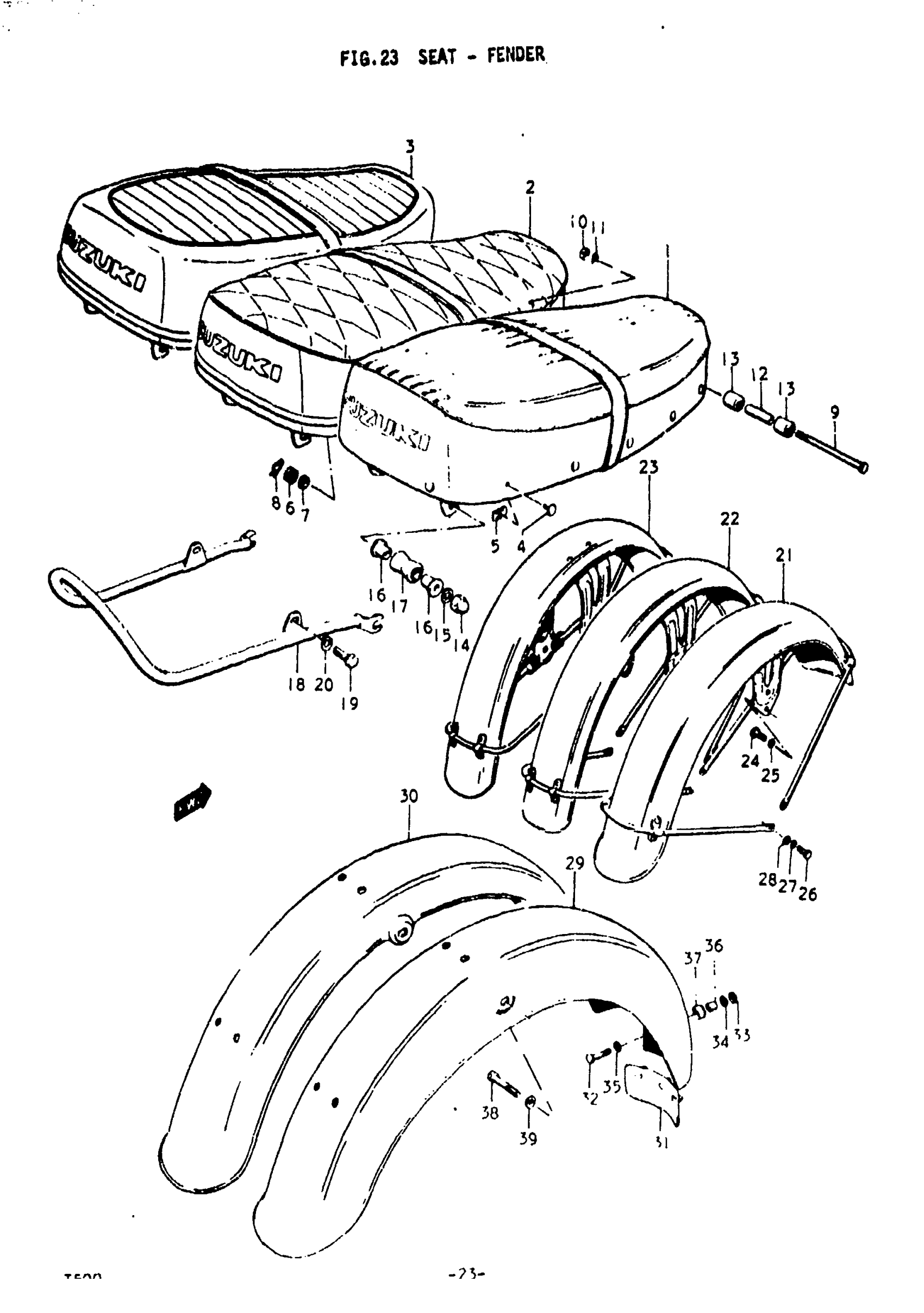

Suzuki T500-1 (1970) SEAT - FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | 1 This part replaces 45100-15001.

45100-15103-865

Unavailable

2

SEAT ASSY | 2; TO 45100-15102-403

45100-15100

Unavailable

3

SEAT ASSY | 3; TO 45100-15103-403; Includes Item(s) 4 - 8

45100-15102-403

Unavailable

4

ACCESSORY | 1

45194-15000

Unavailable

5

NUT | 1

09148-04001

Unavailable

6

.NUT | 1,2,3 This part replaces 08311-11068.

08310-00067

$2.13

7

WASHER | 1,2,3 This part replaces 08322-21088.

08322-01087

$2.13

8

CLIP | 1,2,3

09385-05002

Unavailable

9

SPACER | 1,2,3 This part replaces 09100-08029.

09100-08030

Unavailable

10

NUT | 1,2,3 This part replaces 08312-11088.

08310-00087

$2.13

11

.LOCK WASHER | 1,2,3 This part replaces 08321-21088.

08321-01087

$2.13

12

SPACER, SEAT FRONT | 1,2,3

09180-08023

Unavailable

13

CUSHION, SEAT FRONT | 1,2,3; 0D:28, W:20

09319-08002

Unavailable

14

NUT | 1,2,3 This part replaces 08313-11087.

08313-10087

$2.28

15

.LOCK WASHER | 1,2,3 This part replaces 08321-21088.

08321-01087

$2.13

16

BUSHING, SEAT REAR | 1,2,3

09301-08001

Unavailable

17

CUSHION, SEAT REAR | 1,2,3; 12.5x22.6x29.4

09305-12008

Unavailable

18

BUMPER, REAR | 1; TO 94710-15100

94710-15001

Unavailable

18

BUMPER, REAR | 2,3

94710-15100

Unavailable

19

BOLT 10X16 | 1 This part replaces 01221-10167.

01204-10167

$3.20

20

LOCK WASHER | 1 This part replaces 08321-21108.

08321-01107

$1.84

21

FENDER, FRONT | 1; CHROME-PLATED

53110-15000

Unavailable

22

FENDER, FRONT | 2; CHROME-PLATED This part replaces 53110-15100.

53100-15101

Unavailable

23

FENDER, FRONT | 3; CHROME-PLATED

53100-15101

Unavailable

24

BOLT | 1,2 This part replaces 09100-08055.

01500-0812A

$2.28

24

BOLT | 2,3 This part replaces 09100-08073.

01500-0812A

$2.28

25

.LOCK WASHER | 1,2,3 This part replaces 08321-21088.

08321-01087

$2.13

26

BOLT | 1,2 This part replaces 01112-06128.

01500-06127

$1.97

27

LOCK WASHER | 1,2 This part replaces 08321-21058.

08321-0105A

$1.84

28

WASHER | 1,2 This part replaces 08322-21068.

08322-01067

$2.13

29

NO DESCRIPTION AVAILABLE | 1; CHROME-PLATED This part replaces 63110-15001.

63100-15700

Unavailable

30

FENDER, REAR | 2,3; CHROME-PLATED

63110-15100

Unavailable

31

GUARD, MUD | 1; TO 63411-15101

63411-11000

Unavailable

31

GUARD, MUD | 2,3

63411-15101

Unavailable

32

BOLT | 1,2,3 This part replaces 01112-06208.

01500-06207

$2.28

33

.NUT | 1,2,3 This part replaces 08311-11068.

08310-00067

$2.13

34

.LOCK WASHER | 1,2,3 This part replaces 08321-21088.

08321-01087

$2.13

35

WASHER, FRONT | 1,2,3; 6.5x24x1.6 This part replaces 09160-06004.

09160-06134

$1.91

36

SPACER (6.5X10X7) | 1,2,3; 6.8x10x7.0 This part replaces 09180-06002.

09180-06283

$1.91

37

CUSHION, FENDER LOWER | 1,2,3; 9.5x24x8.0

09320-09002

$1.98

38

NO DESCRIPTION AVAILABLE | 1,2,3; 8x47 This part replaces 09100-08002.

09100-08290

Unavailable

39

WASHER | 1,2,3 This part replaces 08322-21088.

08322-01087

$2.13
