1970 Suzuki T500-1 Rear Wheel Diagram

← All diagrams

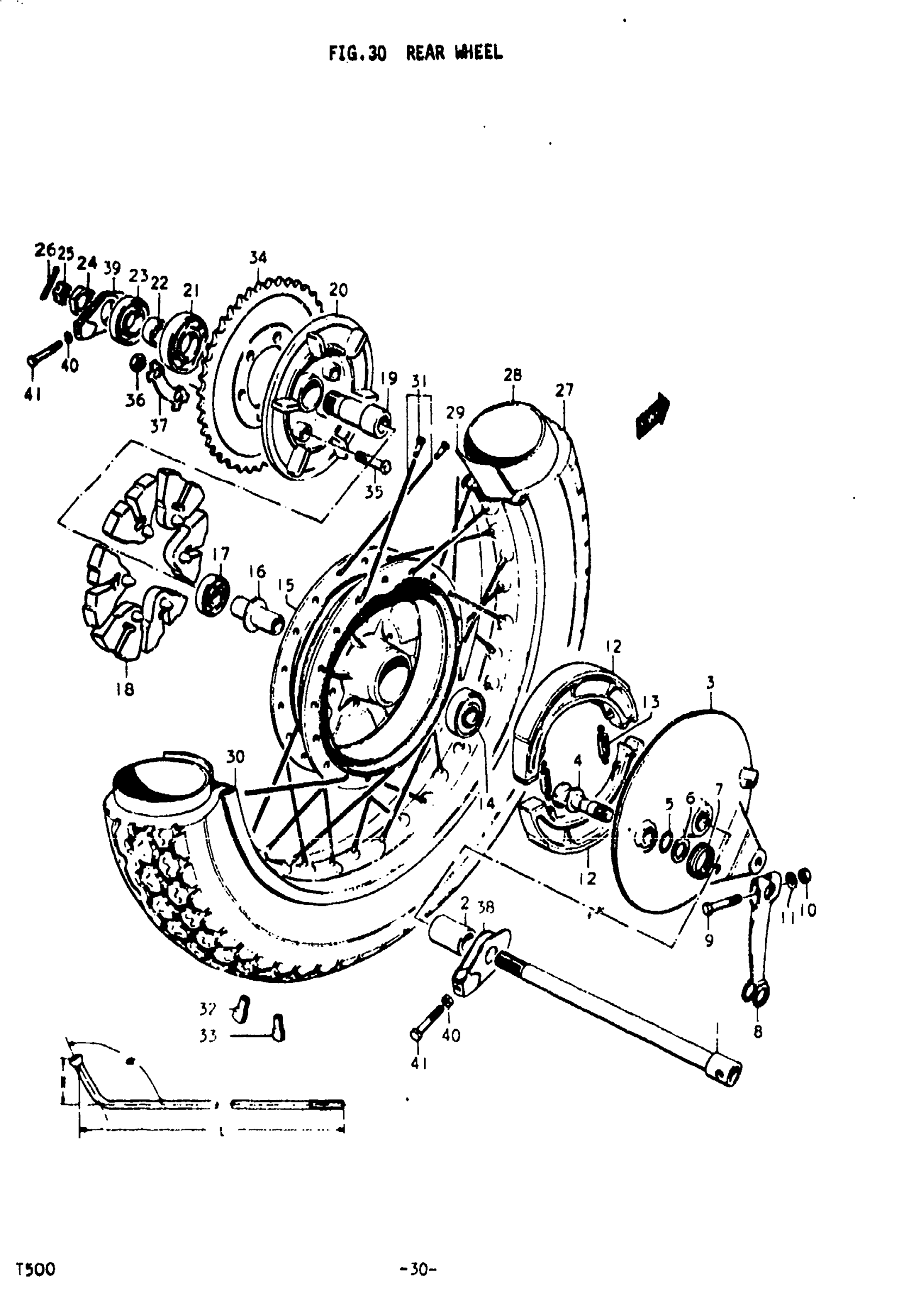

Find the part on the Rear Wheel diagram for your 1970 Suzuki T500-1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Suzuki T500-1 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | 1,2,3; OD:16, L:252 This part replaces 64711-11000.

64711-0800V

1
Out of stock

2

SPACER, REAR AXLE | 1,2,3; 17.5x28x36.8

09180-17024

1
Out of stock

3

PANEL, REAR HUB | 1,2,3; TO 64210-11001

64210-11000

—
Out of stock

4

CAM, BRAKE | 1,2,3; FROM 54440-11002 This part replaces 54440-11003.

64440-38A00

1
Out of stock

7

SPRING | 1,2,3 This part replaces 09448-30001.

09448-30001-XC0

1
Out of stock

8

LEVER, BRAKE CAM | 1,2,3

64451-11000

1
Out of stock

9

BOLT | 1,2,3 This part replaces 01112-06408.

01500-0640B

1
Out of stock

10

1

$1.82

In stock

11

1

$1.84

In stock

12

SHOE SET,BRAKE( | 1,2,3; SEE NOTE 1. This part replaces 64410-11002.

64400-11870

2
Out of stock

13

SPRING, BRAKE SHOE | 1,2,3

55420-30000

2
Out of stock

14

1

$21.98

In stock

15

DRUM, REAR HUB | 1,2,3

64110-11000

—
Out of stock

16

SPACER, HUB BEARING | 1,2,3; L:57

64730-11000

1
Out of stock

18

SHOCK ABSURBER, REAR DRUM | 1,2,3 This part replaces 64651-11000.

64651-11002

6
Out of stock

19

SHAFT, SPROCKET DRUM | 1,2,3

64761-11000

1
Out of stock

20

DRUM, REAR SPROCKET | 1,2,3

64611-11000

1
Out of stock

21

BEARING, LH | 1,2,3 This part replaces 08113-62050.

09262-25003

1
Out of stock

22

SPACER, SPROCKET DRUM | 1,2,3; 25x30.5x11.3

09180-25011

1
Out of stock

24

NUT | 1,2,3; 24SCREW This part replaces 09140-24002.

09140-24010

1
Out of stock

25

1

$4.20

In stock

26

1

$1.47

In stock

27

TIRE, REAR | 1,2,3; 4.00-18

65100-15011

—
Out of stock

28

TUBE, INNER | 1,2,3; 4.00-18 This part replaces 65200-15011.

65200-49015

1
Out of stock

30

RIM, WHEEL | 1,2,3; 2.15Bx18

65311-15020

1
Out of stock

31

SPOKE SET,REAR | 1,2,3 This part replaces 65320-15818.

65320-15819

1
Out of stock

32

BALANCER WHEEL (15G) | 1,2,3; (0~3) This part replaces 55411-11000.

55411-26G00

1
Out of stock

33

BALANCER WHEEL (30G) | 1,2,3; (0~3) This part replaces 55412-11000.

55413-41F00

1
Out of stock

34

SPROCKET, REAR | 1,2; NT:33 This part replaces 64511-15000.

64511-15001

1
Out of stock

34

SPROCKET, REAR | 3

64511-15730

—
Out of stock

34

NO DESCRIPTION AVAILABLE | 1,2,3; NT:34 OPT This part replaces 64511-15740.

64511-15741

1
Out of stock

34

SPROCKET, REAR | 1,2; NT:35 TO 64511-15751

64511-15750

—
Out of stock

34

SPROCKET, REAR | 3

64511-15751

1
Out of stock

34

SPROCKET, REAR | 1,2,3; NT:38

64511-15780

—
Out of stock

35

BOLT | 1,2,3; 10x35 This part replaces 09119-10002.

09105-10001

6
Out of stock

36

NUT | 1,2,3

09140-10018

—
Out of stock

37

WASHER, SPROCKET | 1,2,3

09169-10006

3
Out of stock

38

ADJUSTER, CHAIN RH | 1,2,3

61410-15002

1
Out of stock

39

ADJUSTER, CHAIN LH | 1,2,3

61420-15002

1
Out of stock

40

2

$1.93

In stock

41

2

$2.92

In stock

41

BOLT (8X50) | 1,2,3; 8x50 This part replaces 09104-08006.

09104-08034

2
Out of stock
