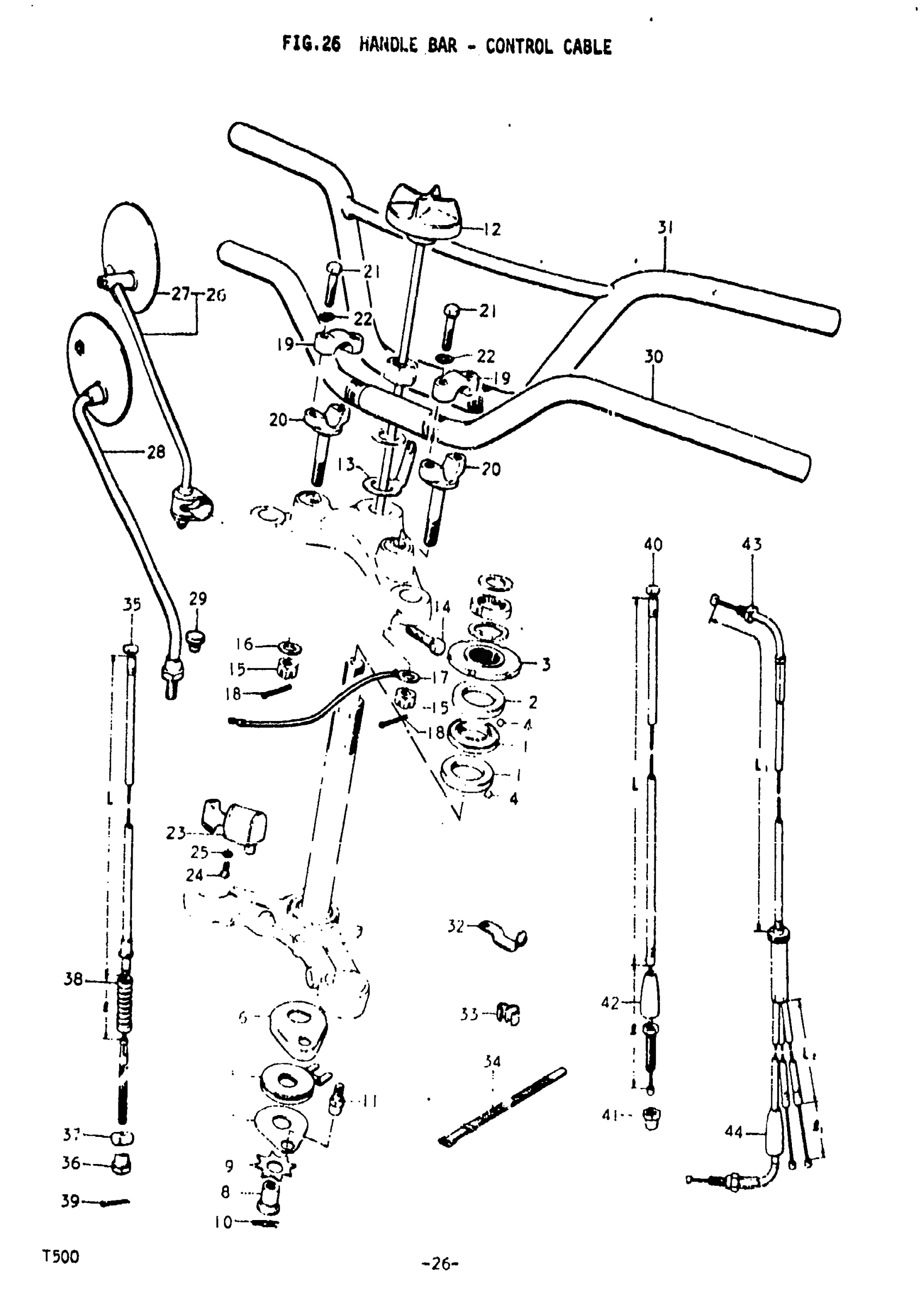

Find the part on the Handle BAR - Control Cable diagram for your 1970 Suzuki T500-1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Suzuki T500-1 Handle BAR - Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, INNER, LOWER | 1,2 This part replaces 51611-33001.

51611-33002

2
Out of stock

1

RACE, STEERING INNER | 3

51611-33002

2
Out of stock

2

RACE, STEERING OUTER | 1,2

51621-08003

—
Out of stock

3

NUT, STEERING STEM This part replaces 51631-08010.

51631-08000

1
Out of stock

4

STEEL BALL | TO 06111-08003 This part replaces 06111-08004.

06111-08003

36
Out of stock

5

PLATE, DAMPER CORK

51710-08100

1
Out of stock

6

PLATE, DAMPER UPPER

51721-08100

1
Out of stock

7

PLATE, DAMPER LOWER

51722-08100

1
Out of stock

8

HUB, DAMPER SLEEVE

51741-08100

1
Out of stock

9

SPRING, DAMPER ADJUST

51742-08100

1
Out of stock

10

CLIP, HANDLE DAMPER

09385-05002

1
Out of stock

11

BOLT, DAMPER LOCK

51781-08100

1
Out of stock

12

FNOB, HANDLE DAMPER

51730-15000

—
Out of stock

13

STOPPER, DAMPER KNOB

51744-08100

1
Out of stock

14

BOLT 10X16 | 1 This part replaces 01221-10167.

01204-10167

2
Out of stock

15

NUT This part replaces 08314-11108.

08314-3110A

2
Out of stock

16

WASHER

09160-10035

1
Out of stock

17

PLATE, HANDLEBAR EARTH

56290-18000

—
Out of stock

18

PIN This part replaces 04111-20308.

04111-2030A

2
Out of stock

19

CLAMP, HANDLEBAR UPPER | 1,2; TO 56211-33000 This part replaces 56211-15000.

56211-33000

2
Out of stock

19

CLAMP, HANDLEBAR UPPER | 3

56211-33000

2
Out of stock

20

CLAMP, HANDLEBAR LOWER | 1,2; TO 56221-33000 This part replaces 56221-15000.

56221-33000

2
Out of stock

20

CLAMP, HANDLEBAR LOWER | 3

56221-33000

2
Out of stock

21

BOLT This part replaces 01221-08307.

01204-08307

4
Out of stock

22

4

$2.28

In stock

23

LOCK ASSY, STEERING | TO 50000-25837

51900-03012

—
Out of stock

24

SCREW | TO 02112-05107

02111-05107

—
Out of stock

25

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

26

MIRROR ASSY, REAR VIEW | 1; Includes Item(s) 27

56500-08600

1
Out of stock

27

MIRROR | 1

56510-08610

—
Out of stock

28

MIRROR ASSY,RR | OPT This part replaces 56500-31011.

56500-31014

1
Out of stock

28

MIRROR ASSY,RR | OPT L:1080, L:116 This part replaces 56600-31011.

56600-31014

1
Out of stock

29

CAP | 2,3 This part replaces 09250-09001.

09250-09008

1
Out of stock

30

HANDLEBAR | 1; FROM 56110-15002 This part replaces 56110-15102.

56111-15103

1
Out of stock

31

HANDLEBAR | 2,3 This part replaces 56110-15102.

56111-15103

1
Out of stock

32

CLAMP, CABLE | TO 09403-16303

09403-00006

—
Out of stock

33

CLIP, CABLE

09408-00002

1
Out of stock

34

CLIP, CLUTCH CABLE | L:149

09407-14401

1
Out of stock

35

CABLE ASSY, BRAKE | 1; L:1247, L:76.5

58100-15000

1
Out of stock

35

CABLE,FR BRAKE | 2,3; L:1280, L:75; Includes Item(s) 36 - 38 This part replaces 58100-15100.

58100-15101

1
Out of stock

36

.NUT This part replaces 09150-06001.

09150-06010

1
Out of stock

37

.PIN (13X18) This part replaces 09209-13003.

09209-13018

1
Out of stock

38

DUST SEAL

09287-05001

1
Out of stock

39

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

40

CABLE,CLUTCH | L:1080, L:116; Includes Item(s) 41 - 42 This part replaces 58200-15100.

58200-33601

1
Out of stock

41

1

$1.93

In stock

42

DUST SEAL

09287-10001

1
Out of stock

43

CABLE ASSY, THROTTLE | 1; L1:700, L2:229 L1:87 TO 58300-15101

58300-15000

—
Out of stock

43

CABLE,THROTTLE | 2,3; L1:730, L2:347,L1:89; Includes Item(s) 44 This part replaces 58300-15101.

58300-15102

1
Out of stock

44

SEAL,DUST This part replaces 09287-07002.

09287-07006

1
Out of stock
