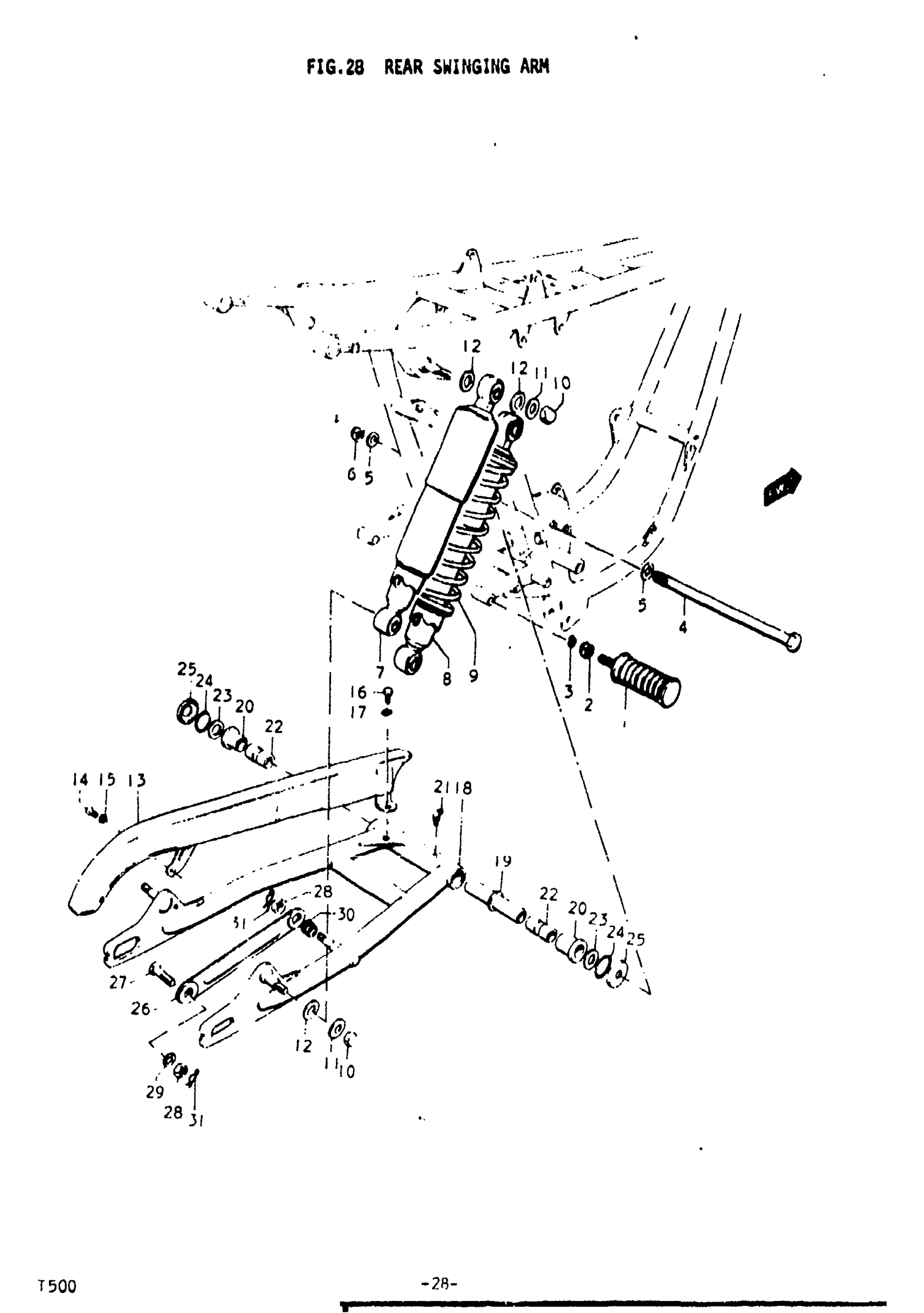

Suzuki T500-1 (1970) REAR SWINGING ARM Diagram

#

Description
Price

1

FOOTREST SET,PI | 1,2,3; Includes Item(s) 2 This part replaces 43600-10808.

43600-10809

Unavailable

2

NUT | 1,2,3 This part replaces 08312-11108.

08310-00107

$2.19

3

LOCK WASHER | 1,2,3 This part replaces 08321-21108.

08321-01107

$1.84

4

SHAFT, PIVOT | 1,2; L:242 TO 61211-15004

61211-15003

Unavailable

4

SHAFT, PIVOT | 3

61211-15004

Unavailable

5

WASHER | 1,2,3 This part replaces 08322-11148.

08322-01147

$1.91

6

NUT | 1,2; TO 09159-14003 This part replaces 09159-14002.

09159-14003

Unavailable

6

NUT, PIVOT SHAFT | 3

09159-14003

Unavailable

7

SHOCK ABSORBER ASSY, REAR | 1; PRIMARY PAINTED

62100-15010

Unavailable

8

SHOCK ABSORBER ASSY, REAR | 2,3; CHROME-PLATED; Includes Item(s) 9 - 9

62100-15110

Unavailable

9

SPRING | 1

62211-15010

Unavailable

9

SPRING | 2,3; CHROME-PLATED

62211-15110

Unavailable

10

NUT | 1,2,3 This part replaces 08313-11107.

08313-10107

$2.50

11

WASHER | 1,2,3 This part replaces 08322-11128.

08322-01127

$1.84

12

WASHER, LOWER (10.5X24X2.3) | 1,2,3 This part replaces 09160-10001.

09160-10093

$2.35

13

CASE, CHAIN | 1; TO 61310-15100

61310-15002

Unavailable

13

NO DESCRIPTION AVAILABLE | 2,3; CHROME-PLATED This part replaces 61310-15100.

61310-15102

Unavailable

14

SCREW, HEADLAMP (5X12) | 1,2,3 This part replaces 02121-05127.

09126-05003

$2.06

15

WASHER,LOCK | 1,2,3 This part replaces 08323-31058.

08323-3105A

$1.49

16

BOLT | 1,2,3 This part replaces 01112-06128.

01500-06127

$1.97

17

LOCK WASHER | 1,2,3 This part replaces 08321-21058.

08321-0105A

$1.84

18

SWINGING ARM ASSY | 1,2; TO 61100-15830-019

61103-15810-019

Unavailable

18

NO DESCRIPTION AVAILABLE | 3; Includes Item(s) 19 - 21 This part replaces 61100-15830-019.

61100-15831-019

Unavailable

19

SPACER | 1,2,3; ID:15.3, L:99.2

61280-15000

Unavailable

20

BUSHING | 1,2,3; ID:22, L:40 This part replaces 09307-22002.

09307-22003

Unavailable

21

NIPPLE, GREASE | 1,2,3 This part replaces 08351-31008.

08351-3100A

$4.45

22

SPACER | 1,2,3; 14x22x41.5 This part replaces 61251-15000.

61251-15001

Unavailable

23

THRUST WASHER | 1,2,3; 14.5x29x2.3

09160-14009

$2.82

24

.O RING (D:3,ID:29.5) | 1,2,3; ID:29.5, D.:3.0

09280-30001

$1.72

25

COVER, DUST | 1,2,3

61262-15000

$93.03

26

TORQUE LINK, REAR | 1,2,3

64310-15000

Unavailable

27

BOLT, TORQUE LINK | 1,2,3; 10x28

09101-10003

Unavailable

28

NUT | 1,2,3 This part replaces 08311-11108.

08310-00107

$2.19

29

LOCK WASHER | 1,2,3 This part replaces 08321-21108.

08321-01107

$1.84

30

SPRING, TORQUE LINK | 1,2,3

09440-18002

$1.49

31

CLIP | 1,2,3 This part replaces 09385-10001.

09385-10005

$1.56
