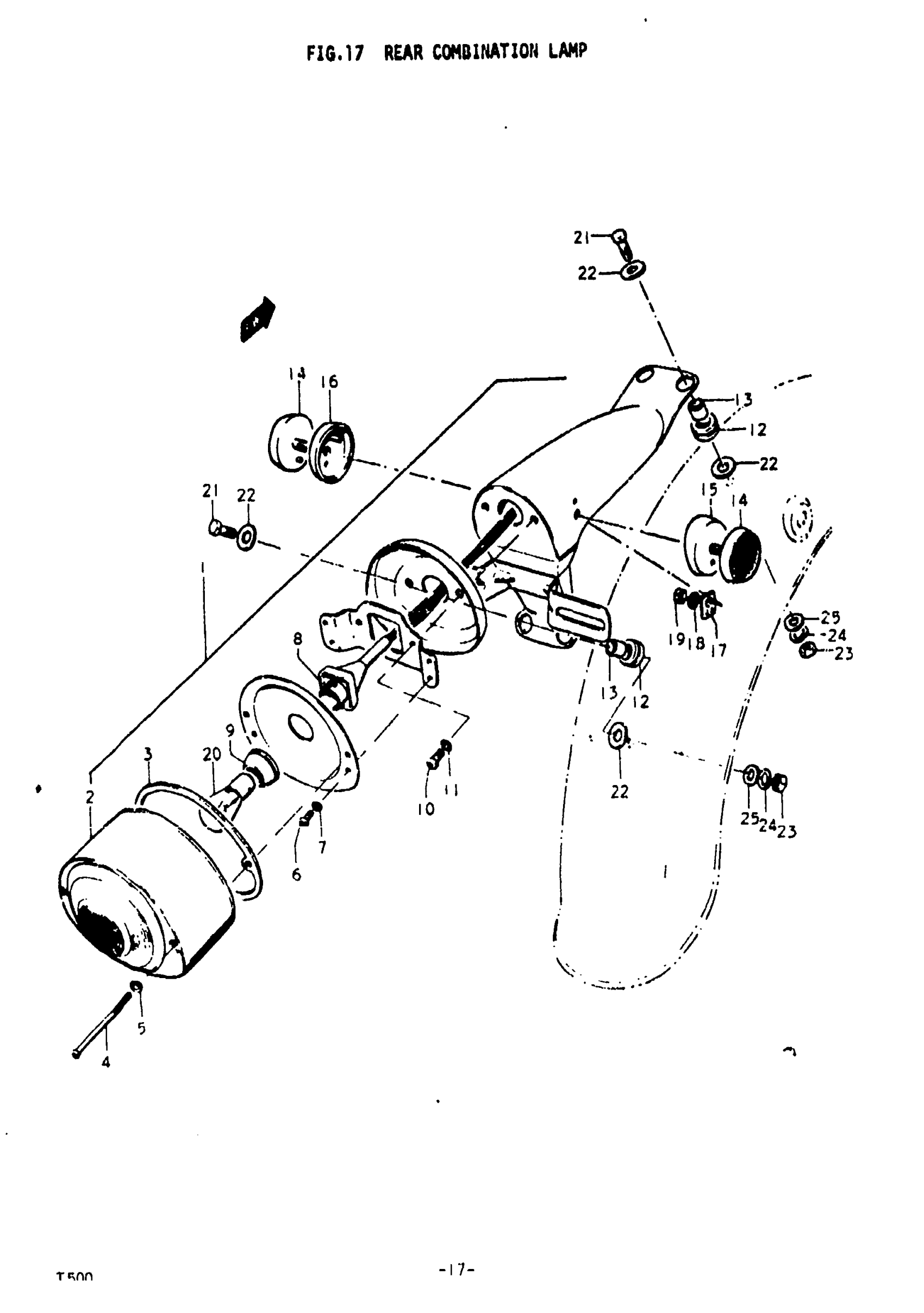

Suzuki T500-1 (1970) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, COMBINATION | 1,2,3; TO 35000-15601; Includes Item(s) 2 - 19

35000-15826-999

Unavailable

2

LENS, RR COMB L | 1,2,3 This part replaces 35712-22610.

35712-06112

$35.16

3

GASKET | 1,2,3

35713-15010

Unavailable

4

SCREW | 1,2,3

02113-04558

Unavailable

5

WASHER | 1,2,3

35727-03010

Unavailable

6

SCREW | 1,2,3 This part replaces 02111-03087.

02112-0308A

$1.80

7

LOCK WASHER | 1,2,3 This part replaces 08321-21048.

08321-0104A

$1.84

8

SOCKET | 1,2,3

35718-15011

Unavailable

9

BUFFER, BULB | 1,2,3

35716-15010

Unavailable

10

SCREW | 1,2,3 This part replaces 02111-05127.

02112-05127

$1.97

11

LOCK WASHER | 1,2,3 This part replaces 08321-21058.

08321-0105A

$1.84

12

CUSHION, BRACKET | 1,2,3

35765-15010

Unavailable

13

SPACER | 1,2,3 This part replaces 35766-15010.

35766-37110

$5.28

14

REFLEX REFLECTOR | 1; OPT2,3

35970-18602

Unavailable

15

SPACER, REFLECTOR RH | 1; OPT2,3

35995-15600

Unavailable

16

SPACER, REFLECTOR LH | 1; OPT2,3

35996-15600

Unavailable

17

WASHER, REFLECTOR | 1; OPT2,3

35997-15600

Unavailable

18

LOCK WASHER | 1; OPT2,3 This part replaces 08321-21058.

08321-0105A

$1.84

19

NUT | 1; OPT2,3 This part replaces 08311-11058.

08310-00057

$1.84

20

BULB (12V,23W/8W) | 12V, 32/4CP, US#1034 This part replaces 09471-12002.

09471-12035

$4.49

21

BOLT, GEAR SHIFT ARM This part replaces 09100-06039.

01500-0625A

$1.78

22

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

23

.NUT This part replaces 08311-11068.

08310-00067

$2.13

24

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

25

WASHER This part replaces 08322-21068.

08322-01067

$2.13
