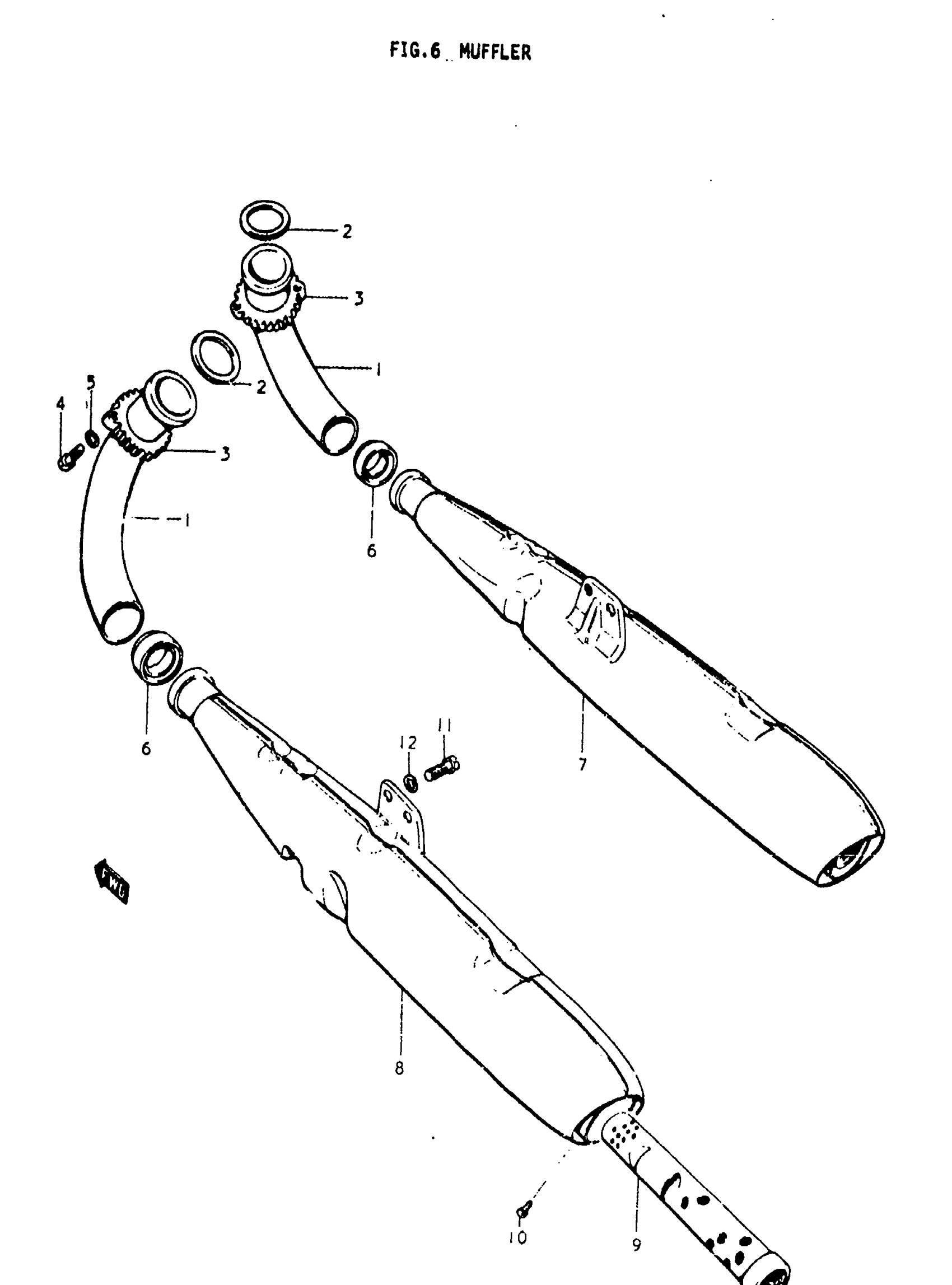

Suzuki T500-1 (1970) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST | 1,2,3

14150-15000

Unavailable

2

GASKET,EXHAUST | 1,2,3 This part replaces 14181-15010.

14181-15020

Unavailable

3

CLAMP, EXHAUST PIPE | 1,2,3

14182-15000

Unavailable

4

BOLT | 1,2,3 This part replaces 01122-08408.

01500-0840A

$2.60

5

.LOCK WASHER | 1,2,3 This part replaces 08321-21088.

08321-01087

$2.13

6

CONNECTOR, MUFFLER | 1,2,3

14771-15080

Unavailable

7

MUFFLER ASSY, RH | 1; TO 14301-15003

14301-15002

Unavailable

7

NO DESCRIPTION AVAILABLE | 1,2,3; E.NO.11521~ This part replaces 14301-15003.

14301-15601-H01

Unavailable

8

MUFFLER ASSY, LH | 1; TO 14302-15003

14302-15002

Unavailable

8

NO DESCRIPTION AVAILABLE | 1,2,3; E.NO.11521~; Includes Item(s) 9 - 10 This part replaces 14302-15003.

14302-15601-H01

Unavailable

9

PIPE, BUFFLE | 1; L:435

14510-15003

Unavailable

9

PIPE, BAFFLE RH | 1,2,3; L:475 E.NO.11521~ This part replaces 14510-15004.

14510-31000

Unavailable

10

SCREW | 1,2,3 This part replaces 02111-05068.

09125-05122

$2.06

11

BOLT 10X16 | 1,2,3 This part replaces 01221-10167.

01204-10167

$3.20

12

LOCK WASHER | 1,2,3 This part replaces 08321-21108.

08321-01107

$1.84
