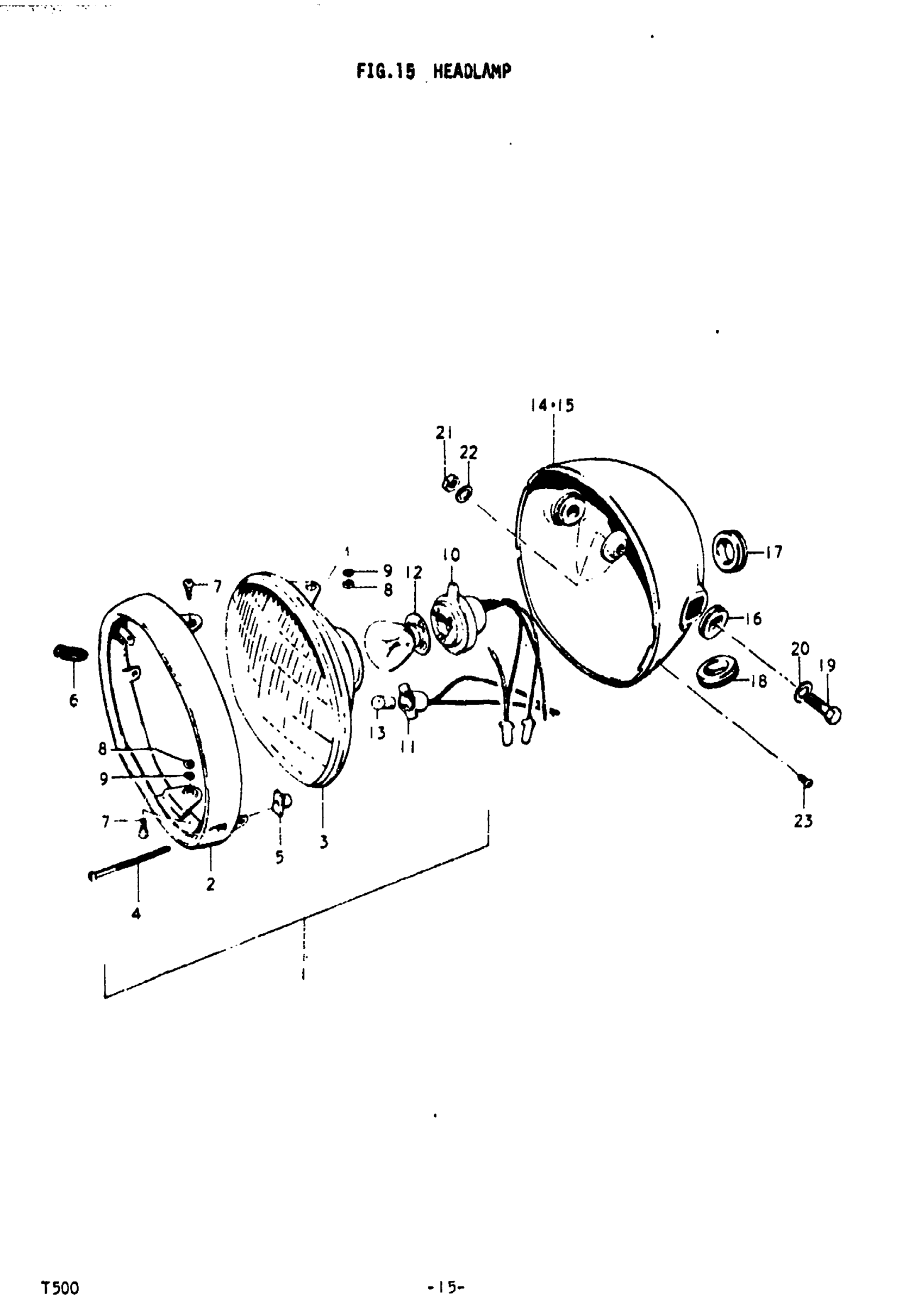

Suzuki T500-1 (1970) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | 1,2,3; Includes Item(s) 2 - 11

35100-15613-999

Unavailable

2

RIM | 1,2,3

35111-15613

Unavailable

3

UNIT | 1,2,3

35121-15610

Unavailable

4

SCREW, LAMP UNIT | 1,2,3

35151-15611

Unavailable

5

NUT, LAMP UNIT | 1,2,3

35152-15611

$3.25

6

SPRING, LAMP UNIT | 1,2,3

35154-11610

Unavailable

7

SCREW | 1,2,3

35181-15611

$3.37

8

NUT | 1,2,3 This part replaces 08311-11048.

08310-00047

$2.23

9

LOCK WASHER | 1,2,3 This part replaces 08321-21048.

08321-0104A

$1.84

10

SOCKET, LAMP UNIT | 1,2,3

35171-15610

Unavailable

11

PARKING LAMP SO | 1,2,3 This part replaces 36118-15610.

36118-04A00

$12.53

12

BULB, HEADLAMP | 1,2,3; 12V, 35/25W

09471-12022

Unavailable

13

BULB, PARKING LAMP | 1,2,3; 12V, 3.4W

09471-12001

$1.65

14

HOUSING ASSY, HEADLAMP | 1

51810-15032-737

Unavailable

15

HOUSING ASSY, HEADLAMP | 2,3; Includes Item(s) 16 - 18

51810-15033

Unavailable

16

RUBBER | 1,2,3

51827-15030

Unavailable

17

GROMMET | 1; ID:282,3; ID:28

51845-15130

Unavailable

18

GROMMET | 1; ID:20

51845-15030

Unavailable

18

GROMMET | 1; ID:16

51846-15030

Unavailable

19

BOLT | 1,2,3 This part replaces 01221-08257.

01204-08257

$1.96

20

WASHER | 1,2,3 This part replaces 08322-11088.

08322-01087

$2.13

21

NUT | 1,2,3 This part replaces 08312-11088.

08310-00087

$2.13

22

.LOCK WASHER | 1,2,3 This part replaces 08321-21088.

08321-01087

$2.13

23

SCREW | 1,2,3 This part replaces 02231-05128.

02122-05127

$1.93
