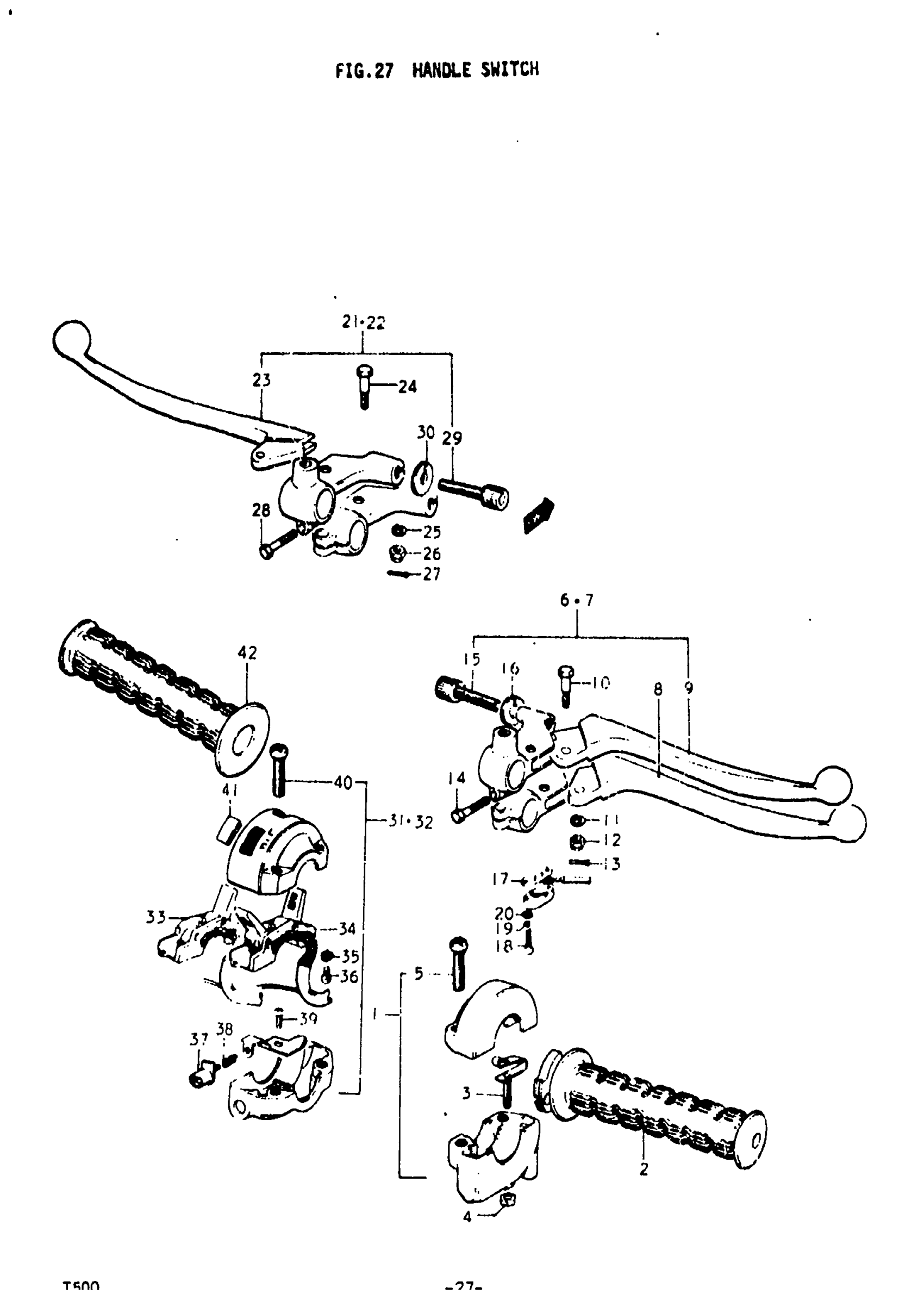

Suzuki T500-1 (1970) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | 1,2; TO 57100-15111

57100-15110

Unavailable

1

GRIP ASSY, THROTTLE | 3; Includes Item(s) 2 - 5

57100-15111

Unavailable

2

GRIP, THROTTLE | 1,2,3; TO 57110-31012 This part replaces 57110-15110.

57110-31012

Unavailable

3

ADJUSTER, GRIP | 1,2,3

57170-11011

Unavailable

4

NUT | 1,2,3 This part replaces 08311-11058.

08310-00057

$1.84

5

SCREW | 1,2,3 This part replaces 02111-05207.

02112-05207

$1.97

6

LEVER ASSY, BRAKE | 1; TO 57300-33010

57300-11010

Unavailable

7

LEVER ASSY, BRAKE | 2,3; Includes Item(s) 8 - 20

57300-18610

Unavailable

8

LEVER, BRAKE | 1; FROM 57420-11011 This part replaces 57420-18011.

57420-29400

Unavailable

9

LEVER, BRAKE | 2,3; FROM 57420-18600 This part replaces 57420-33010.

57420-18602

Unavailable

10

LOCK WASHER | 1,2,3 This part replaces 08321-21058.

08321-0105A

$1.84

11

LOCK WASHER | 1,2,3 This part replaces 08321-21058.

08321-0105A

$1.84

12

NUT, LEVER | 1,2,3

57433-11010

$5.64

13

PIN | 1,2,3 This part replaces 04111-16158.

04111-1620A

$1.49

14

BOLT | 1,2,3; TO 01112-06208 This part replaces 57451-11010.

01500-06207

$2.28

15

ADJUSTER, CABLE | 1,2,3

57441-11010

$5.62

16

NUT, ADJUSTER | 1,2,3

57442-11010

$2.79

17

WIRING HARNESS | 2,3; L:690 This part replaces 57470-18600.

57470-33010

Unavailable

18

SCREW | 2,3 This part replaces 09125-03105.

09125-03105-XC0

$2.23

19

WASHER,LOCK | 2,3 This part replaces 08321-21038.

09162-03001

$1.49

20

WASHER | 2,3 This part replaces 08322-21038.

08322-01037

$1.93

21

LEVER ASSY, CLUTCH | 1; TO 57500-18610

57500-11010

Unavailable

22

LEVER ASSY, CLUTCH | 2; TO 57500-18012

25700-18610

Unavailable

22

LEVER ASSY, CLUTCH | 3; Includes Item(s) 23 - 30

25700-18012

Unavailable

23

LEVER, CLUTCH | 1,2,3; FROM 57620-11010 This part replaces 57620-31010.

57620-45010

Unavailable

24

BOLT | 1,2,3 This part replaces 57431-11010.

57431-11013

$6.31

25

LOCK WASHER | 1,2,3 This part replaces 08321-21058.

08321-0105A

$1.84

26

NUT, LEVER | 1,2,3

57433-11010

$5.64

27

PIN | 1,2,3 This part replaces 04111-16158.

04111-1620A

$1.49

28

BOLT | 1,2,3; TO 01112-06208 This part replaces 57451-11010.

01500-06207

$2.28

29

ADJUSTER, CABLE | 1,2,3

57441-11010

$5.62

30

NUT, ADJUSTER | 1,2,3

57442-11010

$2.79

31

SWITCH ASSY, HANDLE | 1; TO 57700-11011

57700-09601

Unavailable

32

SWITCH ASSY, HANDLE | 1; OPT2,3; Includes Item(s) 33 - 41

57700-11011

Unavailable

33

WIRING HARNESS | 1; TO 57720-11010

57720-09600

Unavailable

34

WIRING HARNESS | 2,31; OPT

57720-11010

Unavailable

35

WASHER,LOCK | 1,2,3 This part replaces 08321-21038.

09162-03001

$1.49

36

SCREW | 1,2,3 This part replaces 02111-03067.

02112-0306B

$1.59

37

BUTTON, HORN | 1,2,3

57750-11010

Unavailable

38

SPRING, HORN BUTTON | 1,2,3

57761-11010

Unavailable

39

SCREW | 1,2,3 This part replaces 02121-03088.

02122-0308A

Unavailable

40

SCREW | 1,2,3 This part replaces 02111-05207.

02112-05207

$1.97

41

CAP, UPPER COVER | 1

57733-09600

Unavailable

42

GRIP, LH | 1,2,3

57211-15110

Unavailable
