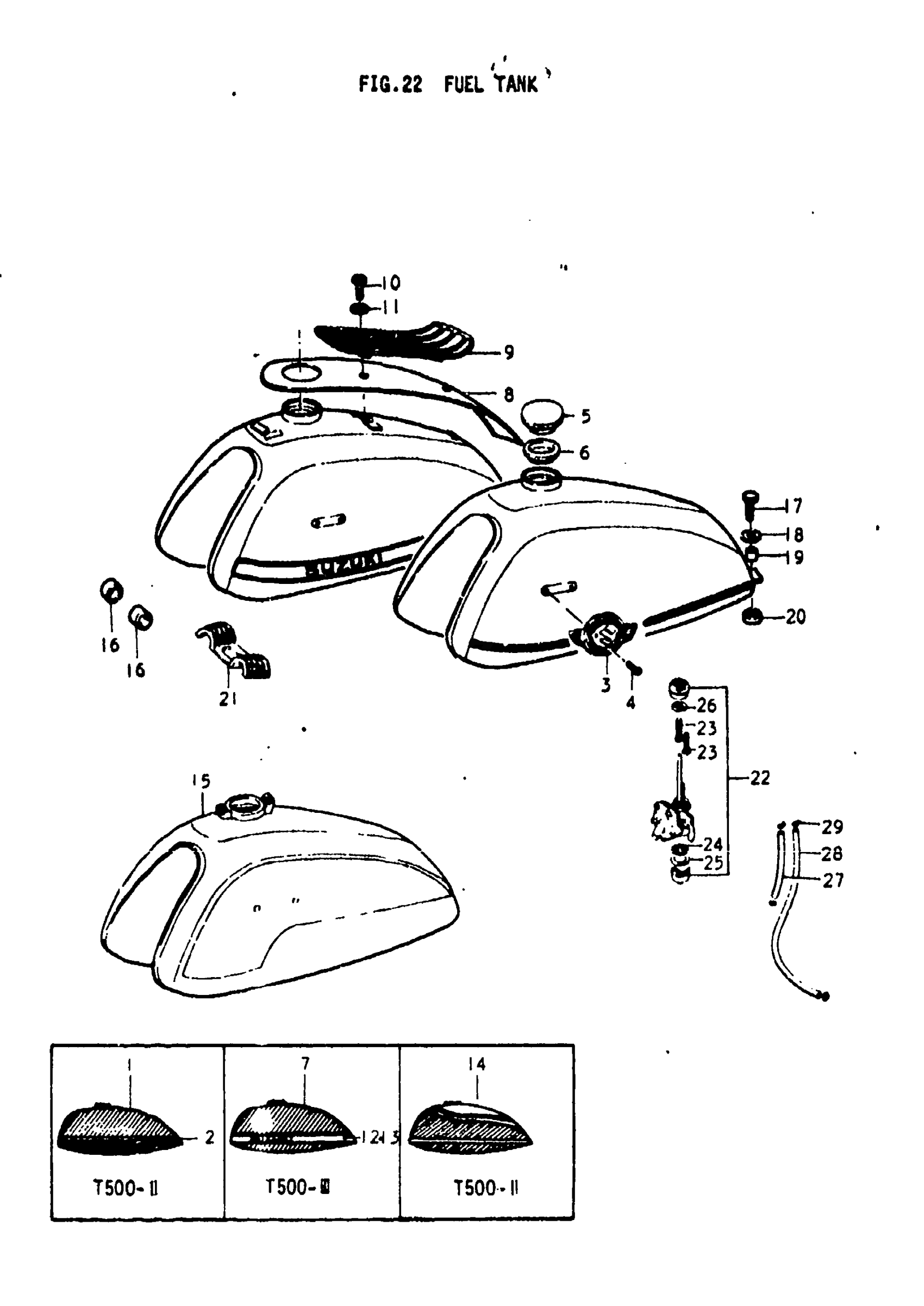

Suzuki T500-1 (1970) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL | 2; SEE NOTE 1. TO 44110-15102-649

44110-15100-649

Unavailable

1

TANK, FUEL | 2; SEE NOTE 1. TO 44110-15102-651

44110-15100-651

Unavailable

2

TAPE, STRIPING | 2

99000-78190

Unavailable

3

FUEL TANK EMBLEM | 2,3 This part replaces 68111-18100.

68111-22200

Unavailable

4

SCREW, EMBLEM | 2,3

09125-04108

Unavailable

5

CAP, FUEL TANK | 2,3 This part replaces 44210-11000.

44210-36200

Unavailable

6

GASKET, CAP | 2,3

44248-11000

Unavailable

7

NO DESCRIPTION AVAILABLE | 3 This part replaces 44110-15101-156.

44110-15620-737

Unavailable

7

NO DESCRIPTION AVAILABLE | 3 This part replaces 44110-15101-164.

44110-15620-737

Unavailable

8

COVER, TANK UPPER | 3

46530-15100-187

Unavailable

9

CARRIER, LUGGAGE | 3

46510-15100

Unavailable

10

SCREW, FRONT | 3 This part replaces 02141-06107.

02142-06107

Unavailable

11

LOCK WASHER | 3 This part replaces 08321-21058.

08321-0105A

$1.84

12

NO DESCRIPTION AVAILABLE | 3 This part replaces 68115-15100.

68100-15860

Unavailable

13

TAPE, STRIPING LH | 3

68125-15100

Unavailable

14

NO DESCRIPTION AVAILABLE | 2; FROM 44110-15100-649 This part replaces 44110-15102-649.

44110-15620-737

Unavailable

14

NO DESCRIPTION AVAILABLE | 2; FROM 44110-15100-651 This part replaces 44110-15102-651.

44110-15620-737

Unavailable

15

NO DESCRIPTION AVAILABLE | 2,3 This part replaces 44110-15610-737.

44110-15620-737

Unavailable

16

CUSHION, FUEL TANK | 1,2,3

09329-10005

$2.11

17

BOLT | 1,2,3 This part replaces 01122-08258.

01500-08257

$2.50

18

WASHER, TANK REAR | 1,2,3

09160-08006

Unavailable

19

SPACER (8.5X12X11) | 1,2,3 This part replaces 09180-08001.

09180-08189

$2.58

20

CUSHION, TANK REAR (2) | 1,2,3

09320-12009

$2.93

21

CUSHION, TANK REAR (1) | 1,2,3

44541-15000

Unavailable

22

COOK ASSY, FUEL | 1,2; TO 44300-18450 This part replaces 44300-15051.

44300-18450

Unavailable

22

COOK ASSY, FUEL | 3; Includes Item(s) 23 - 26

44300-18450

Unavailable

23

FILTER | 1,2,3

44322-15050

Unavailable

24

FILTER | 1,2,3

44344-15080

Unavailable

25

GASKET, FILTER CUP | 1,2,3

44346-10050

Unavailable

26

GASKET | 1,2,3

44348-10050

Unavailable

27

.HOSE | 1,2,3; L:135 This part replaces 09343-05025.

09352-50006-600

$7.48

28

HOSE, FUEL RH | 1,2,3; L:200

09343-05032

Unavailable

29

CLIP, FUEL HOSE | 1,2,3

09401-08401

$1.54
