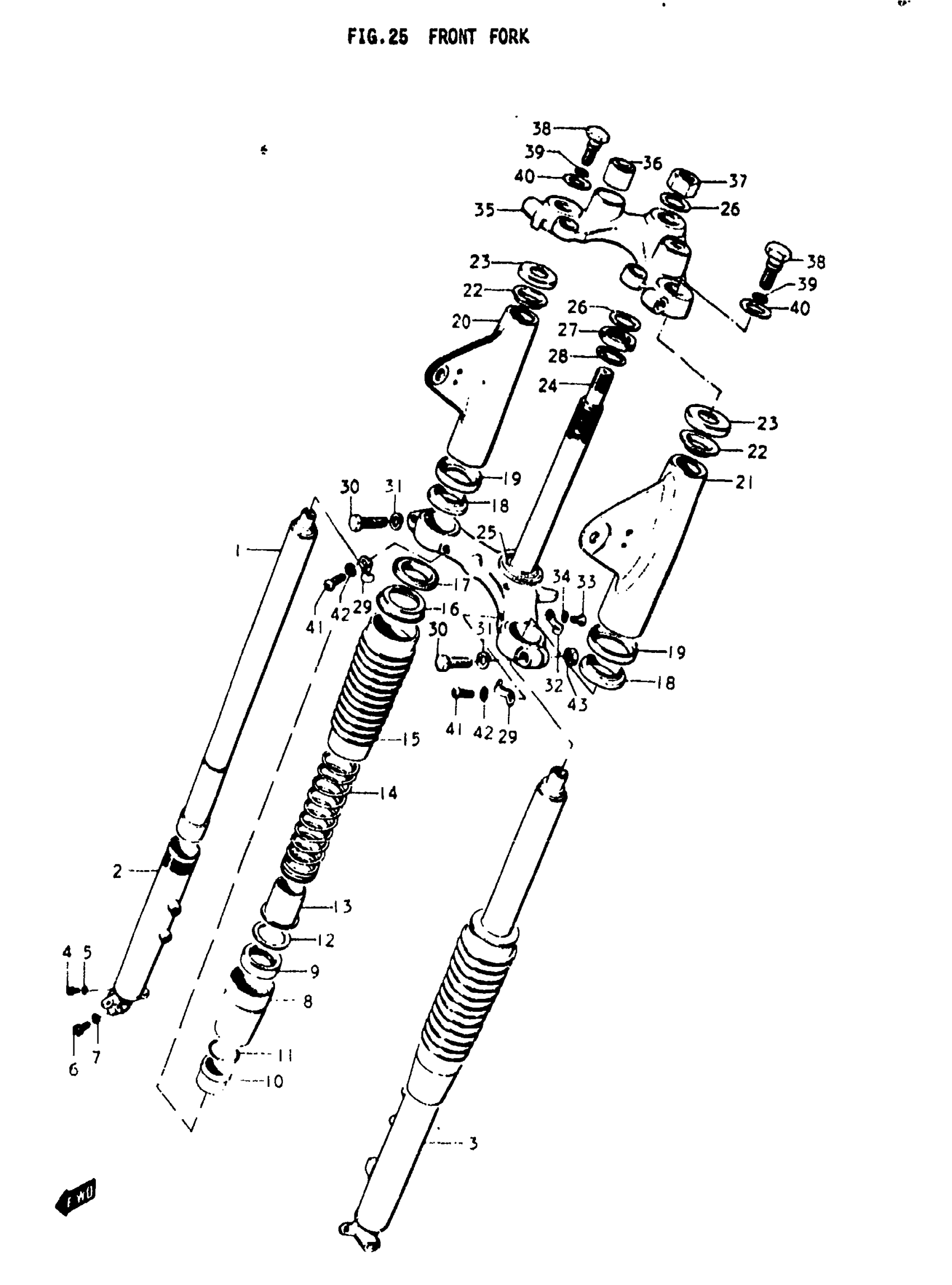

Suzuki T500-1 (1970) FRONT FORK Diagram

#

Description
Price

0

FORK ASSY, FRONT | 2,3; TO 51100-15111; Includes Item(s) 1 - 43

51100-15600

Unavailable

1

INNER TUBE | 2,3

51110-15010

Unavailable

2

OUTER TUBE, RH | 2,3; CHROME-PLATED

51130-15011

Unavailable

3

OUTER TUBE, LH | 2,3; CHROME-PLATED

51140-15011

Unavailable

4

PLUG, DRAIN | 2,3

51182-03621

Unavailable

5

GASKET, DRAIN PLUG | 2,3; 4.2x7.3x1.5

51183-03010

$2.07

6

BOLT | 2,3 This part replaces 01122-08258.

01500-08257

$2.50

7

.LOCK WASHER | 2,3 This part replaces 08321-21088.

08321-01087

$2.13

8

NUT, OUTER TUBE | 2,3

51150-15010

Unavailable

9

OIL SEAL | 2,3; TO 51153-16511 This part replaces 51153-16510.

51153-16511

Unavailable

10

GUIDE, INNER TUBE | 2,3

51152-11010

Unavailable

11

O RING, OUTER TUBE | 2,3; 1D:39.3, D.:3.0

51154-11010

Unavailable

12

SEAT, SPRING | 2,3; 35x48x1.6

51158-11010

Unavailable

13

DUST SEAL | 2,3

51173-11010

Unavailable

14

SPRING | 2,3

51171-15010

Unavailable

15

BOOT | 2,3

51571-11010

Unavailable

16

GUIDE, BOOT | 2,3

51573-11010

Unavailable

17

SPACER, SPRING | 2,3

51172-15110

Unavailable

18

CUSHION, BRACKET LOWER | 2,3

51553-15110

Unavailable

19

SEAT, HEADLAMP BRACKET | 2,3

51551-15110

Unavailable

20

BRACKET, HEADLAMP RH | 2,3; TO 51530-15110

51530-15600

Unavailable

21

BRACKET, HEADLAMP LH | 2,3; TO 51540-15110

51540-15600

Unavailable

22

CUSHION, BRACKET UPPER | 2,3

51556-15010

Unavailable

23

COVER, BRACKET UPPER | 2,3

51555-15010

Unavailable

24

STEM, STEERING | 2,3

51410-15110

Unavailable

25

RACE, OUTER | 2

51621-08000

Unavailable

26

WASHER, STEERING STEM | 2,3; 18x20x2.3

51356-11010

Unavailable

27

NUT, STEERING STEM | 2,3

51632-01600

Unavailable

28

LOCK WASHER, STEM | 2,3; 26x34x2.3

51641-08010

Unavailable

29

CLIP, METER CABLE | 2,3

51453-30010

Unavailable

30

BOLT, INNER | 2; 10x36

51451-15110

Unavailable

30

BOLT, INNER | 2,3; TO 51451-15113

51451-15111

Unavailable

31

LOCK WASHER | 2,3 This part replaces 08321-21108.

08321-01107

$1.84

32

CLIP, BRAKE CABLE | 2,3

51453-03010

$5.50

33

SCREW | 2,3 This part replaces 02112-06108.

02112-06107

$1.49

34

LOCK WASHER | 2,3 This part replaces 08321-21058.

08321-0105A

$1.84

35

HEAD, STEERING STEM | 2,3

51310-15110

Unavailable

36

BUSHING | 2,3

51330-15010

Unavailable

37

NUT | 2,3 This part replaces 08312-11188.

08310-0018A

$3.30

38

BOLT, FORK UPPER | 2,3

51351-11011

Unavailable

39

O RING | 2,3; 1D:8.8, D:2.4

51181-11010

Unavailable

40

WASHER, FORK UPPER | 2,3; 14x30x2.3

51354-11010

Unavailable

41

SCREW | 2,3 This part replaces 02112-06108.

02112-06107

$1.49

42

LOCK WASHER | 2,3 This part replaces 08321-21068.

08321-01067

$2.13

43

NUT | 2,3 This part replaces 08313-11107.

08313-10107

$2.50
