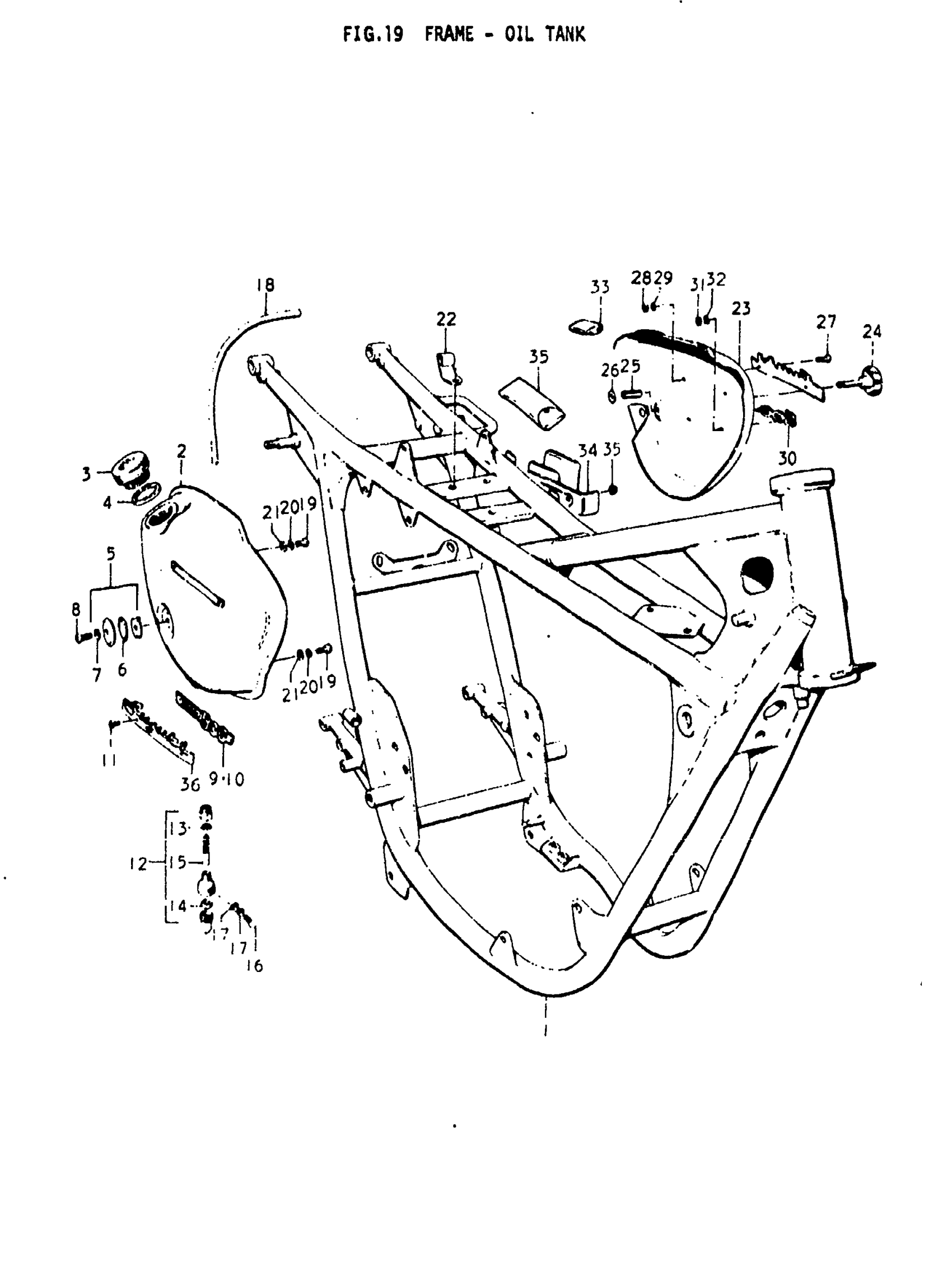

Suzuki T500-1 (1970) FRAME - OIL TANK Diagram

#

Description
Price

1

FRAME | 1

41100-15002-019

Unavailable

1

FRAME | 2,3; TO 41100-15102-019

41100-15100-019

Unavailable

2

NO DESCRIPTION AVAILABLE | 1; PRIMARY PAINTED This part replaces 44610-15001.

44610-15001-019

Unavailable

2

TANK, OIL | 2

44610-15101-138

Unavailable

2

TANK, OIL | 2

44610-15101-158

Unavailable

2

TANK, OIL | 3

44610-15101-156

Unavailable

2

TANK, OIL | 3

44610-15101-164

Unavailable

3

CAP, OIL TANK | 1,2,3

44651-11040

$15.05

4

GASKET,OIL TANK | 1,2,3 This part replaces 44661-11000.

44661-11001

$3.66

5

LENS SET, OIL INSPECTION | 1,2,3; Includes Item(s) 6 - 7

44640-11843

Unavailable

6

O RING | 1,2,3

09280-23001

Unavailable

7

GASKET | 1,2,3

09168-05001

$1.98

8

SCREW | 1,2,3 This part replaces 02112-05168.

02112-05167

$1.97

9

EMBLEM, FRAME COVER | 1

68131-11001

Unavailable

10

EMBLEM, FRAME COVER | 2; SUZUKI 500 This part replaces 68131-15100.

68131-15101

Unavailable

10

EMBLEM, FRAME COVER | 3; SUZUKI 500

68131-15101

Unavailable

11

SCREW | 1,2,3 This part replaces 02111-03048.

02112-03047

$2.15

12

OUTLET ASSY, OIL TANK | 1,2,3; Includes Item(s) 13 - 17

44700-11827

Unavailable

13

GASKET | 1,2,3

44733-11030

$2.28

14

GASKET, FILTER CUP | 1,2,3; FROM 44346-02030

44346-05110

Unavailable

15

FILTER | 1,2,3

44720-11030

$5.38

16

UNION BOLT | 1,2,3

09360-06003

$3.76

17

GASKET | 1,2,3 This part replaces 09168-06002.

09168-06004

$1.49

18

HOSE (5X8X2000) | 1,2,3; L:200 This part replaces 09344-05005.

09351-50803-00B

$9.10

19

BOLT | 1,2,3 This part replaces 01112-06128.

01500-06127

$1.97

20

LOCK WASHER | 1,2,3 This part replaces 08321-21068.

08321-01067

$2.13

21

WASHER | 1,2,3 This part replaces 08322-21058.

08322-01057

$2.13

22

CLAMP, BREATHER HOSE | 1,2,3

09403-08301

Unavailable

23

COVER, FRAME LH | 1; PRIMARY PAINTED

47210-15000

Unavailable

23

NO DESCRIPTION AVAILABLE | 2; PRIMARY PAINTED This part replaces 47211-15100.

47211-15100-019

Unavailable

23

COVER, FRAME LH | 2

47211-15100-138

Unavailable

23

COVER, FRAME LH | 2

47211-15100-158

Unavailable

23

COVER, FRAME LH | 3

47211-15100-156

Unavailable

23

COVER, FRAME LH | 3

47211-15100-164

Unavailable

24

KNOB, FRAME COVER | 1

47230-10000

Unavailable

24

KNOB, FRAME COVER | 2,3

47230-01000

Unavailable

25

SPACER, FRAME COVER KNOB | 1,2,3; L:23

09180-08024

Unavailable

26

STOPPER, FRAME COVER KNOB | 1,2,3

09152-06001

$1.75

27

SCREW | 1,2,3 This part replaces 02111-03087.

02112-0308A

$1.80

28

NUT | 1,2,3 This part replaces 08311-11038.

08310-0003B

$2.83

29

WASHER,LOCK | 1,2,3 This part replaces 08321-21038.

09162-03001

$1.49

30

EMBLEM, FRAME COVER LH | 1

68140-15001

Unavailable

31

NUT | 1 This part replaces 08311-11048.

08310-00047

$2.23

32

LOCK WASHER | 1 This part replaces 08321-21048.

08321-0104A

$1.84

33

CUSHION, FRAME COVER LH | 1,2,3

09329-02001

Unavailable

34

HOLDER, TOOL | 2,3; TO 41550-15101

41550-15100

Unavailable

35

NUT, LICENSE HOLDER | 2,3 This part replaces 08313-11067.

08313-10067

$1.84

36

TOOL SET | 1,2,3

09800-00123

Unavailable
