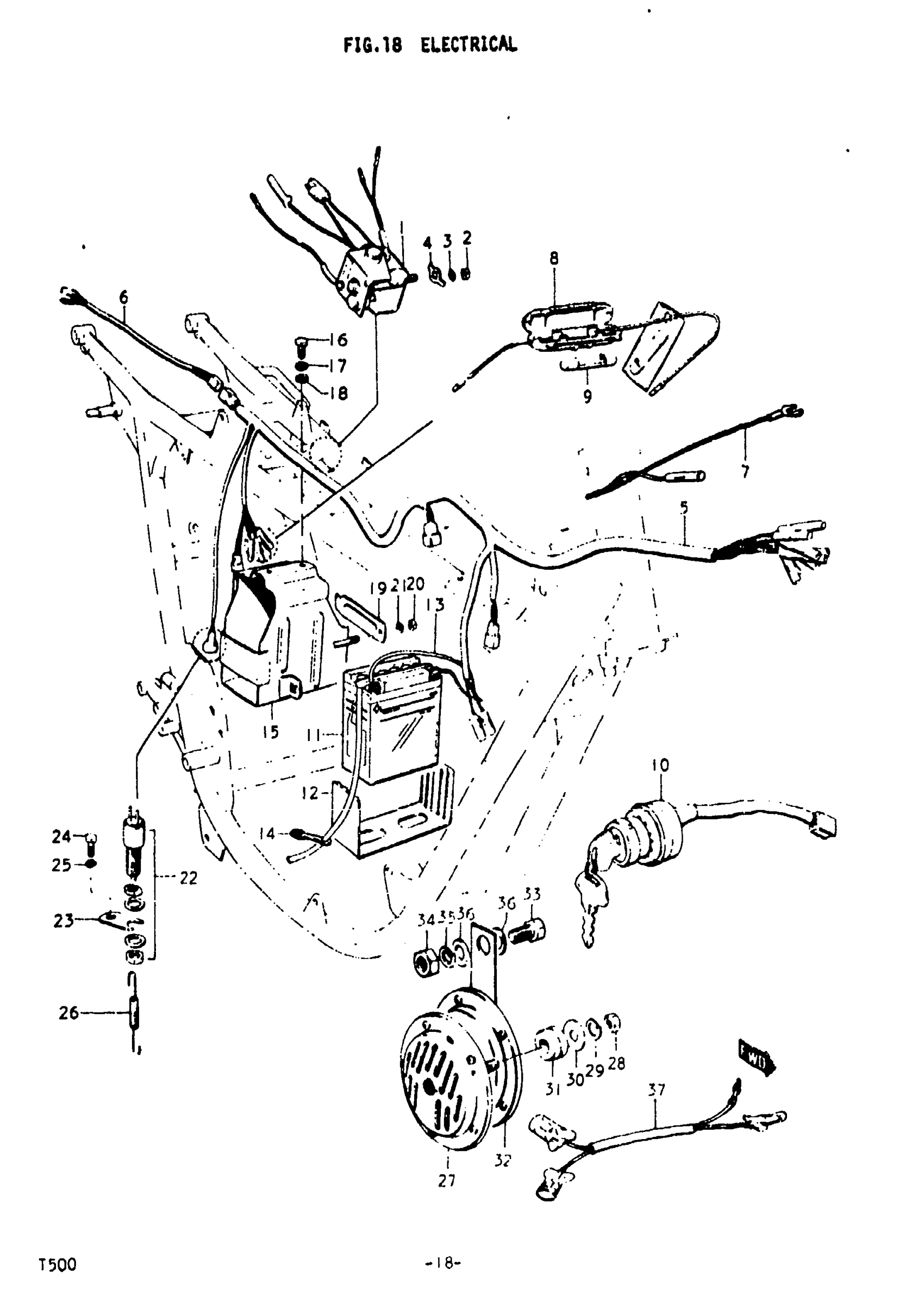

Suzuki T500-1 (1970) ELECTRICAL Diagram

#

Description
Price

1

RECTIFIER ASSY | 1,2; TO 32800-18521 This part replaces 32800-18520.

32800-18521

Unavailable

1

RECTIFIER ASSY | 3

32800-18521

Unavailable

2

NUT | 1,2,3 This part replaces 08311-11058.

08310-00057

$1.84

3

LOCK WASHER | 1,2,3 This part replaces 08321-21058.

08321-0105A

$1.84

4

WASHER, RECTLFLER | 1,2,3

09169-05001

Unavailable

5

WIRING HARNESS (1) | 1

36610-15000

Unavailable

5

WIRING HARNESS (1) | 2,3

36610-15102

Unavailable

6

WIRING HARNESS (2) | 1,2; TO 36620-15900

36620-15000

Unavailable

6

WIRING HARNESS (2) | 3

36620-15900

Unavailable

7

CORD, HANDLEBAR EARTH | 1,2,3

36810-15000

Unavailable

8

FUSE CASE ASSY | 1,2,3; Includes Item(s) 9 This part replaces 36740-15010.

36740-15011

$9.38

9

FUSE | 1,2,3; 15A

09481-15001

$2.06

10

SWITCH ASSY, IGNITION | 1,2,3

37110-15010

Unavailable

11

BATTERY | 1,2,3; 12V, 7AH TO 33610-33120

33610-01320

Unavailable

12

PROTECTOR, BATTERY | 1,2,3

33651-15000

Unavailable

13

CABLE, BATTERY | 1,2,3

36860-15020

Unavailable

14

CLAMP, BETTERY EXHAUST PIPE | 1,2,3; TO 09404-07702 This part replaces 09401-00001.

09404-07702

Unavailable

15

HOLDER, BATTERY | 1,2,3 This part replaces 41540-15001.

41540-15002

Unavailable

16

BOLT | 1,2,3 This part replaces 01122-08258.

01500-08257

$2.50

17

.LOCK WASHER | 1,2,3 This part replaces 08321-21088.

08321-01087

$2.13

18

WASHER (8.5X18X2.0) | 1,2,3 This part replaces 09160-08013.

09160-08120

$2.19

19

PLATE, BATTERY | 1,2,3; TO 41550-15101

41561-15000

Unavailable

20

.NUT | 1,2,3 This part replaces 08311-11068.

08310-00067

$2.13

21

LOCK WASHER | 1,2,3 This part replaces 08321-21058.

08321-0105A

$1.84

22

SWITCH ASSY, BRAKE LAMP | 1,2,3

37610-53011

$30.75

23

BRACKET, LAMP SWITCH | 1,2,3

37752-15001

Unavailable

24

BOLT | 1,2,3 This part replaces 01112-06128.

01500-06127

$1.97

25

LOCK WASHER | 1,2,3 This part replaces 08321-21058.

08321-0105A

$1.84

26

SPRING, LAMP SWITCH | 1,2,3

09443-06012

$3.16

27

HORN | 1

38500-15030

Unavailable

28

NUT | 1 This part replaces 08312-11088.

08310-00087

$2.13

29

.LOCK WASHER | 1 This part replaces 08321-21088.

08321-01087

$2.13

30

WASHER | 1 This part replaces 09160-08014.

09160-08081

$2.56

31

CUSHION | 1

09320-12007

Unavailable

32

HORN | 2,3; TO 38500-15641

38500-15640

Unavailable

33

PLUG, DRAIN | 2,3 This part replaces 01122-08168.

01500-0816B

$2.50

34

NUT | 2,3 This part replaces 08312-11088.

08310-00087

$2.13

35

.LOCK WASHER | 2,3 This part replaces 08321-21088.

08321-01087

$2.13

36

WASHER | 2,3 This part replaces 08322-21088.

08322-01087

$2.13

37

LEAD WIRE, HORN | 2,3

35870-08030

Unavailable
