1970 Suzuki T500-1 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1970 Suzuki T500-1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

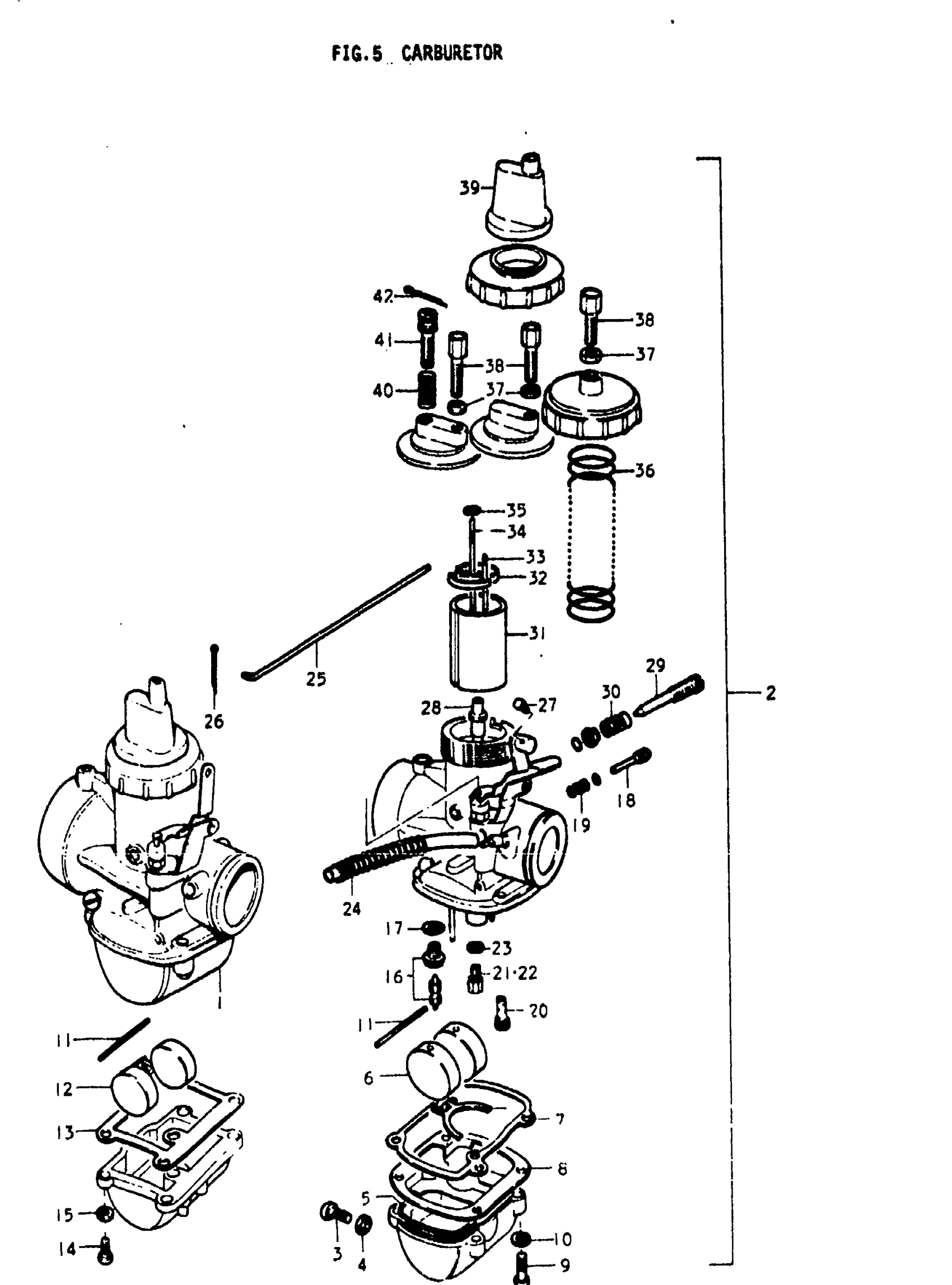

1970 Suzuki T500-1 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY, RH | 1,2,3; TO 13201-15606 STAMPED 15604,*1 This part replaces 13201-15604.

13201-15606

—
Out of stock

1

CARBURETOR ASSY, RH | 1,2,3; STAMPED 15606

13201-15606

—
Out of stock

2

CARBURETOR ASSY, LH | 1,2,3; TO 13202-15606 This part replaces 13202-15604.

13202-15606

—
Out of stock

2

CARBURETOR ASSY, LH | 1,2,3; STAMPED 15606; Includes Item(s) 3 - 42

13202-15606

—
Out of stock

3

PLUG, DRAIN | 1,2,3

13247-05010

2
Out of stock

4

GASKET, DRAIN PLUG | 1,2,3

13249-05010

2
Out of stock

5

GASKET, FLOAT CHAMBER | 1

13251-15010

—
Out of stock

6

FLOAT | 1

13252-15010

—
Out of stock

7

GASKET, FLOAT CHAMBER | 1

13258-15010

—
Out of stock

8

PLATE, FLOAT CHAMBER | 1

13259-15010

—
Out of stock

9

SCREW | 1 This part replaces 02112-05202.

02112-05207

8
Out of stock

10

LOCK WASHER | 1 This part replaces 08321-21058.

08321-0105A

8
Out of stock

11

.PIN, FLOAT | 1,2,3

13254-01010

2

$4.80

In stock

12

FLOAT | 2,3

13252-18010

2
Out of stock

13

GASKET, FLOAT CHAMBER | 2 This part replaces 13251-18010.

13251-33110

2
Out of stock

13

GASKET, FLOAT CHAMBER | 3

13251-33110

2
Out of stock

14

8

$1.34

In stock

15

LOCK WASHER | 2,3 This part replaces 08321-21048.

08321-0104A

8
Out of stock

16

VALVE ASSY, NEEDLE | 1

13370-15010

2
Out of stock

16

VALVE,NEEDLE | 2,3 This part replaces 13370-18010.

13370-41500

2
Out of stock

17

GASKET, VALVE SEAT | 1,2,3 This part replaces 13392-15010.

13392-16600

2
Out of stock

18

SCREW, PILOT AIR | 1,2,3

13269-15010

2
Out of stock

19

SPRING, AIR SCREW | 1,2,3

13268-01010

2
Out of stock

20

JET, PILOT | 1; #25

09492-25001

2
Out of stock

20

JET, PILOT | 1; #35

09492-35001

2
Out of stock

20

JET, PILOT (30) | 2,3; #30 This part replaces 09492-30003.

09492-30006

2
Out of stock

21

JET, MAIN | 1; #410

09491-82001

—
Out of stock

21

JET, MAIN (#360) | 1; #360; OPT This part replaces 09491-72001.

09491-72011

2
Out of stock

21

JET, MAIN | 1; #370; OPT

09491-74001

—
Out of stock

21

JET, MAIN (#380) | 1; #380; OPT This part replaces 09491-76001.

09491-76003

2
Out of stock

21

JET, MAIN (390) | 1; #390; OPT This part replaces 09491-78001.

09491-78005

2
Out of stock

21

JET, MAIN | 1; #400; OPT

09491-80004

2
Out of stock

21

JET, MAIN | 1; #420; OPT

09491-84001

—
Out of stock

21

JET, MAIN | 1; #430; OPT

09491-86001

2
Out of stock

21

JET, MAIN | 1; #440; OPT

09491-88001

2
Out of stock

22

NO DESCRIPTION AVAILABLE | 2,3; #150 This part replaces 09491-30004.

09491-30016

2
Out of stock

22

JET, MAIN | 2,3; #145; OPT

09491-29001

2
Out of stock

22

JET, MAIN | 2,3; #147.5; OPT

09491-28004

—
Out of stock

22

JET,MAIN,150 | 2 This part replaces 09491-30003.

09491-30017

2
Out of stock

23

2

$2.92

In stock

24

TUBE, BOOST | 1,2; L:180

44390-15601

—
Out of stock

24

HOSE(4.5X8.5X60 | 3 This part replaces 13683-31610.

09355-45001-600

1
Out of stock

25

ROD, STARTER | 1,2,3

13425-15010

1
Out of stock

26

PIN | 1,2,3 This part replaces 04111-12108.

04111-1210A

1
Out of stock

27

BOLT, STARTER ROD | 1,2,3

13429-15010

1
Out of stock

28

JET, NEEDLE | 1; Q-5

09494-00032

2
Out of stock

28

JET, NEEDLE | 2,3; P-42,3; P-4

09494-00051

1
Out of stock

28

JET, NEEDLE | 2,3; P-52,3; P-5

09494-00056

1
Out of stock

28

JET, NEEDLE | 2,3; P-8, OPT

09494-00044

2
Out of stock

29

SCREW, THROTTLE STOP | 2,3 This part replaces 13267-15110.

13267-40230

2
Out of stock

30

2

$6.15

In stock

31

VALVE, THROTTLE | 1; CA:2.5

13551-15010

—
Out of stock

31

VALVE, THROTTLE RH | 2,3; CA:2.5

13551-31010

1
Out of stock

31

VALVE, THROTTLE LH | 2,3

13561-31010

1
Out of stock

32

SEAT, SPRING | 1,2,3

13581-15010

2
Out of stock

33

ROD, THROTTLE STOP | 1

13296-15010

2
Out of stock

34

NEEDLE, JET | 1; 50DP2

13383-15010

2
Out of stock

34

NEEDLE, JET | 2,3; 5EP8

13383-15600

—
Out of stock

35

CLIP, NEEDLE | 1,2,3

13394-10010

2

$4.76

In stock

36

SPRING, THROTTLE VALVE | 1,2,3

13573-31010

—
Out of stock

37

NUT, CABLE ADJUSTER | 1,2,3

13661-03010

2
Out of stock

38

ADJUSTER | 1,2,3 This part replaces 13577-03010.

13577-48110

2
Out of stock

39

BOOT, CABLE ADJUSTER | 1,2,3

13681-11010

2
Out of stock

40

2

$6.15

In stock

41

SCREW, THROTTLE STOP | 1

13267-09210

2
Out of stock

42

PIN | 1 This part replaces 04111-12108.

04111-1210A

2
Out of stock
