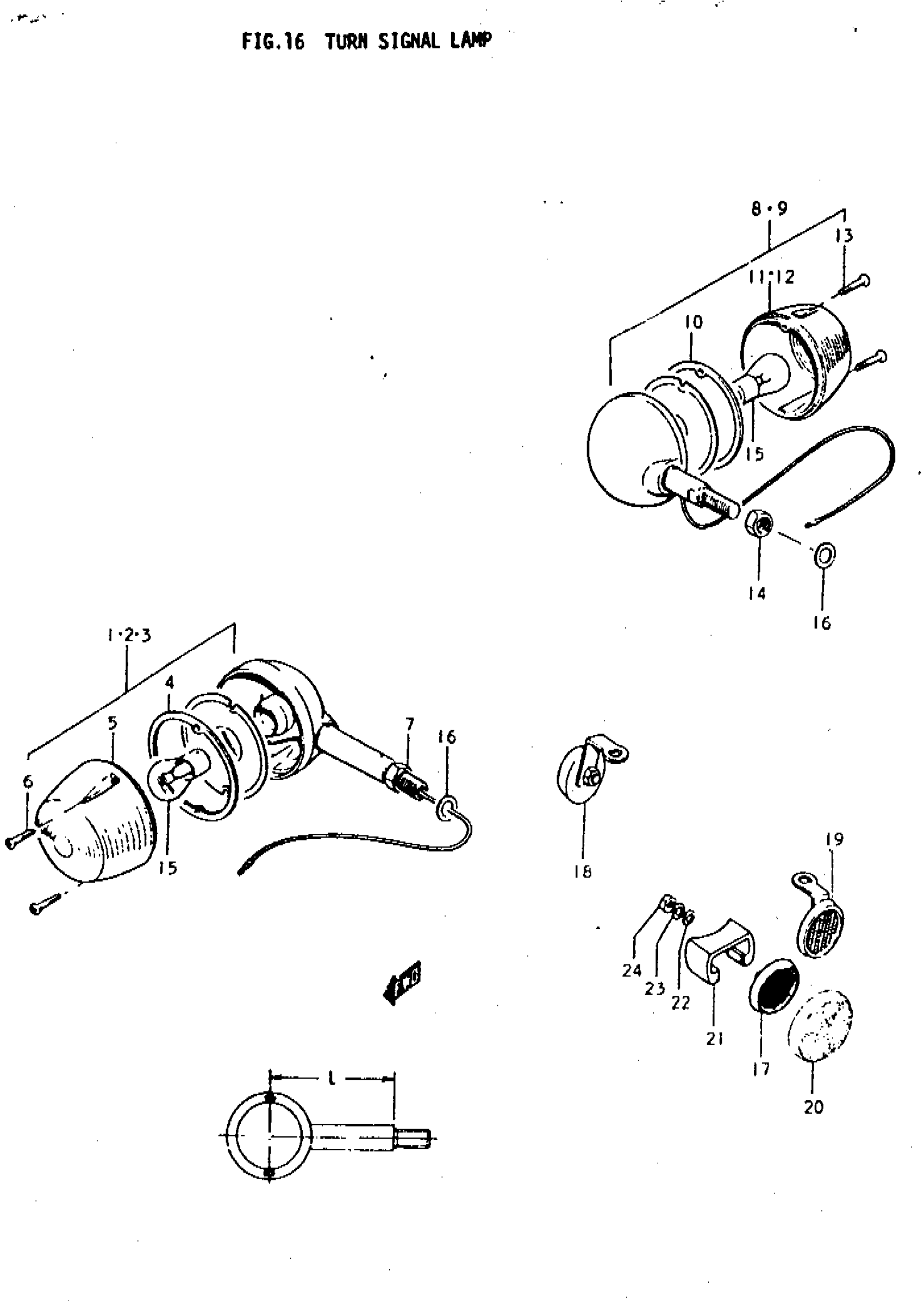

Suzuki T3501 (1972) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | 1; L:60

35601-15610-999

Unavailable

2

LAMP ASSY, FRONT TURN SIGNAL | 2; L:102

35601-18511-999

Unavailable

3

LAMP ASSY, FRONT TURN SIGNAL | R,J; L:87 TO 35601-18620; Includes Item(s) 4 - 7

35601-18620-999

Unavailable

4

GASKET, LENS

35613-03610

$13.34

5

LENS

35612-12611

$12.50

6

SCREW This part replaces 02131-03167.

02132-03167

$1.49

7

NUT This part replaces 08312-31107.

08310-00107

$2.19

8

LAMP ASSY, REAR TURN SIGNAL | 1

35603-16411-999

Unavailable

9

LAMP ASSY,RR TR | 2,R,J; TO 35603-18620; Includes Item(s) 10 - 14 This part replaces 35603-18610-999.

35603-27670-999

Unavailable

10

GASKET, LONS

35613-03610

$13.34

11

LENS | 1

35612-12611

$12.50

12

LENS | 2,R,J; RED

35652-18700

Unavailable

13

SCREW This part replaces 02131-03167.

02132-03167

$1.49

14

NUT This part replaces 08312-31107.

08310-00107

$2.19

15

BULB, TURN SIGNAL LAMP | 12V, 32CP US#1073

09471-12006

$3.98

16

WASHER This part replaces 08322-21108.

08322-01107

$2.15

17

REFLEX REFLECTOR, FRONT | 1,R

35950-18612

Unavailable

18

REFLEX REFLECTOR, RH FRONT | 2

35950-18623

Unavailable

19

REFLEX REFLECTOR, LH FRONT | 2

35960-18623

Unavailable

20

REFLEX REFLECTOR FRONT | J This part replaces 35950-31010.

35950-49080

$17.24

21

SPACER, ROFLEX REFLECTOR | R,J

35995-18400

Unavailable

22

WASHER | R,J This part replaces 08322-11058.

08322-01057

$2.13

23

LOCK WASHER | 1,R,J This part replaces 08321-21058.

08321-0105A

$1.84

24

NUT | 1,R,J This part replaces 08311-11058.

08310-00057

$1.84
