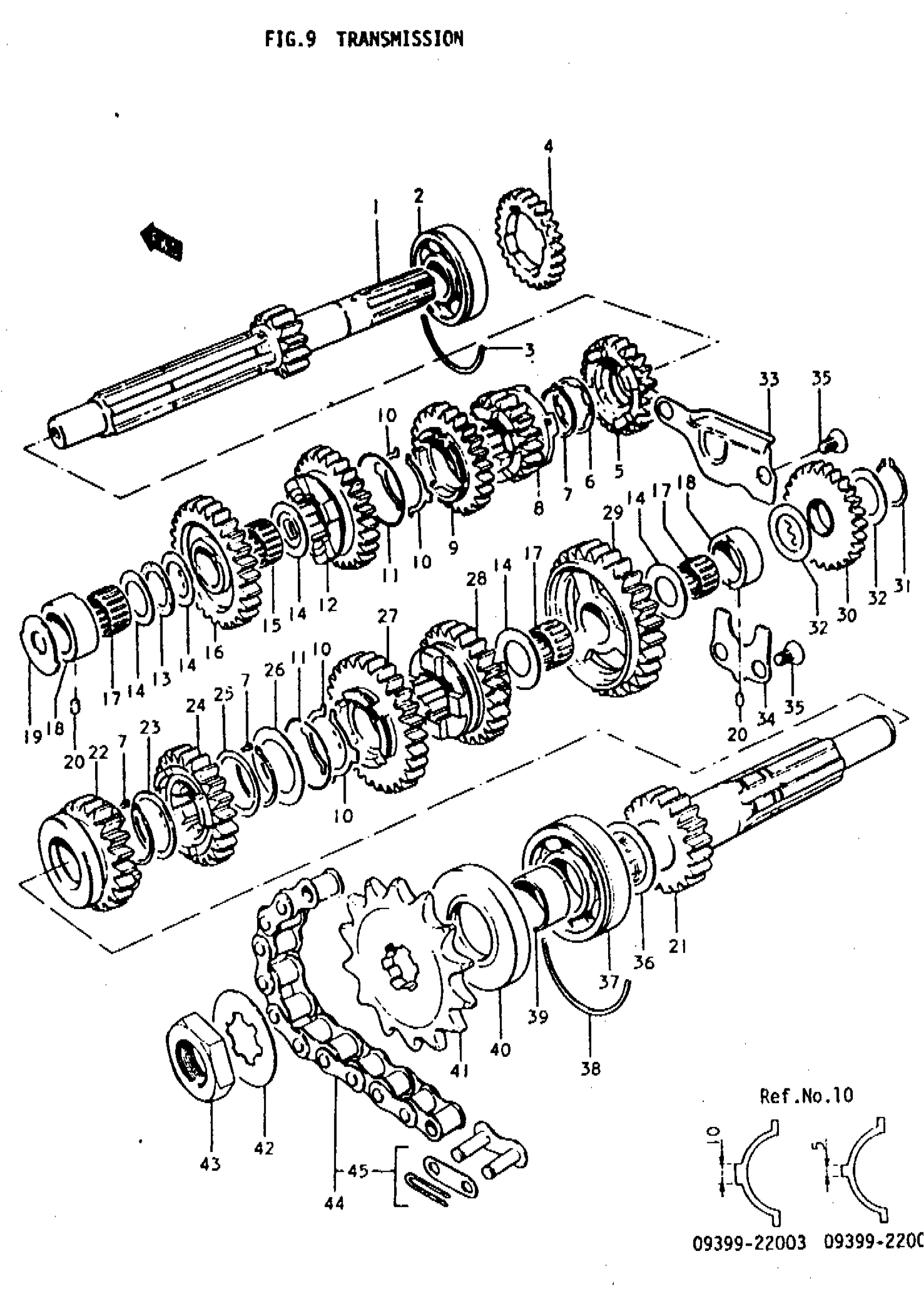

Suzuki T3501 (1972) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER | NT:12

24121-18001

Unavailable

2

BEARING, COUNTER SHAFT | 20x52x15

09262-20025

Unavailable

3

C RING, COUNTER SHAFT BEARING

09390-52001

Unavailable

4

GEAR, KICK STARTER DRIVEN | NT:24

26281-11000

Unavailable

5

GEAR, 3RD DRIVE | NT:19

24231-18001

Unavailable

6

LOCK WASHER, 3RD DRIVE GEAR | OD:32, T:1

09167-25004

Unavailable

7

SNAP RING

09380-25003

$3.04

8

GEAR, 2ND DRIVE | NT:16

24221-18001

Unavailable

9

GEAR, 4TH DRIVE | NT:21

24241-18003

Unavailable

10

RING, GEAR KNOCK | 2,R,J

09399-22003

Unavailable

10

RING, GEAR KNOCK | 1,2; ~F.NO.17300

09399-22002

Unavailable

11

CIRCLIP, TRANSMISSION GEAR

09380-38001

Unavailable

12

GEAR, 5TH DRIVE | NT:23 TO 24251-18003

24251-18002

Unavailable

13

WASHER | 17x29x1 This part replaces 09160-17005.

09160-17022

$3.23

14

WASHER, 2ND DRIVE GEAR | (3~5); 17x29x1 FROM 09160-17001 This part replaces 08211-17301.

09181-17223

$2.96

14

THRUST WASHER, TOP GEAR | (0~1); 17x29x1.5 FROM 09160-17003

08211-17282

$2.70

14

THRUST WASHER, TOP GEAR | (0~1); 17x29x1.2

09160-17007

Unavailable

15

BEARING, TOP GEAR | 17x21x12.8

09263-17004

$12.03

16

GEAR, TOP DRIVE | NT:24 TO 24261-18002

24261-18001

Unavailable

17

BEARING, TRANSMISSION SHAFT | 17x21x12.8

09263-17001

$21.82

18

BUSHING, TRANSMISSION SHAFT | 21x30x13

09300-21001

Unavailable

19

HOLDER, COUNTER SHAFT

24741-10000

Unavailable

20

DOWEL PIN

04221-04069

$2.12

21

DRIVESHAFT | NT:17 TO 24151-18002 This part replaces 24131-18001.

24131-18002

Unavailable

22

GEAR, 5TH DRIVEN | NT:18 TO 24351-18004

24351-18003

Unavailable

23

THRUST WASHER

08211-25321

$3.27

24

GEAR, 4TH DRIVEN | NT:19

24341-18003

Unavailable

25

THRUST WASHER, 4TH DRIVEN GEAR | 25x35x1.5

09160-25007

Unavailable

26

WASHER, RR FINAL DRIVE This part replaces 08211-25381.

09181-25223

$3.21

27

GEAR, 2ND DRIVEN | NT:24

24320-18002

Unavailable

28

GEAR, 3RD DRIVEN | NT:22 FROM 24331-18001

24331-18002

Unavailable

29

GEAR, LOW DRIVEN | NT:28

24311-18000

Unavailable

30

GEAR, KICK STARTER IDLE | NT:26

26260-11000

Unavailable

31

CIRCLIP, STARTER IDLE GEAR

09380-17001

$1.98

32

WASHER, 2ND DRIVE GEAR | 17x21x12.8 FROM 09160-17001 This part replaces 08211-17301.

09181-17223

$2.96

33

CUP, OIL RESERVOIR

24871-11001

Unavailable

34

HOLDER, DRIVE SHAFT

24751-11000

Unavailable

35

SCREW

02121-06128

Unavailable

36

THRUST WASHER

08211-22341

$3.85

37

BEARING, DRIVE SHAFT | 22x56x16

09262-22005

Unavailable

38

C RING, DRIVE SHAFT BEARING

09390-54001

Unavailable

39

SPACER, ENGINE SPROCKET | 22x27x13.4

09180-22003

Unavailable

40

OIL SEAL, DRIVE SHAFT | 27x56x8

09283-27003

Unavailable

41

SPROCKET, ENGINE | NT:14

27511-18000

Unavailable

41

SPROCKET, ENGINE | NT:13, OPT

27511-18700

Unavailable

41

SPROCKET, ENGINE | NT:15, OPT

27511-18710

Unavailable

42

WASHER, ENGINE SPROCKET | OD:38, T:1.2 FROM 09167-22004

09167-22005

$2.11

43

NUT, ENGINE SPROCKET

09140-22003

Unavailable

44

CHAIN ASSY, DRIVE | AVAILABLE @x98@; Includes Item(s) 45 This part replaces 27600-11210.

27600-16410

Unavailable

45

JOINT, CHAIN | TO 27620-30110 This part replaces 27620-18610.

27620-30110

Unavailable
