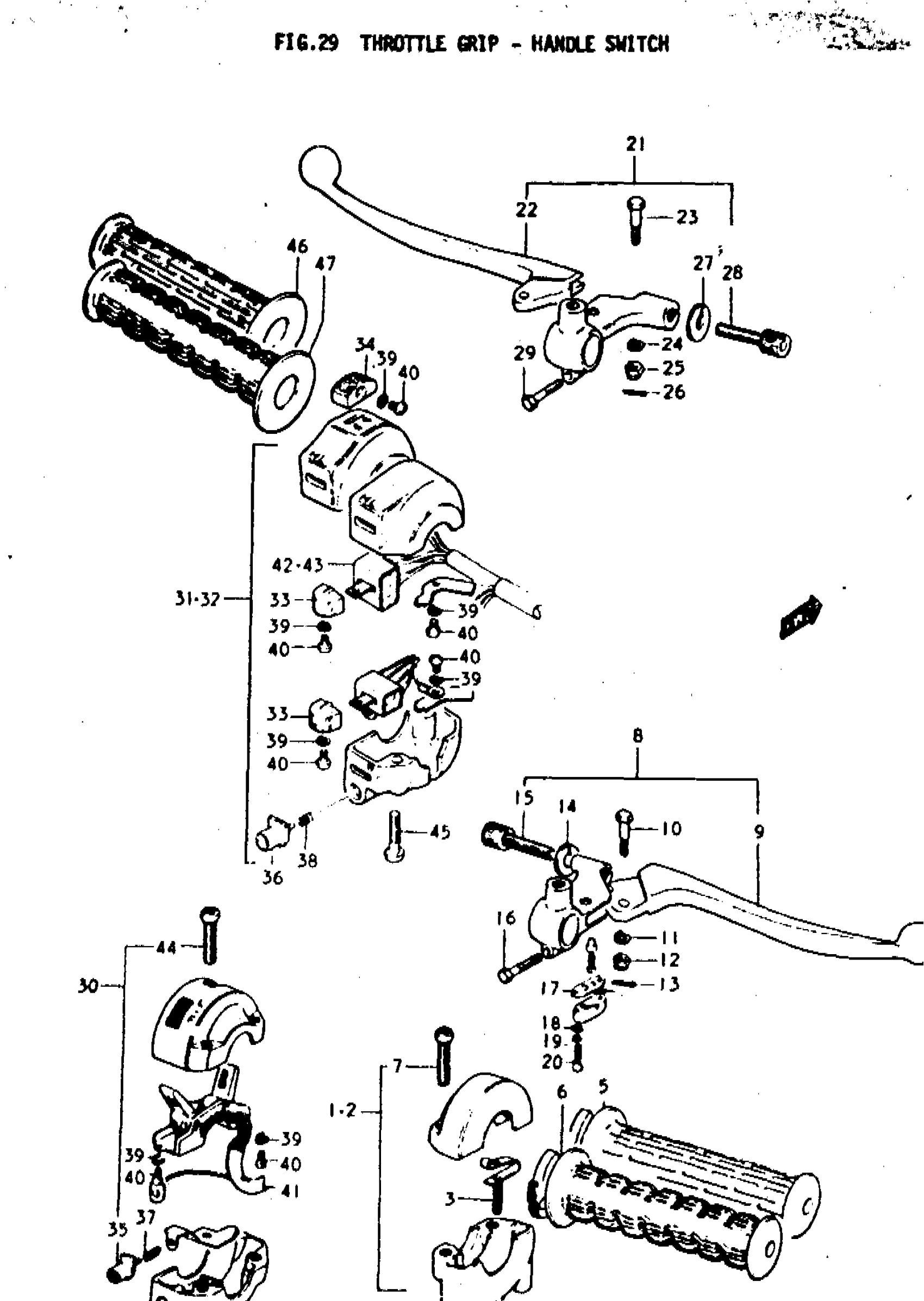

Suzuki T3501 (1972) THROTTLE GRIP - HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | 1,2; FROM 57100-11012 FROM 57100-15110

57100-15111

Unavailable

2

GRIP ASSY, THROTTLE | R,J; Includes Item(s) 3 - 7

57100-15111

Unavailable

3

ADJUSTER, THROTTLE GRIP | 1

57170-11010

Unavailable

3

ADJUSTER, THROTTLE GRIP | 2,R,J

57170-11011

Unavailable

4

NUT This part replaces 08311-11058.

08310-00057

$1.84

5

GRIP, THROTTLE | 1

57110-11011

Unavailable

6

GRIP, THROTTLE | 2,R,J; TO 57110-31012 This part replaces 57110-15110.

57110-31012

Unavailable

7

SCREW | 1,2

02111-05208

Unavailable

7

SCREW | R,J

02111-05258

Unavailable

8

LEVER ASSY, BRAKE | FROM 57300-15110 FROM 57300-16600; Includes Item(s) 9 - 20

57300-18610

Unavailable

9

LEVER, BRAKE

57420-18600

Unavailable

10

BOLT This part replaces 57431-11010.

57431-11013

$6.31

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

NUT, LEVER

57433-11010

$5.64

13

PIN This part replaces 04111-16158.

04111-1620A

$1.49

14

NUT, CABLE ADJUSTING

57442-11010

$2.79

15

ADJUSTOR, CABLE

57441-11010

$5.62

16

BOLT | 6x20 FROM 57451-11010 This part replaces 01112-06208.

01500-06207

$2.28

17

WIRING HARNESS | 1 This part replaces 57470-18600.

57470-33010

Unavailable

17

WIRING HARNESS, BRAKE LEVER | 2

57470-16600

Unavailable

17

WIRING HARNESS, BRAKE LEVER | R,J

57470-15110

Unavailable

18

WASHER This part replaces 08322-21038.

08322-01037

$1.93

19

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

20

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

21

LEVER ASSY, CLUTCH | TO 57500-18610; Includes Item(s) 22 - 29

57500-18010

Unavailable

22

LEVER, CLUTCH | TO 57620-31010

57620-11010

Unavailable

23

BOLT This part replaces 57431-11010.

57431-11013

$6.31

24

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

25

NUT, LEVER

57433-11010

$5.64

26

PIN This part replaces 04111-16158.

04111-1620A

$1.49

27

NUT, CABLE ADJUSTING

57442-11010

$2.79

28

ADJUSTER

57441-11010

$5.62

29

BOLT | FROM 57451-11010 This part replaces 01112-06208.

01500-06207

$2.28

30

SWITCH ASSY, HANDLE | 1

57700-11631

Unavailable

30

SWITCH ASSY, HANDLE | 2

57700-18600

Unavailable

31

NO DESCRIPTION AVAILABLE | R; TO 57700-18640 This part replaces 57700-18610.

57700-28701

Unavailable

32

SWITCH ASSY, HANDLE | R,J; TO 57700-78701; Includes Item(s) 33 - 45

57700-18640

Unavailable

33

KNOB, SWITCH | R,J

57742-26010

Unavailable

34

KNOB, SWITCH | J; FROM 57712-33010

57712-28011

Unavailable

35

BUTTON, HORN | 1,2

57750-11010

Unavailable

36

BUTTON, HORN | R,J

57850-31010

Unavailable

37

SPRING, HORN BUTTON | 1,2

57761-11010

Unavailable

38

SPRING, HORN BUTTON | R,J

57761-26010

Unavailable

39

WASHER,LOCK | 1,2RJ This part replaces 08321-21038.

09162-03001

$1.49

40

SCREW | 1,2RJ

02111-03068

Unavailable

41

WIRING HARNESS, SWITCH | 1

57720-11630

Unavailable

41

WIRING HARNESS, SWITCH | 2

57720-18600

Unavailable

42

WIRING HARNESS, SWITCH | R

57720-18610

Unavailable

43

WIRING HARNESS, SWITCH | J

57720-18640

Unavailable

44

SCREW | 1,2

02111-05208

Unavailable

45

SCREW | R,J

09125-05109

Unavailable

46

GRIP, LH | 1; FROM 57211-11011

57211-15110

Unavailable

47

GRIP, LH | 2,R,J

57211-15110

Unavailable
