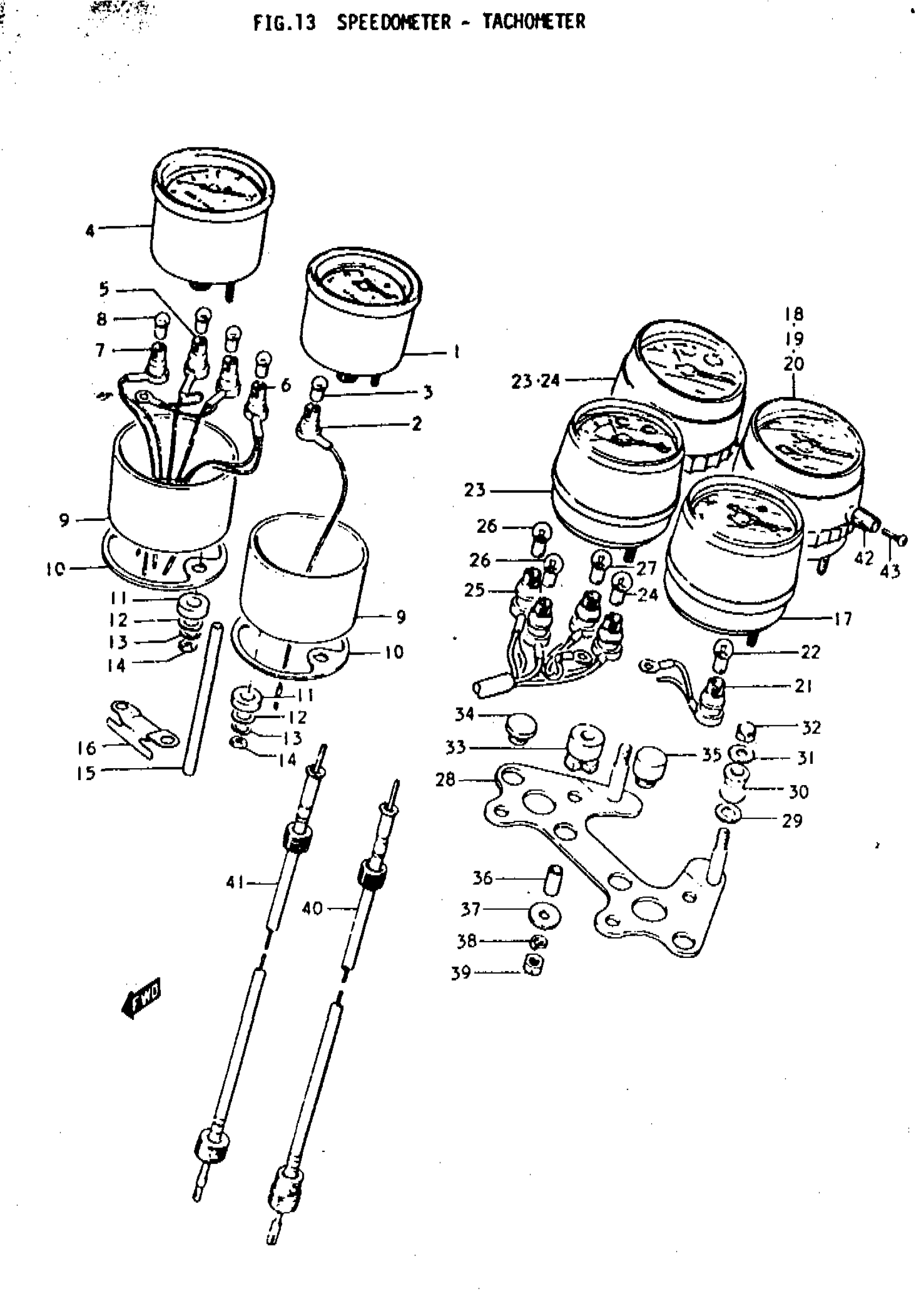

Suzuki T3501 (1972) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSY | 1; Includes Item(s) 2

34100-15620-999

Unavailable

2

SOCKET, PILOT BULB | 1; FROM 34173-15020

34173-15120

Unavailable

3

BULB, SPEEDOMETER | 1; 12V, 3.4W

09471-12001

$1.65

4

TACHOMETER ASSY | 1; Includes Item(s) 5 - 7

34200-18700-999

Unavailable

5

SOCKET, HIGH BEAM INDICATOR | 1

34173-15610

Unavailable

6

SOCKET, NEUTRAL | 1

34174-15020

Unavailable

7

SOCKET, TURN SIGNAL | 1

34175-15020

Unavailable

8

BULB, TACHOMETER | 1; 12V, 3.4W

09471-12001

$1.65

9

COVER, METER | 1; PRIMARY-PAINTED

34155-15001

Unavailable

10

CUSHION, METER COVER | 1

34955-15000

Unavailable

11

CUSHION | 1; 8x17x5 This part replaces 09320-08004.

09320-08010

$1.99

12

WASHER,5.5X18X1 | 1 This part replaces 09160-05006.

09160-05006-XC0

Unavailable

13

LOCK WASHER | 1 This part replaces 08321-21058.

08321-0105A

$1.84

14

NUT | 1 This part replaces 08311-11058.

08310-00057

$1.84

15

TUBE, LEAD CORD | 1

34182-15000

Unavailable

16

CLIP, CORD | 1

09403-00030

Unavailable

17

SPEEDOMETER ASSY | 2,R

34100-18610-999

Unavailable

18

SPEEDOMETER ASSY | 2,R

34100-18611-999

Unavailable

19

SPEEDOMETER ASSY | J; TO 34100-15633

34100-15633-999

Unavailable

20

SPEEDOMETER ASSY | J; Includes Item(s) 21 - 21

34100-15632-999

Unavailable

21

SOCKET, PILOT BULB | 2

34173-16600

Unavailable

21

SOCKET, PILOT BULB | R,J; TO 34173-18620

34173-15121

Unavailable

22

BULB | 2,R,J; 12V, 3.4W

09471-12001

$1.65

23

TACHOMETER ASSY | 2; TO 34200-18621-999

34200-18520-999

Unavailable

23

TACHOMETER ASSY | R; TO 34200-18421-999

34200-18660

Unavailable

24

TACHOMETER ASSY | J; Includes Item(s) 25 - 25

34200-18421-999

Unavailable

25

SOCKET COMP, BULB | 2

34270-16420

Unavailable

25

SOCKET COMP, BULB | R,J

34270-15120

Unavailable

26

BULB | 2; 12V, 3.4WR,J; 12V, 3.4W

09471-12001

$1.65

27

BULB | 2; 12V, 1.7WR,J; 12V, 1.7W

09471-12004

$2.69

28

BRACKET, METER | 2,R; TO 34950-18611

34950-18520

Unavailable

28

BRACKET, METER | J

34950-18611

Unavailable

29

WASHER | 2,R,J This part replaces 09160-06006.

09160-06084

$1.78

30

CUSHION, METER BRACKET | 2,R,J

34956-15100

$3.71

31

WASHER | 2,R,J This part replaces 08322-21088.

08322-01087

$2.13

32

NUT, LICENSE HOLDER | 2,R,J This part replaces 08313-11068.

08313-10067

$1.84

33

CUSHION, METER A | 2,R,J

34955-16420

$4.43

34

CUSHION, METER B | 2R,J

34956-16420

Unavailable

35

CUSHION, METER C | 2R,J

34957-16420

Unavailable

36

SPACER, METER CUSHION | 2,R,J

34972-16420

Unavailable

37

WASHER | 2,R,J This part replaces 09160-06006.

09160-06084

$1.78

38

LOCK WASHER | 2,R,J This part replaces 08321-21068.

08321-01067

$2.13

39

.NUT | 2,R,J This part replaces 08311-11068.

08310-00067

$2.13

40

CABLE,SPEEDOMET | 1,R,J; FROM 34910-18530 TO 34910-30031 L:860 This part replaces 34910-18230.

34910-18991

$31.50

41

CABLE ASSY,TACH | 1,2; L:1010 TO 34940-18430 This part replaces 34940-18030.

34940-36032

Unavailable

41

CABLE ASSY,TACH | R,J; L:1050 TO 34940-56030 This part replaces 34940-18430.

34940-36032

Unavailable

42

KNOB, TRIPMETER | 2,R,J

34980-30610

Unavailable

43

SCREW (2X6) | 2,R,J This part replaces 34981-33600.

09139-02003

$1.65
